HPE 841QSFP28 – network adapter – PCIe 3.0 x16 – 100Gb Ethernet / Infiniband EDR QSFP28 x 2

Add to Wishlist

HPE 841QSFP28 – Network adapter – PCIe 3.0 x16 low profile – 100Gb Ethernet / Infiniband EDR QSFP28 x 2 – for HPE J2000; Apollo 4200 Gen10

AED14,499.00

Add to Wishlist

The HPE InfiniBand adapters are supported on the HPE ProLiant XL and HPE ProLiant DL Gen9 and Gen10 servers. They deliver up to 100Gbps bandwidth and a sub-microsecond low latency for demanding high performance computing (HPC) workloads. The adapter includes multiple offload engines that speed communications by delivering a low CPU overhead for increasing throughput. HPE InfiniBand EDR/Ethernet 2-port 841QSFP28 adapters support MPI tag matching and rendezvous offloads, along with adaptive routing on reliable transport.

HPE InfiniBand EDR/Ethernet 100Gb 2-port 841QSFP28 Adapter

Are you looking for an HPE EDR InfiniBand Adapter for your HPE ProLiant XL and HPE ProLiant DL Gen9 and Gen10 server families? The HPE InfiniBand EDR and 100 Gb Ethernet adapters are designed for customers who deploy high performance computing (HPC) systems with their HPE ProLiant XL and DL Gen9 and Gen10 servers in the data center. The HPE InfiniBand EDR and 100 Gb Ethernet adapters include HPE InfiniBand EDR 100Gb 1-port 841QSFP28 Adapter, HPE InfiniBand EDR/Ethernet 100Gb 2-port 841QSFP28 Adapter, HPE InfiniBand EDR/Ethernet 100Gb 1-port 840QSFP28 Adapter, and HPE InfiniBand EDR/Ethernet 100Gb 2-port 840QSFP28 Adapter. The 1-port 841QSFP28 card supports InfiniBand, and the rest of the other cards support both InfiniBand and Ethernet. Combined with EDR InfiniBand or 100 Gb Ethernet switches, they deliver low latency and up to 100Gbps bandwidth, ideal for performance-driven server and storage clustering applications in HPC and enterprise data centers.
HPE InfiniBand EDR/Ethernet 100Gb 2-port 841QSFP28 Adapter

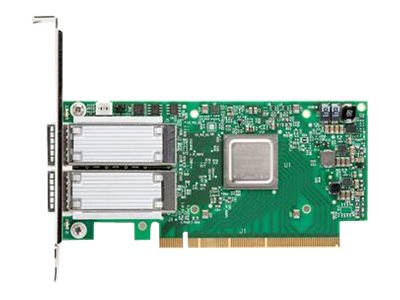

slide 1 of 1, show larger image, hpe infiniband edr/ethernet 100gb 2-port 841qsfp28 adapter

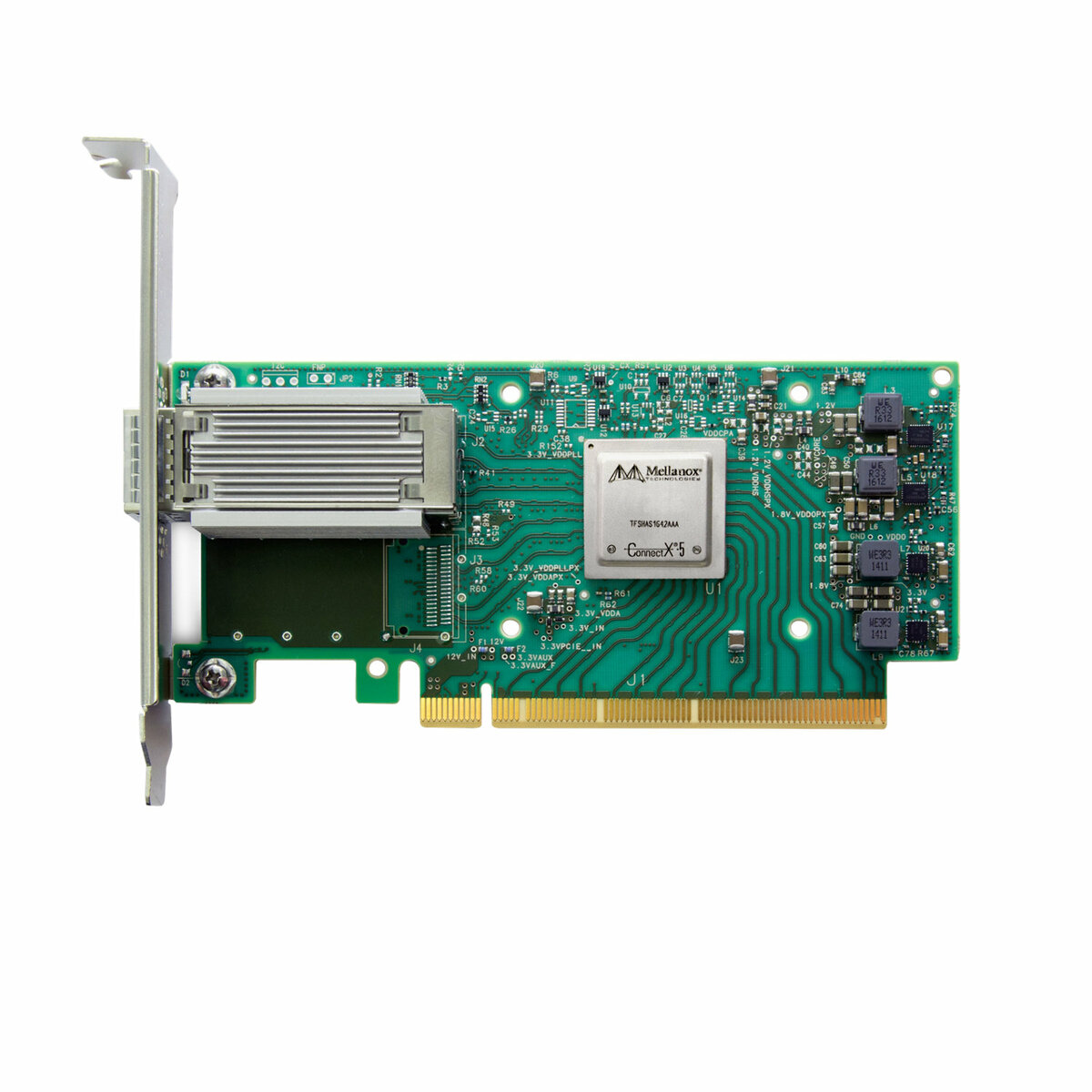

The 841QSFP28 adapters are based on Mellanox® ConnectX-5 technology.
The 840QSFP28 adapters are based on Mellanox ConnectX-4 technology.

Low Latency, High-Bandwidth Adapters for EDR InfiniBand and 100 Gb Ethernet Connectivity

  • The HPE InfiniBand EDR and 100 Gb Ethernet adapters are supported on the HPE ProLiant XL and HPE ProLiant DL Gen9 and Gen10 servers. They deliver up to 100Gbps bandwidth and a sub-microsecond low latency for demanding high performance computing (HPC) workloads.
  • The adapter includes multiple offload engines that speed communications by delivering a low CPU overhead for increasing throughput.
  • HPE InfiniBand EDR/Ethernet 100Gb 1-port and 2-port 841QSFP28 Adapters support MPI tag matching and rendezvous offloads, along with adaptive routing on reliable transport.
SKU: 872726-B21 1 Category: Tag:
General
Device Type Network adapter
Form Factor Plug-in card – low profile
Interface (Bus) Type PCI Express 3.0 x16
Networking
Ports 100Gb Ethernet / Infiniband EDR QSFP28 x 2
Connectivity Technology Wired
Data Link Protocol 100 Gigabit Ethernet, 100 Gigabit InfiniBand
Data Transfer Rate 100 Gbps
Capacity Virtual functions: up to 256 ¦ Physical functions: up to 16
Features RoCE, InfiniBand EDR Link support, XRC transport, DCT, NVMf Offloads
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm
Processor / Memory
Processor 1 x Mellanox ConnectX-5
Expansion / Connectivity
Interfaces 2 x 100Gb Ethernet / Infiniband EDR QSFP28 – QSFP28
Miscellaneous
Compliant Standards CISPR 22 Class A, EN55022 Class A, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, IEC 60068-2-32, RoHS, IEC 60068-2-29, IEC 60068-2-64, KC, FCC CFR47 Part 15 A, CAN/CSA-C22.2 No. 60950-1
Power
Power Consumption Operational 16.12 Watt
Software / System Requirements
OS Required SuSE Linux Enterprise Server 11 SP3, SuSE Linux Enterprise Server 11 SP4, SuSE Linux Enterprise Server 12 SP3, Ubuntu 16.04, Red Hat Enterprise Linux 6.8, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, Ubuntu 16.10, Ubuntu 17.04, SuSE Linux Enterprise Server 12 SP2, Red Hat Enterprise Linux 7.4, CentOS 6.9, CentOS 7.3, CentOS 6.8, CentOS 7.4, Oracle Enterprise Linux 6.8, Oracle Enterprise Linux 6.9, Oracle Enterprise Linux 7.3, Oracle Enterprise Linux 7.4, Ubuntu 17.10
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 – 95% (non-condensing)
Compatibility Information
Designed For HPE J2000 Dual IOM 2x100GbE NVMe-oF SFF JBOF Storage, J2000 Dual IOM 6x100GbE NVMe-oF SFF JBOF Storage ¦ HPE Apollo 4200 Gen10, 4200 Gen10 192TB Qumulo Hybrid Node, 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform, 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform, 4200 Gen10 for HPE Ezmeral Container Platform, 4200 Gen10 for HPE Ezmeral Tracking, 4200 Gen10 Qumulo Archive Node, 4200 Gen10 Qumulo Hybrid Node, 4200 Gen9 for Google, 4200 Qumulo Hybrid Node, 4200 Qumulo Node ¦ HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10 ¦ HPE ProLiant DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10 All Flash Server for Datera, DL380 Gen10, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance, XL170r Gen10, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL170r Gen10 Server for BlueData EPIC, XL170r Gen9, XL190r Gen10, XL190r Gen10 for HPE Ezmeral Container Platform, XL190r Gen9, XL270d Gen9
