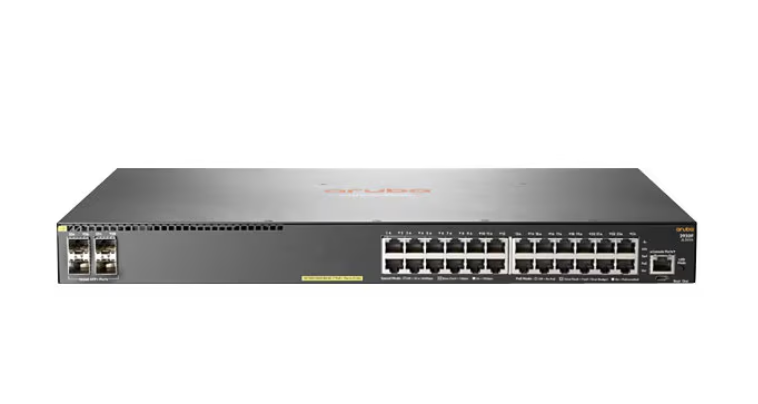

HPE Aruba 2930F 24G PoE+ 4SFP+ TAA – switch – 24 ports – managed – rack-mountable – TAA Compliant
Quick tech specs
- Switch
- managed
- rack-mountable
- TAA Compliant
- L3
- 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
- PoE+ (370 W)
AED27,499.00
Know your gear
The HPE Aruba 2930F switch, featuring 24 ports, is a cost-effective access switch solution that can be effortlessly installed with Zero Touch Provisioning. This stackable Layer 3 switch delivers the performance required by enterprises, small and medium-sized businesses and branch office networks. It ensures fast and powerful network access and features advanced security and network management tools.
| Category | Details |
|---|
| Overview |
| Brand | Aruba |
| Product Line | HPE Aruba |
| Model | 2930F 24G PoE+ 4SFP+ TAA |
| Manufacturer | Aruba |
| Processor |
| Clock Speed | 1.016 GHz |
| Processor Brand | ARM |
| Processor Type | Cortex-A9 |
| Processors Installed | 1 |
| Memory |
| Flash Memory Installed | 4 GB |
| Memory Technology | DDR3 SDRAM |
| RAM Installed | 1 GB |
| Network & Communication |
| Advanced Switching | Layer 3 |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| Features | Access Control List (ACL), ARP, BOOTP, Class of Service (CoS), CPU protection, DHCP server/protection, DiffServ, Dynamic ARP protection, Dynamic VLAN (GVRP), Flow control, Full duplex, ICMP Router Discovery Protocol (IRDP), IGMP snooping, IPv6 support, Jumbo Frames, LACP, LLDP, MAC address lockout, MIB/MIB II, MSTP, NDP, OpenFlow, QoS, sFlow, SNTP, STP, STP Root Guard, Syslog, ToS, UDLD, VXLAN, VLAN |
| Form Factor (Hubs & Switches) | Rack-mountable |
| MAC Address Table Size | 32K entries |
| Manageable | Yes |
| PoE Budget | 370 watt |
| Ports | 24 |
| Power Over Ethernet (PoE) | PoE+ |
| Product Type | Switch |
| Remote Management | CLI, RMON 1, SNMP, SNMP 1/2/2c/3, SSH, SSH-2, Telnet, XRMON |
| Routing Protocol | BGP, CIDR, IGMP/IGMPv2/IGMPv3, MLD, OSPF/OSPFv2/OSPFv3, RIP/RIP-1/RIP-2/RIPng, Static IP/IPv4/IPv6 routing |
| Stackable | Yes |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
| Expansion Slots |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Connectivity |
| Interface Provided | 1 x serial (console), 24 x 1000Base-T RJ-45 PoE+, 4 x Gigabit / 10Gbit LAN SFP+ |
| Port Quantity | 24 |
| Port Type | 10/100/1000 (PoE+) |
| Ports Type (2nd) | 1 Gigabit / 10 Gigabit SFP+ (uplink) |
| Power |
| Power Supplies Installed | 1 |
| 80 PLUS Certification | 80 PLUS Silver |
| Software |
| Software Type | Command Line Interface (CLI), HP Intelligent Management Center, HP Web browser |
| Technical Information |
| Encryption | MD5, SSL |
| Humidity Range Storage | 15 – 90% (non-condensing) |
| Max Operating Temperature | 113 degrees Fahrenheit |
| Max Storage Temperature | 158 degrees Fahrenheit |
| Min Operating Temperature | 32 degrees Fahrenheit |
| Min Storage Temperature | -40 degrees Fahrenheit |
| Operating Humidity | 15 – 95% (non-condensing) |
| Supported Devices | 4 |
| Product Information |
| Authentication Method | CHAP, PAP, RADIUS, TACACS, TACACS+ |
| Capacity | IPv4 routing table: 10,000 entries, IPv6 routing table: 5,000 entries, Jumbo frame size: 9,220 bytes |
| Country | United States |
| Device Type | Internal power supply |
| Installed Devices/Modules | 0 |
| Localization | English |
| Packaged Quantity | 1 |
| Performance | Latency (1 Gbps): 3.8 µs, Latency (10 Gbps): 1.6 µs, Switching capacity: 128 Gbps, Throughput: 95.2 Mpps |
| Ports (2nd) Quantity | 4 |
| Dimensions & Weight |
| Height | 1.7 inch |
| Height (Rack Units) | 1 |
| Weight | 8.6 lbs |
| Width | 17.4 inch |
| Depth | 12 inch |
| Physical Characteristics |
| Color Category | Black |
| Certifications & Listings |
| Compliant Standards | CISPR 22 Class A, CISPR 24, CNS 13438, CSA C22.2 No. 60950-1-07, EN 55022:2010, EN 55024:2010, EN 60825-1:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60825-1:2007, IEC 60950-1:2005 + A1:2009 + A2:2013, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 60950-1 Second Edition, VCCI Class A |
| ENERGY STAR Certified | No |
| TAA Compliant | Yes |
