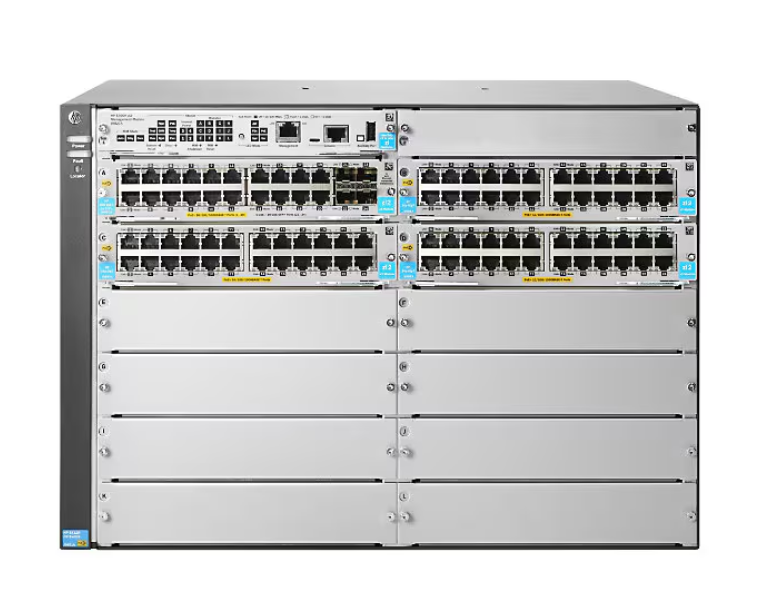

HPE Aruba 5412R 92GT PoE+ / 4SFP+ (No PSU) v3 zl2 – switch – 92 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • Switch
  • 92 x 10/100/1000 (PoE+) + 4 x Gigabit SFP / 10 Gigabit SFP+
  • PoE+
  • managed
  • rack-mountable

AED117,499.00

Add to Wishlist

Know your gear

The HPE Aruba Networking 5400R zl2 Switch Series brings enterprise-class resiliency and innovative flexibility to mobile-first networks. This advanced Layer 3 modular switch provides scalable aggregation with HPE Smart Rate multi-gigabit ports for high-speed 802.11ac devices, Dynamic Segmentation, Virtual Switching Framework (VSF) stacking technology, hitless failover, line rate 40GbE, robust QoS and security and requires no software licensing. The 5400R zl2 series is easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Nerworking AirWave and cloud-based HPE Aruba Nerworking Central.
Category: Tag:
Overview
Brand Aruba
Product Line HPE Aruba
Model 5412R 92GT PoE+ / 4SFP+ (No PSU) v3 zl2
Manufacturer Aruba
Processor
Clock Speed 1.2 GHZ
Processor Brand Freescale
Processor Number P2020
Processors Installed 1
Memory
Flash Memory Installed 1 GB
Memory Technology DDR3 SDRAM
RAM Installed 4 GB
Network & Communication
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Features Access Control List (ACL) support, ARP support, Auto-uplink (auto MDI/MDI-X), Bandwidth control, BOOTP support, Class of Service (CoS), DHCP client, DHCP protection, DHCP relay, DHCP support, DiffServ support, Dual firmware images, Dynamic ARP protection, Energy Efficient Ethernet, Fan tray, Flow control, Full duplex mode, GARP VLAN Registration Protocol (GVRP), Half duplex mode, IGMP snooping, IPv4 support, IPv6 support, MACsec support, Management Information Base (MIB), MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Non-Stop Routing (NSR), Port Security, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Routing, sFlow v5, SNTP support, Spanning Tree Protocol (STP) support, STP Root Guard, Trunking, Tunneling, Type of Service (ToS), Uni-Directional Link Detection (UDLD), VLAN support
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support Yes
MAC Address Table Size 64K entries
Manageable Yes
Ports 92
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI, HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SMON, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP, XRMON
Routing Protocol BGP, IGMP, IGMPv3, MLD, MLDv2, OSPFv2, OSPFv3, PIM-DM, PIM-SM, RIP-1, RIP-2, Static IP routing, Static IPv6 routing, VRRP
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
Expansion Slots 1 (total) / 0 (free) x SD Memory Card, 12 (total) / 8 (free) x expansion slot
Connectivity
Interface Provided 1 x management, 1 x RJ-45 management, 4 x Gigabit / 10Gbit LAN SFP+, 92 x 1000Base-T RJ-45 PoE+
Port Quantity 92
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) Gigabit SFP / 10 Gigabit SFP+
Power
Power Supplies Supported 4
Technical Information
Encryption SSL
Humidity Range Storage 15 – 95% (non-condensing)
Max Operating Temperature 113°F
Max Storage Temperature 158°F
Min Operating Temperature 32°F
Min Storage Temperature -40°F
Operating Humidity 15 – 95% (non-condensing)
Supported Devices 12
Product Information
Authentication Method Extensible Authentication Protocol (EAP), RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Capacity IPv4 routing table entries: 10000, IPv6 routing table entries: 5000
Device Type Internal power supply (not installed)
Installed Devices/Modules 4
Packaged Quantity 1
Performance Routing/switching capacity: 1920 Gbps, Switching fabric bandwidth: 2030 Gbps, Throughput: up to 1142.8 Mpps
Ports (2nd) Quantity 4
Rack Mounting Kit Included
Included Items
Included Accessories Fan tray
Dimensions & Weight
Height 12.1 inch
Height (Rack Units) 7
Weight 45.19 lbs
Width 17.5 inch
Depth 17.8 inch
Physical Characteristics
Color Category Black, Gray
Certifications & Listings
Compliant Standards CISPR 22 Class A, CISPR 24, CSA 22.2 No. 60950, EN 60950, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC Class A certified, IEC 60950, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 60950, VCCI Class A ITE
