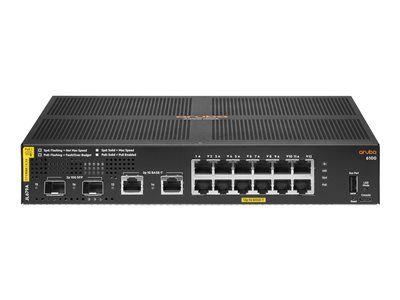

HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch – switch – 16 ports – managed – rack-mountable

Add to Wishlist
HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch – Switch – managed – 12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1000Base-T – rack-mountable – PoE+ (139 W)

AED5,999.00

Add to Wishlist

The Aruba CX 6100 switch series is a modern family of entry-level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the Aruba CX 6100 switch provides a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications. Prepare your network for unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This switch series has convenient built-in high-speed uplinks to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet work spaces.

SKU: JL679A#ABB Category: Tag:
Enclosure Type Rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1000Base-T
Power Over Ethernet (PoE) PoE+
PoE Budget 139 W
Performance Switching capacity: 68 Gbps<br>Throughput: 45.1 Mpps<br>Latency (1 Gbps): 2.3 µs<br>Latency (10 Gbps): 2.6 µs
Capacity Switched virtual interfaces (SVIs): 16<br>ARP entries: 1024<br>IPv4 routes (Unicast): 512<br>IPv6 routes (Unicast): 512<br>IGMP groups: 512<br>MLD groups: 512<br>IPv4 ACL entries (ingress): 256<br>IPv6 ACL entries (ingress): 128<br>MAC ACL entries (ingress): 256
MAC Address Table Size 8192 entries
Routing Protocol IGMPv2, IGMPv3
Encryption Algorithm SSL
Authentication Method Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, MSTP support, TFTP support, MLD snooping, fanless, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, MIB, NAC, NDP, SNMP support, ICMP, EntityMIB, DNS client, LLDP-MED, UDP, RSTP, IPv6 addressing
Compliant Standards IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
Processor 1 x ARM A9: 1.016 GHz
RAM 4 GB DDR3 SDRAM
Flash Memory 16 GB
Expansion / Connectivity Interfaces: 12 x 10/100/1000 Base-T RJ-45<br>2 x 1/10Gbit LAN SFP+<br>1 x USB-C console<br>1 x USB Type A<br>2 x Gigabit LAN
Power Power Device: Internal power supply<br>Power Provided: 165 Watt 0.9 A<br>Voltage Required: AC 230 V (50/60 Hz)<br>Power Consumption Operational: 16 Watt
Miscellaneous Compliant Standards: FCC Class A certified, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, UL 60950-1 Second Edition, EN 60825, VCCI Class A, EN 60825-1:2007, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60825-1:2007 Class 1, EN 55022/CISPR 22 Class A, RFC1213, RFC1493, RFC2674, IEC/EN 60950-1, RFC768, RFC2460, RFC2925, RFC1591, RFC783, RFC792
Localization English / Europe
Dimensions & Weight Width: 10 in<br>Depth: 10 in<br>Height: 1.7 in<br>Weight: 6.13 lbs
