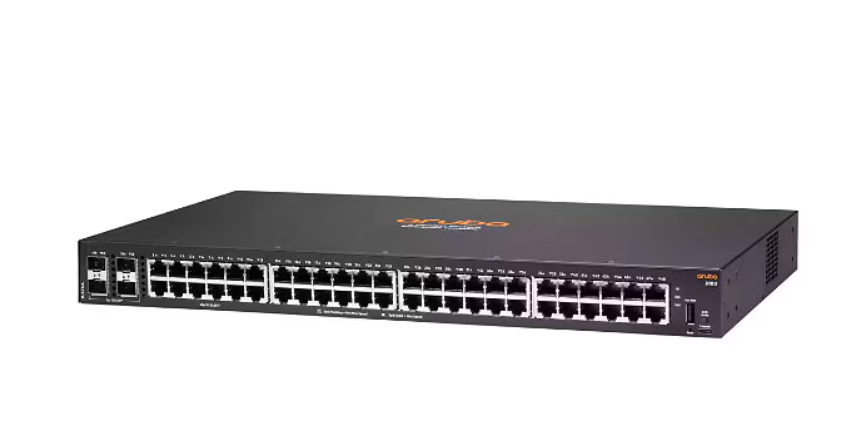

HPE Aruba 6100 48G 4SFP+ Switch – switch – 52 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • Switch
  • 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
  • rack-mountable
  • managed
  • side to side airflow

AED22,299.00

Add to Wishlist

Know your gear

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the HPE CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications. Prepare your network for tomorrow’s unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the HPE Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the HPE CX 6100 also simplifies ownership with no switch software licensing requirements.
SKU: JL676A#B2B Category: Tag:
Field Details
Brand Aruba
Product Line HPE Aruba
Model 6100 48G 4SFP+ Switch
Manufacturer Aruba

Processor

Field Details
Clock Speed 1.016 GHZ
Processor Brand ARM
Processor Type A9
Processors Installed 1

Memory

Field Details
Flash Memory Installed 16 GB
Memory Technology DDR3 SDRAM
RAM Installed 4 GB

Network & Communication

Field Details
Compliant Standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3x
Features ARP support, BOOTP support, DHCP client, DiffServ support, DNS client, Energy Efficient Ethernet, EntityMIB, Flow control, Internet Control Message Protocol (ICMP), IPv6 addressing, IPv6 support, LACP support, LLDP support, LLDP-MED, Management Information Base (MIB), MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Neighbor Discovery Protocol (NDP), Network Access Control (NAC), Port based access control, Rapid Reconfiguration of Spanning Tree (RSTP), sFlow, SNMP support, SNTP support, Trivial File Transfer Protocol (TFTP) support, User Datagram Protocol (UDP), VLAN support
Form Factor (Hubs & Switches) Rack-mountable
MAC Address Table Size 8192 entries
Manageable Yes
Ports 52
Product Type Switch
Routing Protocol IGMPv2, IGMPv3
Stackable Stackable
Subcategory Network hubs and switches
Switching Type 10 Gigabit Ethernet

Connectivity

Field Details
Interface Provided 1 x USB Type A, 1 x USB-C console, 24 x 10/100/1000 Base-T RJ-45, 4 x 1/10Gbit LAN SFP+
Port Quantity 48
Port Type 10/100/1000
Ports Type (2nd) 1 Gigabit / 10 Gigabit SFP+

Power

Field Details
Frequency 50/60 hertz
Output Current 0.5 ampere
Power Consumption Operational 20.6 watt
Power Provided 65 watt
Required Voltage AC 220 volt

Technical Information

Field Details
Encryption SSL
Humidity Range Storage 15 – 90% (non-condensing)
Max Operating Temperature 113 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 15 – 95% (non-condensing)

Product Information

Field Details
Airflow Direction Side to side airflow
Authentication Method RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Capacity ARP entries: 1024, IGMP groups: 512, IPv4 ACL entries (ingress): 256, IPv4 routes (Unicast): 512, IPv6 ACL entries (ingress): 128, IPv6 routes (Unicast): 512, MAC ACL entries (ingress): 256, MLD groups: 512, Switched virtual interfaces (SVIs): 16
Device Type Internal power supply
Packaged Quantity 1
Performance Latency (1 Gbps): 1.9 µs, Latency (10 Gbps): 1.8 µs, Switching capacity: 176 Gbps, Throughput: 98.6 Mpps
Ports (2nd) Quantity 4

Dimensions & Weight

Field Details
Height 1.7 inch
Height (Rack Units) 1
Weight 7.54 lbs
Width 17.4 inch
Depth 9.7 inch

Physical Characteristics

Field Details
Color Category Black

Certifications & Listings

Field Details
Compliant Standards CAN/CSA C22.2 No. 60950 Second Edition, CISPR 24, EN 55022/CISPR 22 Class A, EN 60825, EN 60825-1:2007, EN 61000-3-2, EN 61000-3-3, FCC Class A certified, IEC 60825-1:2007 Class 1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC/EN 60950-1, Laser Class 1, RFC1213, RFC1493, RFC1591, RFC2460, RFC2674, RFC2925, RFC768, RFC783, RFC792, UL 60950-1 Second Edition, VCCI Class A
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
