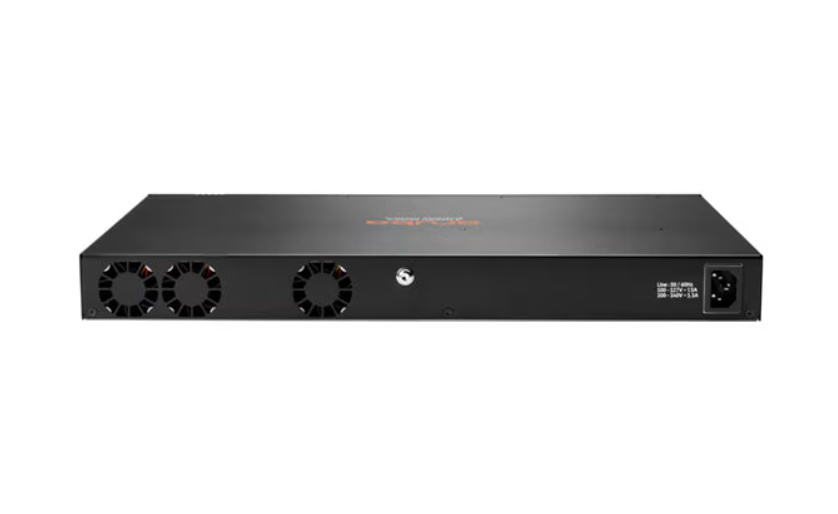

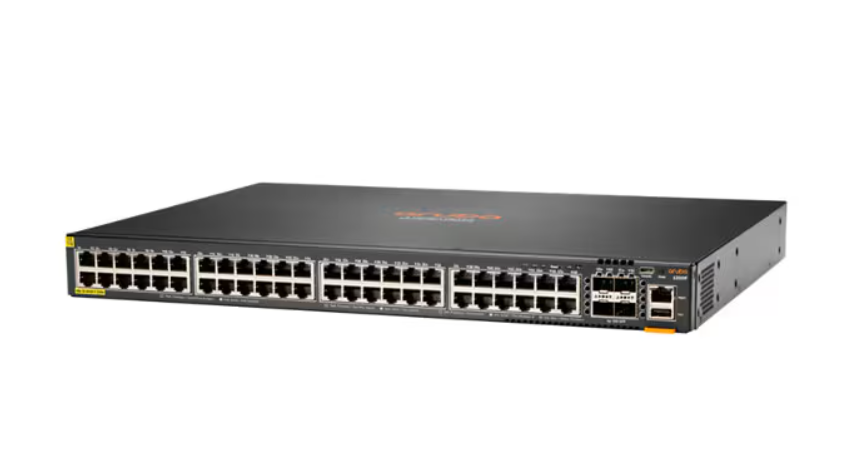

HPE Aruba 6200F 48G Class4 PoE 4SFP+ 370W Switch – switch – Max. Stacking Distance 10 kms – 48 ports – managed –


Quick tech specs

  • Switch
  • L3
  • 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
  • rack-mountable
  • BTO
  • Max. Stacking Distance 10 kms
  • managed
  • front and side to back
  • PoE+ (370 W)

AED45,599.00

Know your gear

The HPE Aruba 6200F Switch is a high-utility device to meet the requirements of your demanding work environments. It is powered by an ARM Cortex-A72 1.8 GHZ processor for seamless performance. This rack-mountable switch offers 8 GB RAM and 48 ports.

Category: Tag:
Category Specification
Overview
Brand Aruba
Product Line HPE Aruba
Model 6200F 48G Class4 PoE 4SFP+ 370W Switch
Manufacturer Aruba
Processor
Clock Speed 1.8 GHZ
Processor Brand ARM
Processor Number Cortex-A72
Processors Installed 1
Memory
Flash Memory Installed 16 GB
Memory Technology DDR4 SDRAM
RAM Installed 8 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Features Address Resolution Protocol, Bridge protocol data unit (BPDU), Class of Service (CoS), Deficit Weighted Round Robin (DWRR), Egress Queue Shaping (EQS), Link Layer Discovery Protocol, Rapid PVST+ (RPVST+), Trusted Platform Module (TPM), Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unsupported Transceiver Mode (UTM), Virtual Route Redundancy Protocol (VRRP) support
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9220 bytes
MAC Address Table Size 32768 entries
Manageable Yes
Max Units In A Stack 8
PoE Budget 370 watt
Ports 48
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI, MIB, RMON
Routing Protocol IGMP, IGMPv2, IGMPv3, MLD, MLDv2, OSPFv2, OSPFv3, RIP-2
Stackable Stackable
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 1 x console RJ-45, 1 x management, 1 x USB Type A host, 1 x USB-C console, 4 x 100/1000/10G SFP+ uplink, 48 x 10/100/1000 Base-T RJ-45 PoE+ – 30 W
Port Quantity 48
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) 1 Gigabit / 10 Gigabit SFP+ (uplink)
Technical Information
Encryption FIPS 140-2, SSL
Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 113 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
Operating Humidity 5 – 95% (non-condensing)
Product Information
Airflow Direction Front and side to back
Authentication Method RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Capacity Packet buffer size: 8 MB
Country United States
Device Type Internal power supply
Localization English
Packaged Quantity 1
Performance Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs
Ports (2nd) Quantity 4
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 10.74 lbs
Width 17.4 inch
Depth 12 inch
Physical Characteristics
Color Category Gray
Certifications & Listings
Compliant Standards AS/NZS CISPR 32:2015 Class A, CAN/CSA C22.2 No. 62368-1:19 Third Edition, CISPR 32:2016 Class A, CISPR 35: 2016, CNS 15598-1:2020, CNS 15936: 2020 Class A, EN 55032:2015 /A11:2020, Class A, EN 55035:2017+A11:2020, EN 60825-1:2014, EN 61000-3-2, EN 61000-3-2:2019, EN 61000-3-3, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, EN 62368-1:2020+A11:2020, EN 63000:2018, FCC 47 CFR part 15B:2021 Class A, GB 4943.1-2022, ICES-003 Issue 7: 2020 Class A, IEC 60825-1:2014 Class 1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1: 2014 Second Edition, IEC 62368-1:2018 Third Edition, IEC 63000:2018, KC 62368-1: 2021-08, KS C 9832, Laser Class 1, UL 62368-1 Third Edition, VCCI-CISPR 32 Class A
ENERGY STAR Certified No
