HPE Aruba 6200M 24G Class4 PoE 4SFP+ – switch – 24 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • Switch
  • managed
  • front and side to back
  • PoE+ (740 W)
  • L3
  • 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)
  • rack-mountable

AED36,499.00

Add to Wishlist

Know your gear

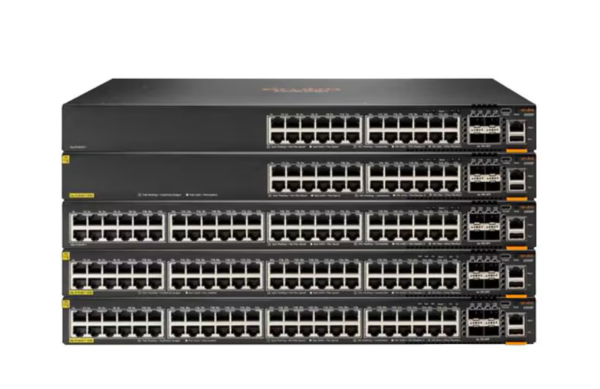

The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Network Analytics Engine, the HPE Aruba Networking CX 6200 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy. Make your network ready for tomorrow’s unpredictable demands with a powerful Aruba Gen7 ASIC architecture to deliver fast, non-blocking performance. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high speed uplinks and up to 1440W of PoE to support IoT devices such as security cameras and wireless APs.
SKU: R8Q68A Category: Tag:
Category Specification
Overview
Brand Aruba
Product Line HPE Aruba
Model 6200M 24G Class4 PoE 4SFP+
Manufacturer Aruba
Processor
Clock Speed 1.8 GHz
Processor Brand ARM
Processors Installed 1
Memory
Flash Memory Installed 16 GB
Memory Technology DDR4 SDRAM
RAM Installed 8 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.3af, IEEE 802.3at
Features Access Control List (ACL) support, Aruba Virtual Switching Framework (VSF), Auto-uplink (auto MDI/MDI-X), BPDU, CoS, DWRR, DHCP support, Dynamic IPv6 lockdown, IPv6 support, LLDP support, MIB, MSTP support, MVRP, ND snooping, NTP, Packet storm protection, PVST+, PIM, QoS, Rapid PVST+, RSTP, sFlow, STP support, Syslog support, ToS, VXLAN, VLAN support
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9220 bytes
Manageable Yes
PoE Budget 740 watt
Ports 24
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI, RMON, SFTP, SNMP, SNMP 2c, SNMP 3, SSH, TFTP
Routing Protocol ECMP, IGMP, IGMPv2, IGMPv3, MLD, MSTP, OSPF, PIM-DM, PIM-SM, RSTP, STP, VRRP
Stackable Stackable
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 1 x console RJ-45, 1 x USB Type A host, 1 x USB-C console, 24 x 10/100/1000 Base-T RJ-45 PoE Class 4, 4 x Gigabit / 10Gbit LAN SFP+ uplink/stacking
Port Quantity 24
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)
Power
Frequency 50/60 hertz
Hot-Plug Hot-plug
Power Supplies Installed 1
Power Supplies Supported 2
Redundant Power Supply Optional
Redundant Power Supply Supported 1+1 (with optional power supply)
Required Voltage AC 100-120/200-240 volt
Technical Information
Humidity Range Storage 15 – 90% (non-condensing)
Max Operating Temperature 113°F
Max Storage Temperature 158°F
Min Operating Temperature 32°F
Min Storage Temperature -40°F
Operating Humidity 15 – 95% (non-condensing)
Product Information
Airflow Direction Front and side to back
Authentication Method RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Capacity IGMP groups: 1000, IPv4 ACL entries (egress): 512, IPv4 ACL entries (ingress): 1000, IPv4 host table: 8000, IPv4 routes: 2000, IPv6 ACL entries (egress): 256, IPv6 ACL entries (ingress): 1000, IPv6 host table: 8000, IPv6 routes: 2000, MAC ACL entries: 512 (egress), MAC ACL entries: 1000 (ingress), MLD groups: 1000, Packet buffer size: 8 MB, Switched virtual interfaces (SVIs): 128
Device Type Internal power supply
Packaged Quantity 1
Performance Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Stacking bandwidth: 40 Gbps, Switching capacity: 128 Gbps, Throughput: 95.2 Mpps
Ports (2nd) Quantity 4
Rack Mounting Kit Included
Included Items
Included Accessories Rack kit (2 post)
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 12.85 lbs
Width 17.4 inch
Depth 15.2 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards BS EN 62368-1:2014 + A11:2017 2nd Ed., BS EN 62368-1:2020 + A11:2020 3rd Ed., CISPR 32 Ed 2.1: 2019 Class A, CISPR 35, CNS 15598-1:2020, CSA C22.2 No. 62368-1 Third Edition, EN 55032:2015+A11:2020 Class A, EN 55035:2017+A11:2020, EN 60825-1:2014, EN 61000-3-2:2019, EN 61000-3-3:2013/A1:2019, FCC CFR47 Part 15 B Class A 2014, ICES-003 Class A, IEC 60950-1:2005 + Am1:2009 + Am2:2013, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1:2014 2nd Ed., UL 62368-1 Third Edition, VCCI Class A
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
