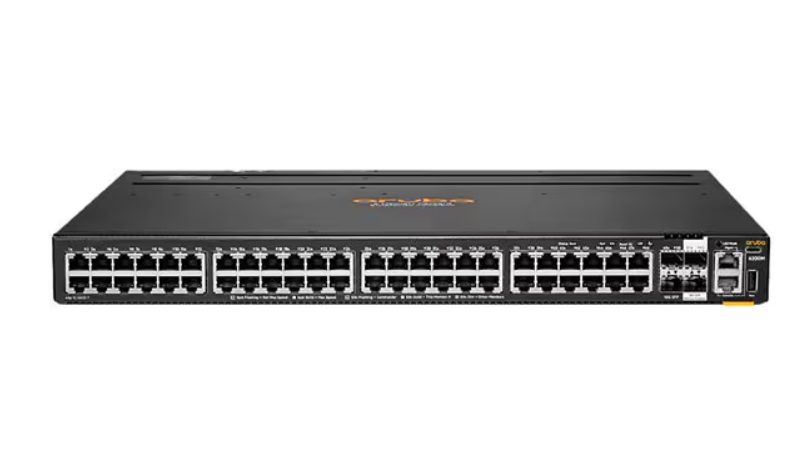

HPE Aruba 6200M 48Gbps 4SFP+ Switch

Add to Wishlist

Quick tech specs

  • Automation and Analytics
  • Smarter Segmentation
  • Performance and Power

44,699.00 د.إ

Add to Wishlist

Know your gear

The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Network Analytics Engine, the HPE Aruba Networking CX 6200 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy. Make your network ready for tomorrow’s unpredictable demands with a powerful Aruba Gen7 ASIC architecture to deliver fast, non-blocking performance. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high speed uplinks and up to 1440W of PoE to support IoT devices such as security cameras and wireless APs.
Category: Tag:
Category Specification
Overview
Brand Aruba
Product Line HPE Aruba
Model 6200M 48G 4SFP+ Switch
Manufacturer Aruba
Processor
Clock Speed 1.8 GHZ
Processor Brand ARM
Processors Installed 1
Memory
Flash Memory Installed 16 GB
Memory Technology DDR4 SDRAM
RAM Installed 8 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad (LACP)
Features ARP support, Automatic Media-Dependent Interface Crossover (MDIX), Bridge protocol data unit (BPDU), Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DiffServ support, DNS support, Egress Queue Shaping (EQS), Equal-Cost Multipath (ECMP), IGMP support, Layer 2 switching, Management Information Base (MIB), Network Timing Protocol (NTP), Quality of Service (QoS), Rapid PVST+ (RPVST+), Security slot (Kensington security lock compatible), Source-Specific Multicast (SSM), Trusted Platform Module (TPM), Type of Service (ToS), Unidirectional Link Detection (UDLD), Unsupported Transceiver Mode (UTM), Virtual Route Redundancy Protocol (VRRP) support, Web GUI management portal
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9220 bytes
MAC Address Table Size 16000 entries
Manageable Yes
Max Units In A Stack 8
Ports 48
Product Type Switch
Remote Management CLI, SNMP, SNMP 2c, SNMP 3
Routing Protocol ECMP, OSPF, OSPFv2, OSPFv3, RIP-2
Stackable Stackable
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 1 x console (USB) Type C, 1 x console RJ-45, 1 x management RJ-45, 1 x USB Type A host, 4 x 1/10Gbit LAN SFP+ 2x LRM; 2x LRM/MACSec 256, 48 x 10/100/1000 Base-T RJ-45
Port Quantity 48
Port Type 10/100/1000
Ports Type (2nd) 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)
Power
Frequency 50/60 hertz
Power Consumption Operational 75 watt
Power Supplies Supported 2
Required Voltage AC 100-120/200-240 volt
Technical Information
Encryption FIPS 140-2, MD5, SSL
Humidity Range Storage 15 – 90% (non-condensing)
Max Operating Temperature 113 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
Operating Humidity 15 – 95% (non-condensing)
Operating System Required AOS-CX
Product Information
Airflow Direction Front and side to back
Authentication Method RADIUS, TACACS+
Capacity IGMP groups: 1000, IPv4 ACL entries (egress): 512, IPv4 ACL entries (ingress): 1000, IPv4 host table capacity: 8000, IPv4 routes (Unicast): 2000, IPv6 ACL entries (egress): 256, IPv6 ACL entries (ingress): 1000, IPv6 host table capacity: 8000, IPv6 routes (Unicast): 2000, MAC ACL entries (egress): 512, MAC ACL entries (ingress): 1000, MLD groups: 1000, Switched virtual interfaces (SVIs): 128
Device Type Internal power supply (not installed)
Packaged Quantity 1
Performance Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Packet buffer size: 8 MB, Stacking bandwidth: 40 Gbps, Switching capacity: 176 Gbps, Throughput: 130.9 Mpps
Ports (2nd) Quantity 4
Included Items
Included Accessories Fan tray (field replaceable, hotswappable), Rack kit (2 post)
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 12.63 lbs
Width 17.4 inch
Depth 15.2 inch
Physical Characteristics
Color Category Gray
Certifications & Listings
Compliant Standards BS EN 62368-1:2014 + A11:2017 2nd Ed, BS EN 62368-1:2020 + A11:2020 3rd Ed, CISPR 32 Ed 2.1: 2019 Class A, CISPR 35, CISPR 35 Ed 1.0:2016, CNS 15598-1:2020, CSA 22.2 No.62368-1 Third Edition, EN 55032:2015+A11:2020 Class A, EN 55035:2017+A11:2020, EN 60825-1:2014, EN 61000-3-2, EN 61000-3-2:2019, EN 61000-3-3, EN 61000-3-3:2013/A1:2019, EN 62368-1:2014+A11:2017 2nd Ed., EN 62368-1:2020+A11:2020 3rd Ed., FCC 47 CFR part 15B:2014 Class A, ICES-003 Class A, IEC 60825-1:2014 Class 1, IEC 60950-1:2005 + A1:2009 + A2:2013, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1:2014 2nd Ed, IEC 62368-1:2018 Third Edition, Laser Class 1, RoHS, UL 62368-1 Third Edition, VCCI Class A, WEEE
