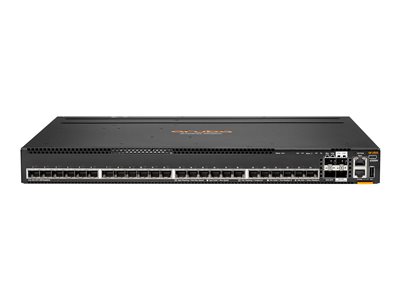

HPE Aruba 6300M 24p SFP+ LRM support and 2p 50G and 2p 25G MACsec Switch – switch – 24 ports – managed – rack-mountable
HPE Aruba 6300M 24p SFP+ LRM support and 2p 50G and 2p 25G MACsec Switch – Switch – L3 – managed – 24 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) + 2 x 1 Gigabit / 10 Gigabit / 25 Gigabit SFP – front and side to back – rack-mountable
د.إ101,699.00
HPE Aruba Networking CX 6300M 24p SFP+ LRM support and 2p 50G and 2p 25G MACSec Switch
The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of AOS-CX stackable switches ideal for access, aggregation, and data center top-of-rack (TOR) deployments. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Networwing Analytics Engine, the CX 6300 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of HPE Aruba Networking NetEdit and HPE CX Mobile App verify that configurations are flawless and easy to deploy. A powerful HPE Aruba Gen7 ASIC architecture delivers fast, non-blocking performance, meaning your network is ready for tomorrow’s unpredictable demands. HPE Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in highspeed uplinks and supports high density IEEE 802.3bt high power PoE with HPE Smart Rate multi-gigabit Ethernet for high speed APs and IoT devices.
| Device Type | Switch – 24 ports – L3 – managed – stackable |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) + 2 x 1 Gigabit / 10 Gigabit / 25 Gigabit SFP |
| Performance | Switching capacity: 880 Gbps Throughput: 660 Gbps Latency (1 Gbps): 4.24 µs Latency (10 Gbps): 1.5 µs Latency (25 Gbps): 2.91 µs Latency (50 Gbps): 3.49 µs Stacking bandwidth: 200 Gbps |
| Capacity | Switched virtual interfaces (SVIs): 1024 IPv4 host table capacity: 49152 IPv6 host table capacity: 49152 IPv4 routes (Unicast): 61000 IPv6 routes (Unicast): 61000 IPv4 routes (Multicast): 8192 IPv6 routes (Multicast): 8192 IGMP groups: 8192 MLD groups: 8192 IPv4 ACL entries (ingress): 20480 IPv6 ACL entries (ingress): 5120 MAC ACL entries (ingress): 20480 IPv4 ACL entries (egress): 8192 IPv6 ACL entries (egress): 2048 MAC ACL entries (egress): 8192 |
| MAC Address Table Size | 32768 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, EGP, BGP-4, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, IGMPv3, GRE, OSPFv3, MSDP, static IPv6 routing, ECMP, policy-based routing (PBR), MLD, Bidirectional Forwarding Detection (BFD), MSTP, RSTP, STP |
| Remote Management Protocol | SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, SFTP |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, High Availability, STP support, RSTP support, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, UDLD, Rapid PVST+, DWRR, LLDP support, fan tray, MIB, DHCP protection, dual firmware images, MVRP, packet storm protection, CoS, SP, broadcast storm protection, 16MB packet buffer, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, ZTP, PIM, VLAN Tagging, RSTP, IPv4 and IPv6 dual stack, IP multicast, LRM optics support, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft NLB |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX |
| Processor | 1 x ARM: 1.8 GHz |
| RAM | 8 GB DDR4 SDRAM |
| Flash Memory | 32 GB |
| Expansion / Connectivity | Interfaces: 24 x Gigabit / 10Gbit LAN SFP+ with MACsec 2 x 1Gbit/10Gbit/25Gbit/50Gbit SFP 1 x USB-C console 1 x management 1 x USB Type A 1 x console 2 x 10/25Gbit LAN SFP with MACsec |
| Power | Power Device: Internal power supply – hot-plug Max Supported Qty: 2 Power Redundancy: Optional Power Redundancy Scheme: 1+1 (with optional power supply) Voltage Required: (50/60 Hz) |
| Miscellaneous | Included Accessories: Fan tray Rack Mounting Kit: Included Compliant Standards: FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, FCC Part 15, ICES-003 Class A, RoHS, WEEE, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, EN 50581:2012, IEC 60950-1:2005, EN 61000-3-3:2013, CISPR 24:2010, EN 55022:2010, EN 61000-3-2:2014, EN 60825-1:2007, IEC 60825-1:2007 Class 1, EN 55032:2012 Class A, CISPR 32 Class A, UL/CSA60950-1 (2nd Edition), CISPR 35, EN 55024:2010 Class A, EN 55035:2017, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Dimensions & Weight | Width: 17.4 in Depth: 15.2 in Height: 1.7 in Weight: 12.06 lbs |
