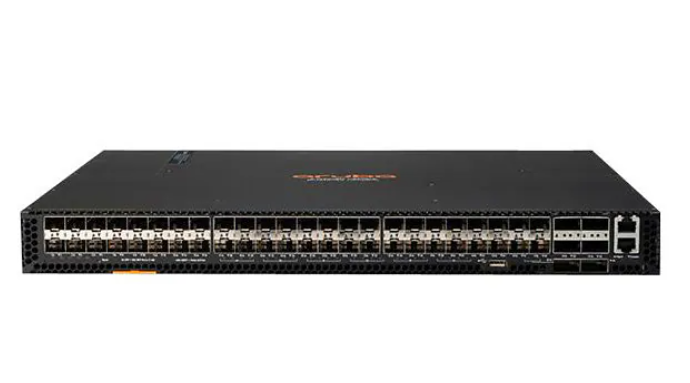

HPE Aruba 8320 – switch – 32 ports – managed – rack-mountable – TAA Compliant – with X472 5 Fans 2 Power Supply


Quick tech specs

  • Switch
  • managed
  • rack-mountable
  • with X472 5 Fans 2 Power Supply
  • L3
  • 32 x 40 Gigabit QSFP+
  • TAA Compliant

AED157,499.00

Know your gear

The past several decades in networking have been defined by static, closed networking solutions designed for the client-server era. The Aruba 8320 Switch Series, a campus core and aggregation switch, is a game-changing solution that offers an innovative approach to dealing with the demands of the mobile, cloud and IoT era. The Aruba 8320 is based on ArubaOS-CX, a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events. The key innovations in ArubaOS-CX are its micro-services style modular architecture, REST APIs, Python scripting capabilities and the Aruba Network Analytics Engine. The Aruba 8320 Switch Series provides line rate 10GbE and 40GbE in a compact 1U form factor and together with the modular Aruba 8400 Switch, rounds out the Aruba Mobile First switching portfolio with an enterprise core and aggregation solution.
SKU: JL579A Category: Tag:
Overview
Brand Aruba
Product Line HPE Aruba
Model 8320
Manufacturer Aruba Data Center Switches
Processor
Clock Speed 2 GHz
Processors Installed 1
Memory
Flash Memory Installed 8 MB
RAM Installed 16 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ae, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
Features Access Control List (ACL) support, Bridge protocol data unit (BPDU), IPv4 support, IPv6 support, Link Aggregation Control Protocol (LACP), Loopback, Multi-Chassis Link Aggregation (MLAG), Multiple Spanning Tree Protocol (MSTP) support, Packet storm protection, Protocol Independent Multicast (PIM), Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Redundant hot swappable fans, sFlow, Spanning Tree Protocol (STP) support, Strict Priority (SP), Uni-Directional Link Detection (UDLD), VPN support
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9 KB
MAC Address Table Size 14K entries
Manageable Yes
Ports 32
Product Type Switch
Remote Management CLI, RMON, SFTP, SNMP, SNMP 2c, SNMP 3, SSH, TFTP
Routing Protocol ECMP, GRE, IGMP, IGMPv2, IGMPv3, OSPF, Static IPv6 routing, VRRP
Subcategory Network hubs and switches
Switching Type 40 Gigabit Ethernet
Connectivity
Interface Provided 1 x console (micro-USB), 1 x RJ-45, 1 x serial RJ-45, 32 x 40Gbit LAN QSFP+
Port Quantity 32
Port Type 40 Gigabit QSFP+
Power
Frequency 50/65 hertz
Hot-Plug Hot-plug
Power Consumption Operational 310 watt
Power Provided 400 watt
Power Supplies Installed 2
Power Supplies Supported 2
Redundant Power Supply Yes
Redundant Power Supply Supported 1+1
Technical Information
Encryption FIPS 140-2
Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 104°F
Max Storage Temperature 158°F
Min Operating Temperature 32°F
Min Storage Temperature -40°F
MTBF 296,526 hours
Operating Humidity 5 – 95% (non-condensing)
Product Information
Authentication Method RADIUS, Secure Shell v.2 (SSH2), TACACS+
Bundled With X472 5 Fans 2 Power Supply
Capacity Virtual interfaces (VLANs) per port for 802.1q: 4096
Device Type Internal power supply
Packaged Quantity 1
Performance Forwarding performance: 1.905 Mpps, Switching capacity: 2.5 Tbps
Rack Mounting Kit Included
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 21.38 lbs
Width 17.2 inch
Depth 20.3 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards AS/NZS, CISPR 24, CISPR 32 Class A, CISPR 32:2015 Class A, CNS 13438, CSA 22.2 No. 60950-1, Directive 2014/35/EU, EN 50581:2012, EN 55024:2010, EN 55032:2015, EN 60825-1:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, FCC CFR47 Part 15 A, ICES-003 issue 5, IEC 60825-1:2007 Class 1, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-8, RoHS, UL 60950-1, WEEE
TAA Compliant Yes
TCO Certified No
