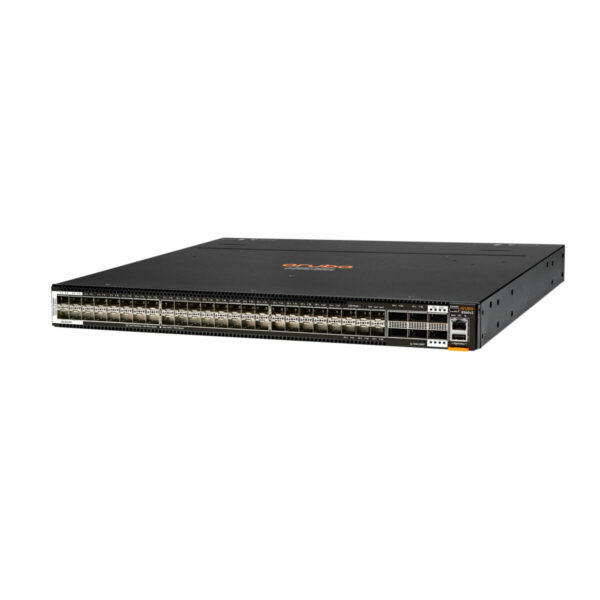

HPE Aruba 8360-48Y6C V2 BF 5F 2AC Bundle U.S. – English Localization
- High-performance 4.8Tbps and 2,678 Mpps
- Intelligent monitoring and visibility with Aruba Network Analytics Engine
- High availability with industry leading VSX redundancy, and redundant power supplies and fans
- Designed for core/aggregation in the campus or Top of Rack or End of Row in data center environments
- MACsec secured connectivity over untrusted domains
- ArubaOS-CX automation and programmability using built-in REST APIs and Python scripts
- Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, and IPv6
- 50G support on 8360-48Y6C, 32Y4C and 16Y2C switches
- Addition of Smart Rate (1/2.5/5/10G) ports on the 8360-48XT4C
AED279,899.00
The Aruba CX 8360-48Y6C v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50Gbps, and 100Gbps.
The 8360-48Y6C v2 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports.
In addition, the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains.
| Category | Detail |
|---|---|
| General Information | |
| Product Name | Aruba 8360-48Y6C V2 BF 5F 2AC Bundle U.S. – English Localization |
| Manufacturer Part Number | JL705C#ABA |
| Product Series | CX 8360 |
| Product Model | 8360v2-48Y4C |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Uplink Port | Yes |
| Modular | Yes |
| Port / Expansion Slot Details | 48 x 25 Gigabit Ethernet Expansion Slot 6 x 100 Gigabit Ethernet Expansion Slot |
| I/O Expansions | |
| Total Number of Expansion Slots | 54 |
| Expansion Slot Type | QSFP28, SFP28 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 25 Gigabit Ethernet, 100 Gigabit Ethernet |
| Network Technology | 25GBase-X, 100GBase-X |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1Qbb, 802.3ad, 802.1ab, 802.1Q, 802.1D, 802.1w, 802.1s, 802.1ae, 802.1AEbn, 802.1AEbw, 802.1ak, 802.1AX, 802.1t, 802.1v, 802.3ae, 802.3an, 802.3ba, 802.3by, 802.3cc, 802.3z |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Number of Power Supplies Supported | 2 |
| Power Consumption | 725 W |
| Management & Protocols | |
| Manageable | Yes |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7″ |
| Width | 17.4″ |
| Depth | 22″ |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TAA Compliant | Yes |
| Other Information | |
| Product Family | CX 8360 |
| Frequency | 50 Hz, 60 Hz |
