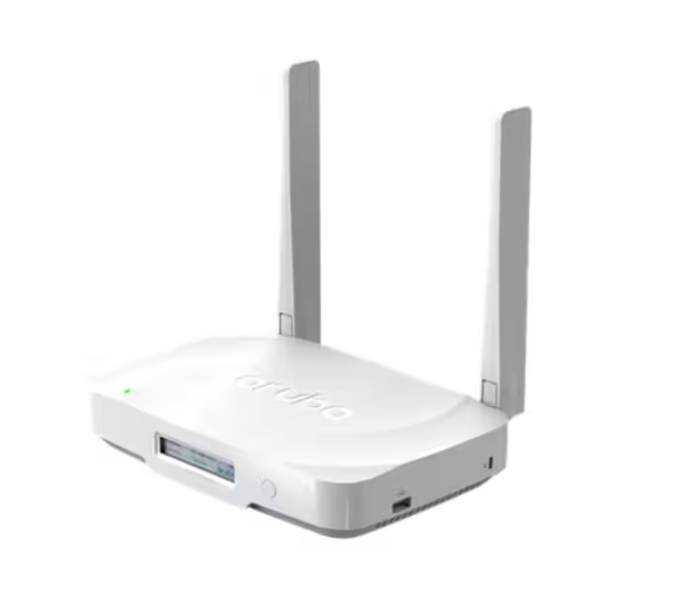

HPE Aruba AP-605R12 Dual-Radio Tri-Band Wi-Fi 6E CAT12 LTE Module Remote Access Point – US
Quick tech specs
- Unlocks the 6GHz Band
- Cellular Module Provides Backup Connectivity and Higher Resiliency
- Configurable Dual Radios
- Cloud-Native Management
- Includes AC Power Adapter
- Delivers Up to 3.6Gbps Combined Peak Data Rate
- Up to Seven 160MHz Channels in 6GHz Support Low-Latency
- Multiple Uplink/Downlink Options
- Cellular Module
AED12,499.00
Know your gear
The HPE Aruba AP-605R12 Dual-Radio Tri-Band Wi-Fi 6E CAT12 LTE Module Remote Access Point is designed to support high-density indoor environments. This access point features configurable dual radios, multiple uplink and downlink options and more. It provides high resiliency and backup connectivity for uninterrupted performance.
| Category | Details |
|---|
| Overview |
| Brand | Aruba |
| Product Line | HPE Aruba Networking |
| Model | AP-605R12 (US) |
| Manufacturer | Aruba |
| Network & Communication |
| Compliant Standards | IEEE 802.11b, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, Wi-Fi CERTIFIED |
| Connectivity Technology | Wireless |
| Data Link Protocols | Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, LTE, ZigBee |
| Data Transfer Rate | 3.6 Gbps |
| Features | 2×2 MIMO technology, 2×2:2 streams, Advanced Cellular Coexistence (ACC), Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), DFS support, High Efficiency (HE) support, High-Throughput (HT) support, Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), Packet aggregation A-MPDU, Packet aggregation A-MSDU, PoE Class 3, Security slot, Space Time Blocking Code (STBC), Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Very High Throughput (VHT) support, Wi-Fi Multimedia (WMM) support |
| Form Factor | Desktop |
| Network Band | 2.4 GHz, 5 GHz, 6 GHz |
| Power Over Ethernet (PoE) | PoE+ |
| Product Type | Wireless access point |
| Status Indicators | Power, Status, System |
| Wireless LAN | 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.0, LTE, ZigBee |
| Connectivity |
| Interface Provided | 1 x 1000Base-T – RJ-45, 1 x 2.5 GBase-T (PoE+) – RJ-45, 1 x console – micro-USB, 1 x USB 2.0 – Type A, 3 x 1000Base-T (PoE) – RJ-45 – 15.4 W |
| Technical Information |
| Antenna Form Factor | External |
| Antennas | 2 |
| Directivity | Omni-directional |
| Encryption | WPA, WPA2, WPA3-Enhanced Open |
| Max Operating Temperature | 104 degrees Fahrenheit |
| Min Operating Temperature | 32 degrees Fahrenheit |
| MTBF | 80 Years |
| Operating Humidity | 5 – 95% RH |
| Operating System Required | ArubaOS, InstantOS 10.5.0.0 |
| Product Information |
| Bundled With | HPE Aruba AP-605CM12 LTE cellular module |
| Capacity | Associated client devices per radio: 512, BSSIDs per radio: 16, OFDMA units: 8 |
| Device Type | External power adapter |
| Packaged Quantity | 1 |
| Network Device | Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz + 6 GHz bands): 3.6 Gbps, Maximum data rate (5 GHz): 1.2 Gbps, Maximum data rate (6 GHz): 2.4 Gbps |
| Included Items |
| Cables | 1 x power cable (NA) |
| Dimensions & Weight |
| Height | 1.6 inch |
| Weight | 31.74 oz |
| Width | 8.9 inch |
| Depth | 5.9 inch |
| Physical Characteristics |
| Color Category | White |
| Certifications & Listings |
| Compliant Standards | EMC 2014/30/EU, EN 60601-1-1, EN 60601-1-2, ETS 300 019 Class 3.2, FCC, IEC/EN 62368-1, IEC/EN/UL 60950, ISED, LVD 2014/35/EU, RED 2014/53/EU |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
