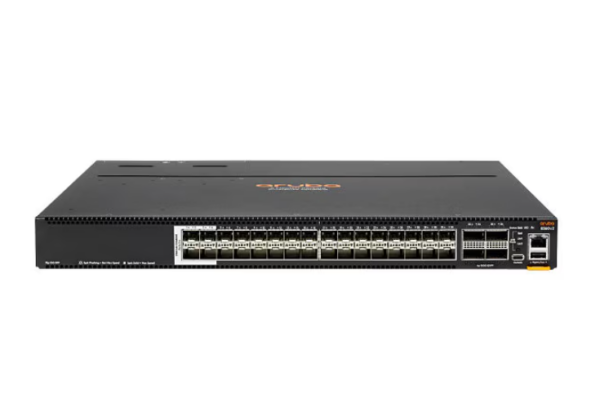

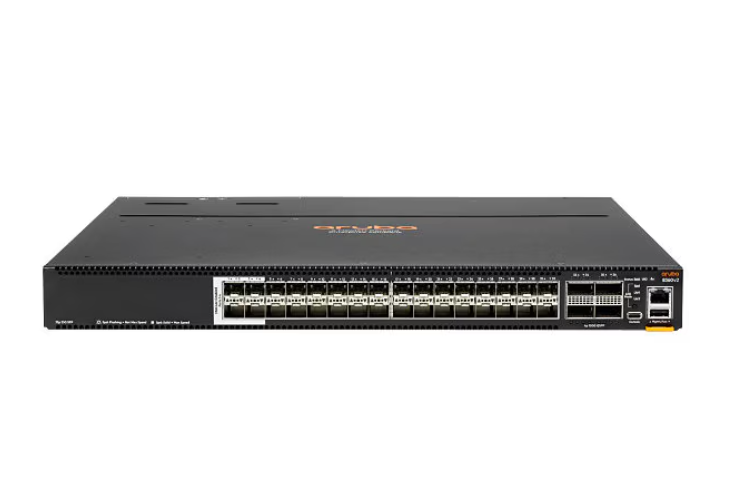

HPE Aruba CX 8360-32Y4C V2 – switch – 32 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • Modular Cloud-Native Architecture
  • High Availability and Resiliency
  • Network Analytics Engine
  • Software-Defined Automation

187,299.00 د.إ

Add to Wishlist

Know your gear

The HPE Aruba CX 8360 v2 Switch Series offers a flexible and innovative approach to addressing the application, security and scalability demands of the mobile, cloud and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and cloud data center environments.

SKU: JL701C#ABA Category: Tag:
Category Details
Overview
Brand Aruba
Product Line HPE Aruba CX
Model 8360-32Y4C V2
Manufacturer Aruba Data Center Switches
Processor
Clock Speed 1.8 GHz
Processors Installed 1
Memory
Flash Memory Installed 32 GB
RAM Installed 16 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP)
Features ARP support, DCB, Dual flash Images, ERPS, ECN, IP Directed Broadcast, Job scheduler framework, Loopback, MSTP support, QoS, RPVST+, RSTP, RoCE v2, REST API, sFlow, UDLD, VRF, VSX, VXLAN ARP/ND Suppression, VXLAN Distributed Anycast Gateway
Form Factor Rack-mountable
Jumbo Frame Support 9KB
Manageable Yes
Ports 32
Product Type Switch
Remote Management CLI, DHCP, NTP, RMON, SFTP, SNMP, TFTP
Routing Protocol BGP, BGP-4, BFD, IGMP, MLD, OSPF, PIM-SM, Static IPv4/IPv6 routing, VRRP
Subcategory Network hubs and switches
Switching Type 25 Gigabit Ethernet
Expansion Slots
QSFP Slots 40/100 Gigabit QSFP+ / QSFP28
Connectivity
Interface Provided 1 x console Type C, 1 x management Type A, 1 x serial RJ-45, 32 x 1/10/25Gbit LAN SFP/SFP+/SFP28, 4 x 10/25Gbit LAN SFP28/SFP+ with MACsec, 4 x 40/100Gbit LAN QSFP28/QSFP+
Port Quantity 28
Port Type 1/10/25 Gigabit SFP / SFP+ / SFP28
Ports Type (2nd) 10 Gigabit / 25 Gigabit SFP+ / SFP28
Power
Frequency 50/60 Hz
Hot-Plug Yes
Power Provided 550 watts
Power Supplies Installed 2
Power Supplies Supported 2
Redundant Power Supply Yes
Required Voltage AC 100-127/200-240 volt
Technical Information
Encryption EAP-TLS
Humidity Range Storage 15 – 95% (non-condensing)
Max Operating Temperature 104°F (40°C)
Max Storage Temperature 158°F (70°C)
Min Operating Temperature 32°F (0°C)
Min Storage Temperature -40°F (-40°C)
Operating Humidity 15 – 95% (non-condensing)
Product Information
Airflow Direction Back to front
Authentication Method RADIUS, SSH2, TACACS+
Capacity Host table entries (IPv4): 145780, IPv6: 145780, IGMP groups: 7000, IPv4/IPv6 ACL (ingress): 65536, Unicast routes (IPv4): 606977, VLANs supported: 4094
Country United States
Device Type Internal power supply
Localization English
Packaged Quantity 1
Performance Switching capacity: 2.4 Tbps
Ports (2nd) Quantity 4
Ports (3rd) Quantity 4
Rack Mounting Kit Included
Included Items
Included Accessories 3 fan trays, Rack kit (2 post)
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1U
Weight 18.06 lbs
Width 17.4 inch
Depth 16 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards CISPR 24, CISPR 32 Class A, FCC Class A certified, UL 60950-1 Second Edition, EN 55024:2010, VCCI Class A
