AED185,699.00

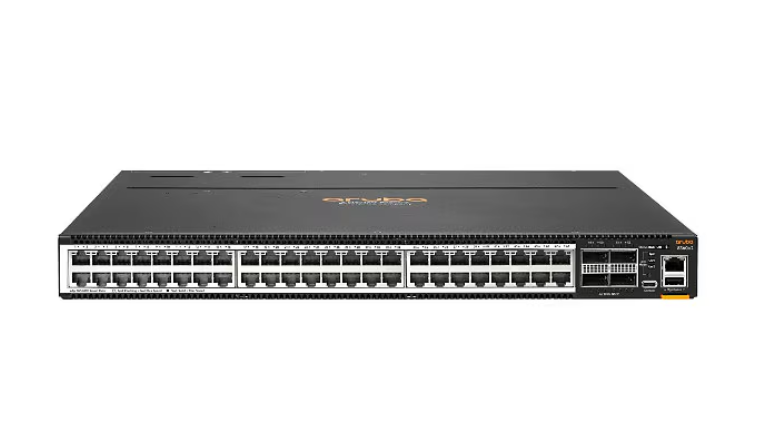

The HPE Aruba CX 8360 v2 Switch Series offers a flexible and innovative approach to addressing the application, security and scalability demands of the mobile, cloud and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and cloud data center environments.
| Category | Details |
|---|
| Overview |
| Brand | Aruba |
| Product Line | HPE Aruba CX |
| Model | 8360-48XT4C v2 |
| Manufacturer | Aruba Data Center Switches |
| Processor |
| Clock Speed | 1.8 GHz |
| Processors Installed | 1 |
| Memory |
| Flash Memory Installed | 32 GB |
| RAM Installed | 16 GB |
| Network & Communication |
| Advanced Switching | Layer 3 |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP) |
| Features | ARP support, Data Center Bridging (DCB), Dual flash images, Ethernet Ring Protection Switching (ERPS), Explicit Congestion Notification (ECN), IP Directed Broadcast, Job scheduler framework, Loopback, MSTP support, Packet storm protection, QoS, Rapid PVST+, RSTP support, RDMA over RoCE v2, REST API interface, sFlow, UDLD, VRF, VSX, VXLAN ARP/ND Suppression, VXLAN Distributed Anycast Gateway |
| Form Factor | Rack-mountable |
| Jumbo Frame Support | 9 KB |
| Manageable | Yes |
| Ports | 48 |
| Product Type | Switch |
| Remote Management | CLI, DHCP, NTP, RMON, SFTP, SNMP, TFTP |
| Routing Protocol | BGP, BGP-4, BFD, IGMP, MLD, OSPF, PIM-SM, Static IPv4 routing, Static IPv6 routing, VRRP |
| Subcategory | Network hubs and switches |
| Switching Type | 10 Gigabit Ethernet |
| Connectivity |
| Interface Provided | 1 x console Type C, 1 x management Type A, 1 x serial RJ-45, 4 x 40/100Gbit LAN QSFP28/QSFP+, 48 x 100/1000/10G |
| Port Quantity | 48 |
| Port Type | 100/1000/10000 |
| Ports Type (2nd) | 40/100 Gigabit QSFP+ / QSFP28 |
| Power |
| Frequency | 50/60 hertz |
| Hot-Plug | Yes |
| Power Provided | 550 watt |
| Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Required Voltage | AC 100-127/200-240 volt |
| Technical Information |
| Encryption | EAP-TLS |
| Humidity Range Storage | 15 – 95% (non-condensing) |
| Max Operating Temperature | 113°F (45°C) |
| Max Storage Temperature | 158°F (70°C) |
| Min Operating Temperature | 32°F (0°C) |
| Min Storage Temperature | -40°F (-40°C) |
| Operating Humidity | 15 – 95% RH (non-condensing) |
| Product Information |
| Airflow Direction | Front to back airflow |
| Authentication Method | RADIUS, SSH2, TACACS+ |
| Capacity | Host table entries (IPv4): 145,780, Host table entries (IPv6): 145,780, IGMP groups: 7000, IPv4 ACL entries (egress): 8192, IPv4 ACL entries (ingress): 65,536, IPv4 routes (Multicast): 7000, IPv4 routes (Unicast): 606,977, IPv6 ACL entries (egress): 2048, IPv6 ACL entries (ingress): 16,384, IPv6 routes (Multicast): 7000, IPv6 routes (Unicast): 606,977, MAC addresses: 212,992, MLD groups: 7000, VLANs supported: 4094 |
| Country | United States |
| Device Type | Internal power supply |
| Localization | English |
| Packaged Quantity | 1 |
| Performance | Bidirectional switching capacity: 1.76 Tbps, Forwarding capacity: 1.145 Mpps |
| Ports (2nd) Quantity | 4 |
| Rack Mounting Kit | Included |
| Included Items |
| Included Accessories | 3 fan trays, Rack kit (2 post) |
| Dimensions & Weight |
| Height | 1.7 inch |
| Height (Rack Units) | 1 |
| Weight | 18.85 lbs |
| Width | 17.4 inch |
| Depth | 16 inch |
| Physical Characteristics |
| Color Category | Black |
| Certifications & Listings |
| Compliant Standards | CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, CNS 13438 Class A, CSA 22.2 No. 60950-1, cUL No.60950-1 Second Edition, EN 50581:2012, EN 55024:2010, EN 55032:2015, EN 55035:2017, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2:2014 Class A, EN 61000-3-3:2013, EN 62368-1:2014 Second Edition, FCC CFR47 Part 15, FCC Class A certified, ICES-003 Class A, IEC 62368-1: 2014, IEC60950-1:2005, Second edition + Am1:2009 + A2:2013, UL 60950-1 Second Edition, VCCI Class A |
| ENERGY STAR Certified | No |
