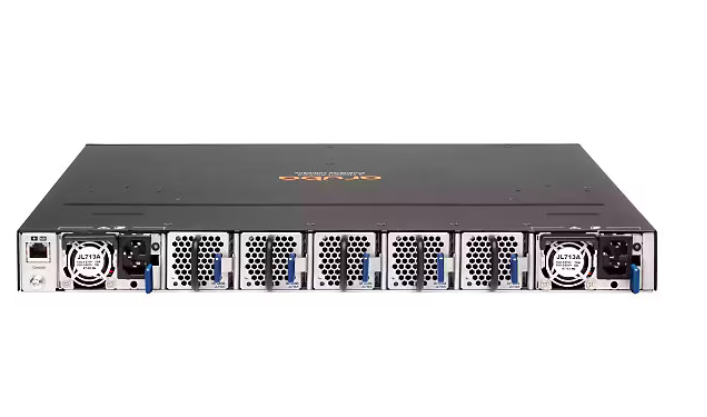

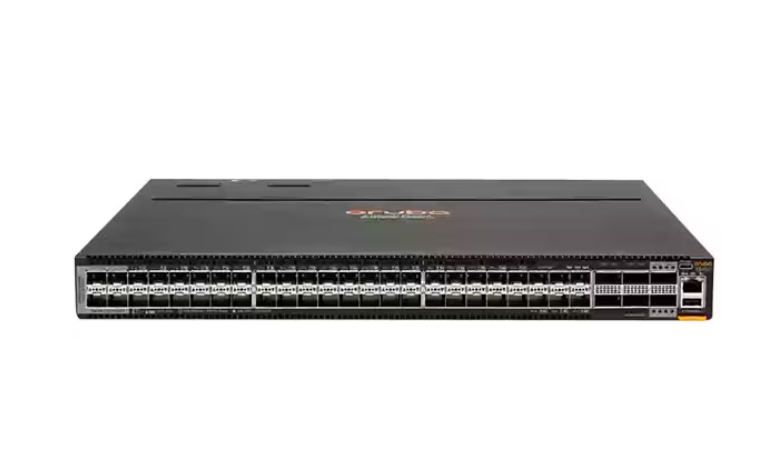

HPE Aruba CX 8360-48Y6C v2 – switch – 48 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • 48Y6C v2
  • L3
  • 48 x 1/10/25 Gigabit Ethernet SFP / SFP+ / SFP28 + 6 x 40/100 Gigabit QSFP+ / QSFP28
  • Switch
  • managed
  • rack-mountable

AED266,999.00

Add to Wishlist

Know your gear

The Aruba CX 8360 v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next generation core and aggregation layer of campuses, as well as virtual and cloud data center environments. The first switch in this series is the Aruba CX 8360-48Y6C v2 switch.
SKU: JL719C Category: Tag:
Category Details
Overview
Brand Aruba
Product Line HPE Aruba CX
Model 8360-48Y6C v2
Manufacturer Aruba
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP)
Features ARP support, Data Center Bridging (DCB), Dual flash Images, Ethernet Ring Protection Switching (ERPS), Explicit Congestion Notification (ECN), IP Directed Broadcast, Job scheduler framework, Loopback, Multiple Spanning Tree Protocol (MSTP) support, Packet storm protection, QoS, Rapid PVST+ (RPVST+), Rapid Spanning Tree Protocol (RSTP) support, RDMA over Converged Ethernet (RoCE) v2, REST API interface, sFlow, Unidirectional Link Detection (UDLD), VRF, VSX, VXLAN ARP/ND Suppression, VXLAN Distributed Anycast Gateway
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9KB
Manageable Yes
Ports 48
Product Type Switch
Remote Management CLI, DHCP, NTP, RMON, SFTP, SNMP, TFTP
Routing Protocol BGP, BGP-4, BFD, IGMP, MLD, OSPF, PIM-SM, Static IPv4/IPv6 routing, VRRP
Subcategory Network hubs and switches
Switching Type 25 Gigabit Ethernet
Connectivity
Port Quantity 48
Port Type 1/10/25 Gigabit Ethernet SFP / SFP+ / SFP28
Ports Type (2nd) 40/100 Gigabit QSFP+ / QSFP28
Technical Information
Encryption EAP-TLS
Humidity Range Storage 15 – 95% (non-condensing)
Max Storage Temperature 158°F
Min Operating Temperature 32°F
Min Storage Temperature -40°F
Operating Humidity 15 – 95% (non-condensing)
Product Information
Authentication Method RADIUS, SSH2, TACACS+
Capacity VLANs supported: 4094
Packaged Quantity 1
Performance Bidirectional switching capacity: 2.4 Tbps, Forwarding capacity: 1.145 Mpps
Ports (2nd) Quantity 6
Rack Mounting Kit Included
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 23.66 lbs
Width 17.4 inch
Depth 22 inch
Physical Characteristics
Color Category Black
Certifications & Listings
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
