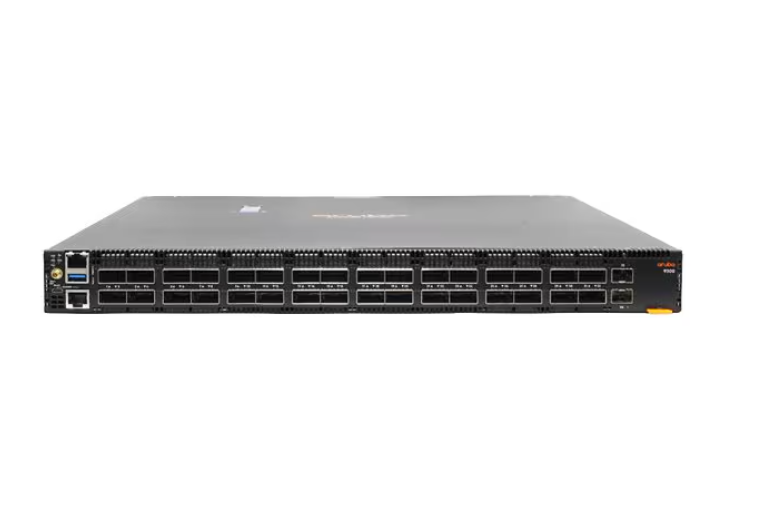

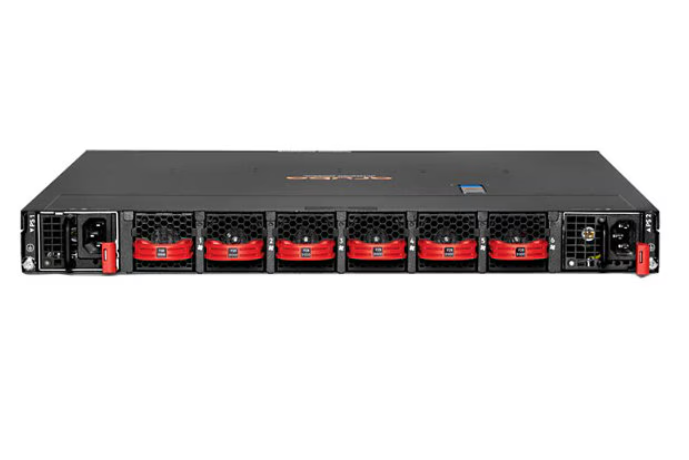

HPE Aruba CX 9300-32D 32-port 100/200/400G QSFP-DD 2-port 10G SFP+ Switch – switch – 32 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • 32D 32-port 100/200/400G QSFP-DD 2-port 10G SFP+ Switch
  • L3
  • 32 x 100/200/400 Gigabit QSFP-DD + 2 x 1 Gigabit / 10 Gigabit SFP+
  • rack-mountable
  • Switch
  • managed
  • front to back airflow
  • BTO

424,499.00 د.إ

Add to Wishlist

Know your gear

The HPE Aruba Networking CX 9300 Switch Series provides 25.6Tbps, 1U fixed configuration that supports 32 ports of 100/400GbE. This series is designed to provide flexible, cost-effective, high-density 400GbE for servers, storage, and intra-fabric connectivity. The HPE Aruba Networking CX 9300 Switch Series protects enterprises’ investment as they as they transition server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint. It supports large data center pods of up to 6,000 x 25G servers or up to 2,000 x 100G servers. This is an significant jump in scaling/density over current HPE Aruba Networking CX 8325-32C, which scales to 700 x 25G servers.
SKU: R9A29A#ABA Category: Tag:
Category Details
Overview
Brand Aruba
Product Line HPE Aruba CX
Model 9300-32D 32-port 100/200/400G QSFP-DD 2-port 10G SFP+ Switch
Manufacturer Aruba
Processor
Clock Speed 1.7 GHz
Processor Number D-1537
Processors Installed 1
Memory
Flash Memory Installed 128 GB
Memory Technology SDRAM
RAM Installed 32 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP)
Features Bidirectional Forwarding Detection (BFD), Data Center Bridging Exchange (DCBX) support, Ethernet Ring Protection Switching (ERPS), sFlow, VXLAN, VRRP support, VSX, PVRST+
Form Factor (Hubs & Switches) Rack-mountable
Manageable Yes
Ports 32
Product Type Switch
Remote Management SNMP 2c, SNMP 3
Routing Protocol BGP, OSPF, ECMP, RIP-2, RIPng, Static IPv4/IPv6 routing
Subcategory Network hubs and switches
Switching Type 100 Gigabit Ethernet
Connectivity
Interface Provided 1 x console (micro-USB), 1 x console RJ-45, 1 x management, 2 x 1/10Gbit LAN SFP+, 32 x 100/200/400Gbit LAN QSFP-DD
Port Quantity 32
Port Type 100/200/400 Gigabit QSFP-DD
Ports Type (2nd) 1 Gigabit / 10 Gigabit SFP+
Power
Frequency 50/60 hertz
Hot-Plug Hot-plug
Power Supplies Installed 2
Power Supplies Supported 2
Redundant Power Supply Yes
Redundant Power Supply Supported N+1
Required Voltage AC 100-127/200-240 volt
Technical Information
Max Operating Temperature 113 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 5 – 95% (non-condensing)
Product Information
Airflow Direction Front to back airflow
Capacity IGMP groups: 8192, IPv4 groups (Multicast): 8192, IPv4 host table capacity: 163840, IPv6 host table capacity: 81920, Packet buffer size: 132 MB
Country United States
Device Type Internal power supply
Localization English
Packaged Quantity 1
Performance Switching capacity: 12.8 Tbps, Throughput: 5 Bpps
Ports (2nd) Quantity 2
Rack Mounting Kit Included
Included Items
Included Accessories 6 fan trays, Rack kit (2 post)
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 26.12 lbs
Width 17.3 inch
Depth 23.2 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards AS/NZS, CAN/CSA-C22.2 No. 62368-1.19 Third Edition, CISPR 24:2015, CISPR 32:2015 Class A, FCC CFR47 Part 15 2010 Class A, UL 62368-1 Third Edition, VCCI 32:2016 Class A
