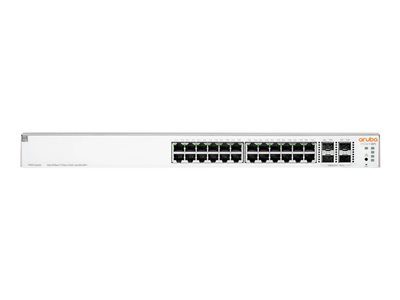

HPE Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch – switch – 28 ports – managed – rack-mountable

Add to Wishlist
HPE Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch – Switch – L3 – managed – 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ – rack-mountable – PoE (370 W)

AED2,999.00

Add to Wishlist

The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely.

Category: Tag:
Device Type Switch – 28 ports – L3 – managed
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE) PoE
PoE Budget 370 W
Performance Switching capacity: 128 Gbps ¦ Throughput: 95.23 Mpps ¦ Latency (1 Gbps): 2.4 µs ¦ Latency (10 Gbps): 1.3 µs
Capacity Link aggregation ports: 8 ¦ IPv4 routes (static): 32 ¦ VLANs supported: 256 ¦ Access Control Entries (ACEs) per ACL: 480 ¦ Packet buffer size: 1.5 MB
MAC Address Table Size 16000 entries
Jumbo Frame Support 9216 bytes
Routing Protocol Static IP routing
Remote Management Protocol SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS
Encryption Algorithm SSL
Authentication Method RADIUS
Features Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Trusted Platform Module (TPM), LLDP support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Class of Service (CoS), BPDU Filter, PoE Class 4
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af
Processor 1 x ARM: 800 MHz
RAM 512 MB SDRAM
Flash Memory 256 MB
Status Indicators Port status, power, PoE
Expansion / Connectivity Interfaces: 24 x 10/100/1000 Base-T RJ-45 PoE – 370 W ¦ 4 x 1/10Gbit LAN SFP+
Power Power Device: Internal power supply ¦ Voltage Required: AC 120 V (50/60 Hz) ¦ Power Consumption Operational: 439 Watt
Miscellaneous MTBF: 71 years
Compliant Standards CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN 55024:2010, CISPR 35, SSL, EN 55035:2017
Localization English / United States
Dimensions & Weight Width: 17.4 in ¦ Depth: 10.4 in ¦ Height: 1.7 in ¦ Weight: 8.09 lbs
Manufacturer Warranty Service & Support: Limited warranty – lifetime
Environmental Parameters Min Operating Temperature: 32 °F ¦ Max Operating Temperature: 104 °F ¦ Humidity Range Operating: 15 – 95% (40 °C) ¦ Min Storage Temperature: -40 °F ¦ Max Storage Temperature: 158 °F ¦ Humidity Range Storage: 15 – 95% (60 °C)
