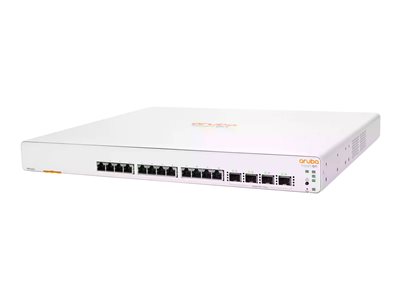

HPE Aruba Instant On 1960 12XGT 4SFP+ Switch – switch – 12 ports – smart – rack-mountable

Add to Wishlist
HPE Aruba Instant On 1960 12XGT 4SFP+ Switch – Switch – L2+ – smart – 12 x 100/1000/10000 + 4 x 10 Gigabit SFP+ – desktop, rack-mountable

AED9,699.00

Add to Wishlist

Aruba Instant On 1960 switches are advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple.

Aruba Instant On 1960 switches are made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance.

SKU: JL805A#B2E Category: Tag:
Device Type Switch – 12 ports – L2+ – smart – stackable
Enclosure Type Desktop, rack-mountable
Subtype 10 Gigabit Ethernet
Ports 12 x 10Gbit LAN RJ-45 + 4 x 10Gbit LAN SFP+
Performance Latency (100 Mbps): 7.4 µs ¦ Latency (1 Gbps): 4.2 µs ¦ Latency (10 Gbps): 1.1 µs ¦ Throughput: 238 Mpps ¦ Switching capacity: 320 Gbps
Capacity IPv4 routing table entries: 512 ¦ IPv6 routing table entries: 512
MAC Address Table Size 16000 entries
Jumbo Frame Support 9216 bytes
Routing Protocol IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD
Remote Management Protocol SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SCP, RADIUS
Encryption Algorithm SSL
Authentication Method RADIUS
Features Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Trusted Platform Module (TPM), Cable Diagnostics Function, DHCP relay, Port Security, port based access control, DHCP client, Energy Efficient Ethernet, Class of Service (CoS), cloud managed, IP source guard, Internet Control Message Protocol (ICMP), dual image support, DNS client, LLDP-MED, ingress rate limiting, protected ports, BPDU Filter, Weighted Round Robin (WRR), ARP filtering, DSCP prioritization, auto voice VLAN, loop protection
Compliant Standards IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az
Processor 1 x 2 GHz
Status Indicators Port status
Expansion / Connectivity Interfaces: 12 x 10Gbit LAN RJ-45, 4 x 10Gbit LAN SFP+
Power Internal power supply
Voltage Required AC 100-240 V (50/60 Hz)
Power Consumption Operational 60 Watt
Miscellaneous Rack Mounting Kit Included
MTBF 88.8 years
Compliant Standards Plug and Play, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, VCCI Class A, IEC 60825-1 Class 1, FCC CFR47 Part 15 A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 62368-1 Second Edition, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, EN 60825-1 Class 1, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 55035, EN 55032/CISPR 32 Class A, CISPR 35, IEC 62368-1 Second Edition, UL 62368-1 Third Edition, EN 62368-1 Third Edition, IEC 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition
Dimensions & Weight Width: 17.4 in ¦ Depth: 13.8 in ¦ Height: 1.7 in ¦ Weight: 9.48 lbs
