Aruba Instant On 1960 Switches are advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance.
switch ports

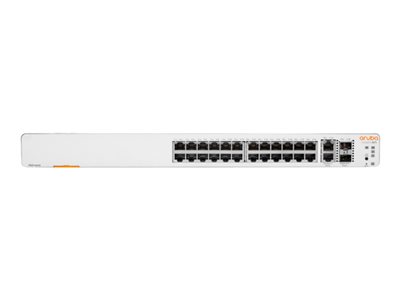

HPE Aruba Instant On 1960 24G 2XGT 2SFP+ Switch – switch – 24 ports – managed – rack-mountable
HPE Aruba Instant On 1960 24G 2XGT 2SFP+ Switch – Switch – managed – 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T – rack-mountable
AED4,499.00
Device Type | Switch – 24 ports – managed |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T |
Performance | Throughput: 95 Mpps <br> Switching capacity: 128 Gbps <br> Latency (100 Mbps): 4.4 µs <br> Latency (1 Gbps): 2.2 µs <br> Latency (10 Gbps): 1.1 µs |
Capacity | MAC address entries: 16000 <br> IPv4 routes (static): 32 <br> IPv6 routes (static): 32 |
MAC Address Table Size | 16000 entries |
Jumbo Frame Support | 9216 bytes |
Routing Protocol | Static IP routing |
Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS |
Authentication Method | RADIUS |
Features | Flow control, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Trusted Platform Module (TPM), fanless, Link Aggregation Control Protocol (LACP), Class of Service (CoS), Energy-Efficient Ethernet (EEE), BPDU Filter, auto voice VLAN, LLDP-MED |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ab (LLDP) |
Processor | 1 x ARM: 800 MHz |
Status Indicators | Port status, power |
Expansion / Connectivity | Interfaces: <br> – 24 x 10/100/1000 Base-T RJ-45 <br> – 2 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ SFP+ <br> – 2 x 10GBase-T RJ-45 |
Power | Power Device: Internal power supply <br> Voltage Required: AC 100-240 V (50/60 Hz) |
Miscellaneous | MTBF: 123 years <br> Compliant Standards: EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, VCCI Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, EN 55032:2015 Class A, CISPR 32:2015 Class A, UL 62368-1, EN 55035, CISPR 35, IEC/EN 60825-1:2014 Class 2, IEC/EN 62368-1, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, FCC CFR47 Part 15 B Class A 2018 |
Dimensions & Weight | Width: 17.4 in <br> Depth: 13.8 in <br> Height: 1.7 in <br> Weight: 8.6 lbs |
Environmental Parameters | Min Operating Temperature: 32 °F <br> Max Operating Temperature: 104 °F <br> Humidity Range Operating: 15 – 95% (40 °C) <br> Min Storage Temperature: -40 °F <br> Max Storage Temperature: 158 °F |
