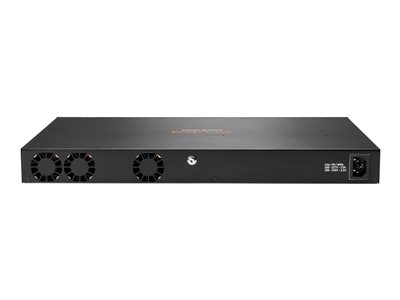

HPE Aruba Networking CX 6200F 24G 4SFP+ Switch – switch – Max. Stacking Distance 10 kms – 24 ports – managed – rack-mountable

Add to Wishlist
HPE Aruba Networking CX 6200F 24G 4SFP+ Switch – Switch – Max. Stacking Distance 10 kms – L3 – managed – 24 x 10/100/1000 + 4 x 100/1000/10G SFP+ – front and side to back – rack-mountable

AED18,099.00

Add to Wishlist

The HPE Aruba Networking CX 6200 switch series is a next-generation family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. Created for game-changing operational efficiency with built-in analytics and automation, the HPE Aruba Networking CX 6200 switch series switches provide an enterprise-class access layer solution that’s simple and secure.

Built from the ground up with a combination of cutting-edge hardware, software and analytics and automation tools, the stackable HPE Aruba Networking CX 6200 switch series are part of the HPE Aruba Networking CX switching portfolio. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the HPE Aruba Networking CX 6200 brings industry leading monitoring and troubleshooting capabilities to the access layer.

A powerful Aruba Gen7 ASIC architecture delivers reliable performance and enterprise-class feature support with flexible programmability for tomorrow’s applications. Flexible, modular switches offer enhanced resiliency and redundancy with hot-swappable power supplies and fans.

Aruba Dynamic Segmentation extends Aruba’s foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.

SKU: JL724B#ABG Category: Tag:
Device Type Switch – 24 ports – L3 – managed – stackable
Enclosure Type Front and side to back rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 + 4 x 100/1000/10G SFP+ (uplink/stacking)
Performance Switching capacity: 128 Gbps ¦ Throughput: 95.2 Mpps ¦ Latency (1 Gbps): 2.28 µs ¦ Latency (10 Gbps): 1.46 µs ¦ Stacking bandwidth: 40 Gbps
Capacity Packet buffer size: 8 MB ¦ IPv4 ACL entries (ingress): 5120 ¦ IPv6 ACL entries (ingress): 1280 ¦ MAC ACL entries (ingress): 5120 ¦ IPv4 ACL entries (egress): 2048 ¦ IPv6 ACL entries (egress): 512 ¦ IPv4 host table capacity: 8192 ¦ IPv6 host table capacity: 8192 ¦ IPv4 routes (Unicast): 2048 ¦ IPv6 routes (Unicast): 1024 ¦ IGMP groups: 1024 ¦ MLD groups: 1024
MAC Address Table Size 32768 entries
Jumbo Frame Support 9220 bytes
Max Units In A Stack 8
Routing Protocol RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, MLDv2, MLD
Remote Management Protocol RMON, CLI, MIB
Encryption Algorithm SSL, FIPS 140-2
Authentication Method Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features Virtual Route Redundancy Protocol (VRRP) support, Uni-Directional Link Detection (UDLD), Deficit Weighted Round Robin (DWRR), Class of Service (CoS), Type of Service (ToS), Bridge protocol data unit (BPDU), Rapid PVST+ (RPVST+), Link Layer Discovery Protocol, Unsupported Transceiver Mode (UTM), Egress Queue Shaping (EQS), Address Resolution Protocol
Compliant Standards IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX
Processor 1 x ARM Cortex-A72: 1.8 GHz
RAM 8 GB DDR4 SDRAM
Flash Memory 16 GB
Expansion / Connectivity Interfaces: 24 x 10/100/1000 Base-T RJ-45 ¦ 4 x 100/1000/10G SFP+ uplink/stacking ¦ 1 x USB-C console ¦ 1 x console RJ-45 ¦ 1 x management ¦ 1 x USB Type A host
Power Power Device: Internal power supply
Voltage Required AC 100-120/200-240 V (50/60 Hz)
80 PLUS Certification 80 PLUS Silver
Miscellaneous Included Accessories: 2-Post Rack Kit
Compliant Standards EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, EN 61000-3-3:2013, EN 60825-1:2014, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, CISPR 35: 2016, UL 62368-1 Third Edition, EN 62368-1:2020+A11:2020, KS C 9832, IEC 62368-1:2018 Third Edition, EN 55035:2017+A11:2020, CNS 15598-1:2020, CNS 15936: 2020 Class A, CAN/CSA C22.2 No. 62368-1:19 Third Edition, GB 4943.1-2022, EN 55032:2015 /A11:2020, Class A, FCC 47 CFR part 15B:2021 Class A, ICES-003 Issue 7: 2020 Class A, VCCI-CISPR 32 Class A, CISPR 32:2016 Class A, AS/NZS CISPR 32:2015 Class A
Localization English / Austria
Software / System Requirements OS Required: AOS-CX
Dimensions & Weight Width: 17.4 in ¦ Depth: 11.2 in ¦ Height: 1.7 in ¦ Weight: 8.31 lbs
