AED26,899.00

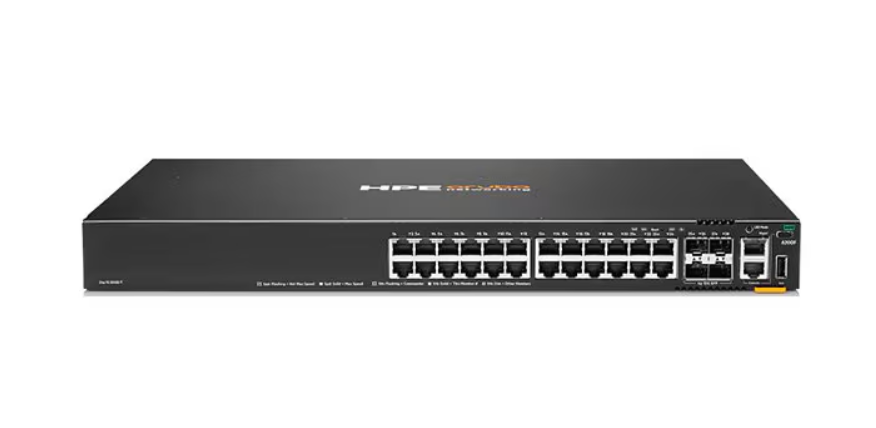

The HPE Aruba Networking CX 6200F TAA Switch is ideal for enterprise branch offices, campuses and SMB networks. Created for game-changing operational efficiency with built-in analytics and automation, it’s an enterprise-class access layer solution that’s simple and secure. This switch is based on AOS-CX, a database-driven operating system that automates and simplifies many critical and complex network tasks. A built-in time series database enables customers and developers to utilize software scripts for historical troubleshooting and analysis of past trends.
| Category | Specification |
|---|
| Overview |
| Brand | Aruba |
| Product Line | HPE Aruba Networking CX |
| Model | 6200F 24G 4SFP+ TAA Switch |
| Manufacturer | Aruba |
| Processor |
| Clock Speed | 1.8 GHZ |
| Processor Brand | ARM |
| Processor Number | Cortex-A72 |
| Processors Installed | 1 |
| Memory |
| Flash Memory Installed | 16 GB |
| Memory Technology | DDR4 SDRAM |
| RAM Installed | 8 GB |
| Network & Communication |
| Advanced Switching | Layer 3 |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab |
| Features | Address Resolution Protocol, Bridge protocol data unit (BPDU), Class of Service (CoS), Deficit Weighted Round Robin (DWRR), Egress Queue Shaping (EQS), Link Layer Discovery Protocol, Rapid PVST+ (RPVST+), Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unsupported Transceiver Mode (UTM), Virtual Route Redundancy Protocol (VRRP) support |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 9220 bytes |
| MAC Address Table Size | 32768 entries |
| Manageable | Yes |
| Max Units In A Stack | 8 |
| Ports | 24 |
| Product Type | Switch |
| Remote Management | CLI, MIB, RMON |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, MLD, MLDv2, OSPFv2, OSPFv3, RIP-2 |
| Stackable | Stackable |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
| Connectivity |
| Interface Provided | 1 x console RJ-45, 1 x management, 1 x USB Type A host, 1 x USB-C console, 24 x 10/100/1000 Base-T RJ-45, 4 x 100/1000/10G SFP+ uplink/stacking |
| Port Quantity | 24 |
| Port Type | 10/100/1000 |
| Ports Type (2nd) | 100/1000/10G SFP+ |
| Power |
| Frequency | 50/60 hertz |
| Power Provided | 200 watt |
| Required Voltage | AC 100-120/200-240 volt |
| 80 PLUS Certification | 80 PLUS Silver |
| Technical Information |
| Encryption | FIPS 140-2, SSL |
| Humidity Range Storage | 5 – 95% (non-condensing) |
| Max Operating Temperature | 113 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Min Operating Temperature | 32 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| Operating Humidity | 5 – 95% (non-condensing) |
| Operating System Required | AOS-CX |
| Product Information |
| Airflow Direction | Front and side to back |
| Authentication Method | RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+ |
| Capacity | IGMP groups: 1024, IPv4 ACL entries (egress): 2048, IPv4 ACL entries (ingress): 5120, IPv4 host table capacity: 8192, IPv4 routes (Unicast): 2048, IPv6 ACL entries (egress): 512, IPv6 ACL entries (ingress): 1280, IPv6 host table capacity: 8192, IPv6 routes (Unicast): 1024, MAC ACL entries (egress): 2048, MAC ACL entries (ingress): 5120, MLD groups: 1024, Packet buffer size: 8 MB |
| Country | United States |
| Device Type | Internal power supply |
| Localization | English |
| Packaged Quantity | 1 |
| Performance | Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs, Stacking bandwidth: 40 Gbps, Switching capacity: 128 Gbps, Throughput: 95.2 Mpps |
| Ports (2nd) Quantity | 4 |
| Included Items |
| Included Accessories | 2-Post Rack Kit |
| Dimensions & Weight |
| Height | 1.7 inch |
| Height (Rack Units) | 1 |
| Weight | 8.31 lbs |
| Width | 17.4 inch |
| Depth | 11.2 inch |
| Physical Characteristics |
| Color Category | Black |
| Certifications & Listings |
| Compliant Standards | AS/NZS CISPR 32:2015 Class A, CAN/CSA C22.2 No. 62368-1:19 Third Edition, CISPR 32:2016 Class A, CISPR 35: 2016, CNS 15598-1:2020, CNS 15936: 2020 Class A, EN 55032:2015 /A11:2020, Class A, EN 55035:2017+A11:2020, EN 60825-1:2014, EN 61000-3-2, EN 61000-3-2:2019, EN 61000-3-3, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, EN 62368-1:2020+A11:2020, FCC 47 CFR part 15B:2021 Class A, GB 4943.1-2022, ICES-003 Issue 7: 2020 Class A, IEC 60825-1:2014 Class 1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1: 2014 Second Edition, IEC 62368-1:2018 Third Edition, KS C 9832, Laser Class 1, UL 62368-1 Third Edition, VCCI-CISPR 32 Class A |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TAA Compliant | Yes |
