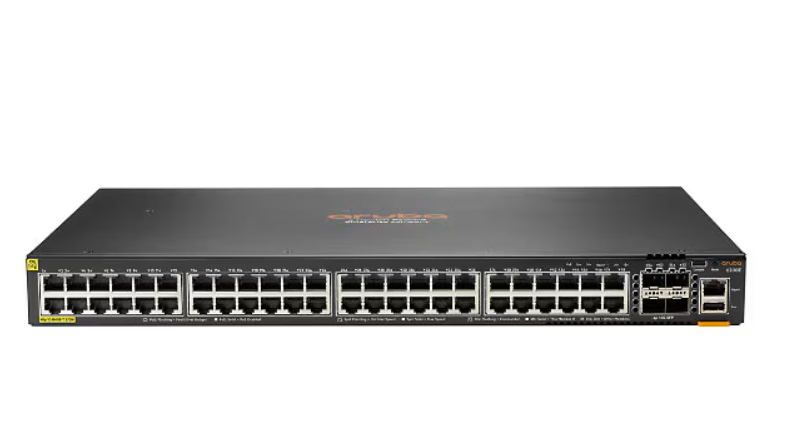

HPE Aruba Networking CX 6200F 48G Class 4 PoE 4SFP+ 370W TAA Switch – switch – Max. Stacking Distance 10 kms – 48 ports

Add to Wishlist

Quick tech specs

  • Switch
  • L3
  • 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
  • rack-mountable
  • TAA Compliant
  • Max. Stacking Distance 10 kms
  • managed
  • front and side to back
  • PoE+ (370 W)

AED47,599.00

Add to Wishlist

Know your gear

The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Network Analytics Engine, the HPE Aruba Networking CX 6200 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy. Make your network ready for tomorrow’s unpredictable demands with a powerful Aruba Gen7 ASIC architecture to deliver fast, non-blocking performance. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high speed uplinks and up to 1440W of PoE to support IoT devices such as security cameras and wireless APs.
SKU: S0M89A#ABA Category: Tag:
Category Specification
Overview
Brand Aruba
Product Line HPE Aruba Networking CX
Model 6200F 48G Class 4 PoE 4SFP+ 370W TAA Switch
Manufacturer Aruba
Processor
Clock Speed 1.8 GHZ
Processor Brand ARM
Processor Number Cortex-A72
Processors Installed 1
Memory
Flash Memory Installed 16 GB
Memory Technology DDR4 SDRAM
RAM Installed 8 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3az
Features Address Resolution Protocol, Bridge protocol data unit (BPDU), Class of Service (CoS), Deficit Weighted Round Robin (DWRR), Egress Queue Shaping (EQS), Link Layer Discovery Protocol, PoE Class 4, Rapid PVST+ (RPVST+), Trusted Platform Module (TPM), Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unsupported Transceiver Mode (UTM), Virtual Route Redundancy Protocol (VRRP) support
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9220 bytes
MAC Address Table Size 32768 entries
Manageable Yes
Max Units In A Stack 8
PoE Budget 370 watt
Ports 48
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI, MIB, RMON
Routing Protocol IGMP, IGMPv2, IGMPv3, MLD, MLDv2, OSPFv2, OSPFv3, RIP-2
Stackable Stackable
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 1 x console RJ-45, 1 x management, 1 x USB Type A host, 1 x USB-C console, 4 x 100/1000/10G SFP+ uplink, 48 x 10/100/1000 Base-T (PoE+) RJ-45 PoE Class 4 – 30 W
Port Quantity 48
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power
Power Provided 500 watt
Required Voltage AC 100-120/200-240 volt
Technical Information
Encryption FIPS 140-2, SSL
Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 113 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
Operating Humidity 5 – 95% (non-condensing)
Operating System Required AOS-CX
Product Information
Airflow Direction Front and side to back
Authentication Method RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Capacity Packet buffer size: 8 MB
Country United States
Device Type Internal power supply
Localization English
Packaged Quantity 1
Performance Latency (1 Gbps): 2.28 µs, Latency (10 Gbps): 1.46 µs
Ports (2nd) Quantity 4
Included Items
Included Accessories 2-Post Rack Kit
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 10.74 lbs
Width 17.4 inch
Depth 12 inch
Physical Characteristics
Color Category Gray
Certifications & Listings
Compliant Standards AS/NZS CISPR 32:2015 Class A, CAN/CSA C22.2 No. 62368-1:19 Third Edition, CISPR 32:2016 Class A, CISPR 35: 2016, CNS 15598-1:2020, CNS 15936: 2020 Class A, EN 55032:2015 /A11:2020, Class A, EN 55035:2017+A11:2020, EN 60825-1:2014, EN 61000-3-2, EN 61000-3-2:2019, EN 61000-3-3, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, EN 62368-1:2020+A11:2020, EN 63000:2018, FCC 47 CFR part 15B:2021 Class A, GB 4943.1-2022, ICES-003 Issue 7: 2020 Class A, IEC 60825-1:2014 Class 1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1: 2014 Second Edition, IEC 62368-1:2018 Third Edition, IEC 63000:2018, KC 62368-1: 2021-08, KS C 9832, Laser Class 1, UL 62368-1 Third Edition, VCCI-CISPR 32 Class A
ENERGY STAR Certified No
EPEAT Compliant No
TAA Compliant Yes
TCO Certified No
