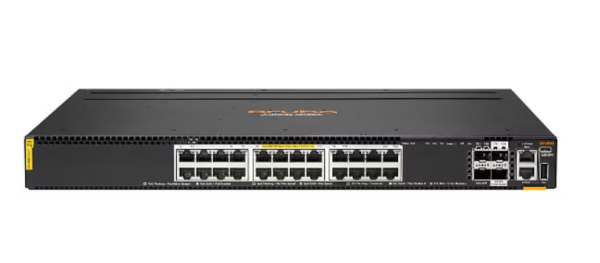

HPE Aruba Networking CX 6300M 24p Smart Rate 1G/2.5G/5G/10G Class6 PoE 2p 50G 2p 25G Switch – switch – 24 ports –

Add to Wishlist

Quick tech specs

  • Switch
  • managed
  • rack-mountable
  • L3
  • 24 x 100/1000/2.5G/5G/10GBase- -T (4PPoE) + 2 x 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) + 2 x 10 Gigabit / 25 Gigabit SFP56
  • 4PPoE

AED94,499.00

Add to Wishlist

Know your gear

The HPE Aruba 6300M Switch Series provides unrivaled visibility, with built-in analytics for real-time monitoring and troubleshooting to assist in the resolution of problems faster. It provides high-density HPE Smart Rate multi-gigabit Ethernet with 60W PoE on each port for a total of 2880W. Full-density HPE Smart Rate (1/2.5/5GbE) multi-gigabit and up to 90W PoE, SFP+ model and switch bundle with power-to-port airflow for data center 1GbE ToR and OOBM deployments are included in the series.

High-speed 10GbE/25GbE/50GbE uplinks are built in, with intelligent monitoring and visibility provided by the Aruba Network Analytics Engine.

SKU: R8S89A Category: Tag:
Category Specification
Overview
Brand Aruba
Product Line HPE Aruba Networking CX
Model 6300M 24p Smart Rate 1G/2.5G/5G/10G Class6 PoE 2p 50G 2p 25G Switch
Manufacturer Aruba
Processor
Clock Speed 1.8 GHz
Processor Brand ARM
Processors Installed 1
Memory
Flash Memory Installed 32 GB
Memory Technology DDR4 SDRAM
RAM Installed 8 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q
Features ACL support, Aruba VSF, Auto-uplink, BPDU, Broadcast storm protection, QoS
Form Factor Rack-mountable
Jumbo Frame Support 9198 bytes
MAC Address Table Size 32768 entries
Manageable Yes
Ports 24
Power Over Ethernet (PoE) 4PPoE
Product Type Switch
Remote Management CLI, RMON, SFTP, SNMP 2c/3, SSH, Telnet, TFTP
Routing Protocol BGP, OSPF, IGMP, PIM, VRRP, etc.
Stackable Yes
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
QSFP Slots 10 Gigabit / 25 Gigabit SFP56
Connectivity
Interface Provided 24 x 100/1000/2.5G/5G/10GBase-T RJ-45, 2 x 10/25/50G SFP56
Port Quantity 24
Port Type 100/1000/2.5G/5G/10GBase-T (4PPoE)
Ports Type (2nd) 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
Power
Frequency 50/60 hertz
Hot-Plug Hot-plug
Power Supplies Installed 1
Power Supplies Supported 2
Redundant Power Supply Optional
Redundant Power Supply Supported 1+1 (with optional power supply)
Technical Information
Humidity Range Storage 15 – 95% (non-condensing)
Max Operating Temperature 113°F
Max Storage Temperature 158°F
Min Operating Temperature 32°F
Min Storage Temperature -40°F
Operating Humidity 15 – 95% (non-condensing)
Product Information
Authentication Method RADIUS, Secure Shell (SSH/SSH2), TACACS+
Capacity IGMP groups: 8192, IPv4/IPv6 ACL entries, MAC ACL entries, etc.
Device Type Internal power supply
Packaged Quantity 1
Performance Latency: 1G: 4.24 µs, 10G: 1.5 µs, Stacking BW: 200 Gbps, Throughput: 654 Mpps
Rack Mounting Kit Included
Included Items
Included Accessories Rack kit (2 post)
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 11.6 lbs
Width 17.4 inch
Depth 15.2 inch
Physical Characteristics
Color Category Black
