Networking

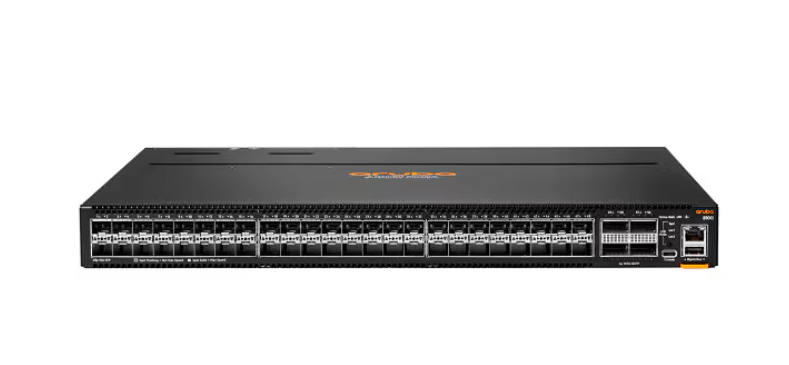

HPE Aruba Networking CX 8100 48x10G SFP+ 4×40/100G QSFP28 Switch – switch – 48 ports – managed – rack-mountable
Quick tech specs
- Switch
- managed
- front to back airflow
- L3
- 48 x 1 Gigabit / 10 Gigabit SFP / SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28
- rack-mountable
AED140,599.00
Know your gear
The HPE Aruba Networking CX 8100 Switch Series serves the needs of modern campus core and aggregation as well as dynamic top-of-rack (ToR) data center environments, offering a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT. The HPE CX 8100 Switches are based on AOS-CX, a modern software system that automates and simplifies critical network tasks, offers programmability with REST APIs and Python scripts, and delivers enhanced fault tolerance and zero-service disruption during planned or unplanned control-plane events. Real-time, network-wide visibility and analytics are also available in every switch. The series includes industry-leading line rate ports with 1/10GbE (SFP/SFP+) and 40/100GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G. These switches are great for customers needing 1GbE/10GbE with a mix of fiber and copper ports.
| Category | Details |
|---|
| Overview |
| Brand | Aruba |
| Product Line | HPE Aruba Networking CX |
| Model | 8100 48x10G SFP+ 4×40/100G QSFP28 Switch |
| Manufacturer | Aruba Data Center Switches |
| Processor |
| Clock Speed | 1.8 GHz |
| Processor Brand | ARM |
| Processor Number | Cortex-A72 |
| Processors Installed | 1 |
| Memory |
| Flash Memory Installed | 32 GB |
| RAM Installed | 16 GB |
| Network & Communication |
| Advanced Switching | Layer 3 |
| Compliant Standards | IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z |
| Features | Address Resolution Protocol, Aruba VSX, BFD, BGP-4, BPDU, DCB, Dynamic VXLAN with BGP-EVPN, ECMP, ERPS, GRE, Layer 2 switching, Layer 3 routing, NTP, OSPF, Policy-based routing, Port mirroring, QoS, Rapid PVST+, RoCE, RoCE v2, sFlow, UDLD |
| Form Factor | Rack-mountable |
| Jumbo Frame Support | 9000 bytes |
| MAC Address Table Size | 147456 entries |
| Manageable | Yes |
| Ports | 48 |
| Product Type | Switch |
| Remote Management | MIB, SNMP, SNMP 2, SNMP 3 |
| Routing Protocol | BGP-4, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, RIP-2 |
| Subcategory | Network hubs and switches |
| Switching Type | 10 Gigabit Ethernet |
| Connectivity |
| Interface Provided | 1 x serial RJ-45, 1 x USB Type A AUX, 1 x USB-C console, 4 x 40/100Gbit LAN QSFP28/QSFP+ uplink, 48 x Gigabit / 10Gbit LAN SFP+ |
| Port Quantity | 48 |
| Port Type | 1 Gigabit / 10 Gigabit SFP / SFP+ |
| Ports Type (2nd) | 40 Gigabit QSFP+ / 100 Gigabit QSFP28 |
| Power |
| Frequency | 50/60 hertz |
| Hot-Plug | Hot-plug |
| Power Supplies Installed | 2 |
| Power Supplies Supported | 2 |
| Required Voltage | AC 100-127/200-240 volt |
| Technical Information |
| Humidity Range Storage | 15 – 95% (non-condensing) |
| Max Operating Temperature | 113°F |
| Max Storage Temperature | 158°F |
| Min Operating Temperature | 32°F |
| Min Storage Temperature | -40°F |
| Operating Humidity | 15 – 95% (non-condensing) |
| Operating System Required | AOS-CX |
| Product Information |
| Airflow Direction | Front to back airflow |
| Authentication Method | RADIUS, SSH, SSH2, TACACS+ |
| Capacity | IGMP groups: 4000, IPv4 ACL (egress): 2048, IPv4 ACL (ingress): 16384, IPv4 routes (Multicast): 4096, IPv6 ACL (egress): 512, IPv6 ACL (ingress): 4096, IPv6 routes (Multicast): 4096, Link aggregation groups: 54, MAC ACL (egress): 2048, MAC ACL (ingress): 16384, VLANs supported: 1024, MLD groups: 4000, Packet buffer: 32 MB |
| Device Type | Internal power supply |
| Packaged Quantity | 1 |
| Performance | Switching capacity: 1.76 Tbps |
| Ports (2nd) Quantity | 4 |
| Included Items |
| Included Accessories | 2-Post Rack Kit, 3 fan trays |
| Dimensions & Weight |
| Height | 1.7 inch |
| Height (Rack Units) | 1 |
| Weight | 18.5 lbs |
| Width | 17.4 inch |
| Depth | 16 inch |
| Physical Characteristics |
| Color Category | Black |
| Certifications & Listings |
| Compliant Standards | AS/NZS CISPR 32:2015 Class A, CISPR 35, CISPR-32 Class A, CNS 13438 Class A, Directive 2014/35/EU, EMC 2014/30/EU, EN 55032:2015, EN 55035:2017, EN 60825-1:2014, EN 61000-3-2:2019, EN 61000-3-3:2013, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 62368-1:2014 Second Edition, EN 62368-1:2020 3rd Edition, EN 63000:2018, FCC CFR 47 Part 15: 2018 Class A, ICES-003 Class A, IEC 60825-1:2014 Class 1, IEC 61000-3-2:2019, IEC 61000-3-3:2013, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1: 2014, IEC 62368-1:2018, KN32 Class A, Laser Class 1, UL62368-1/CAN/CSA C22.2 No.62368-1, VCCI Class A |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
