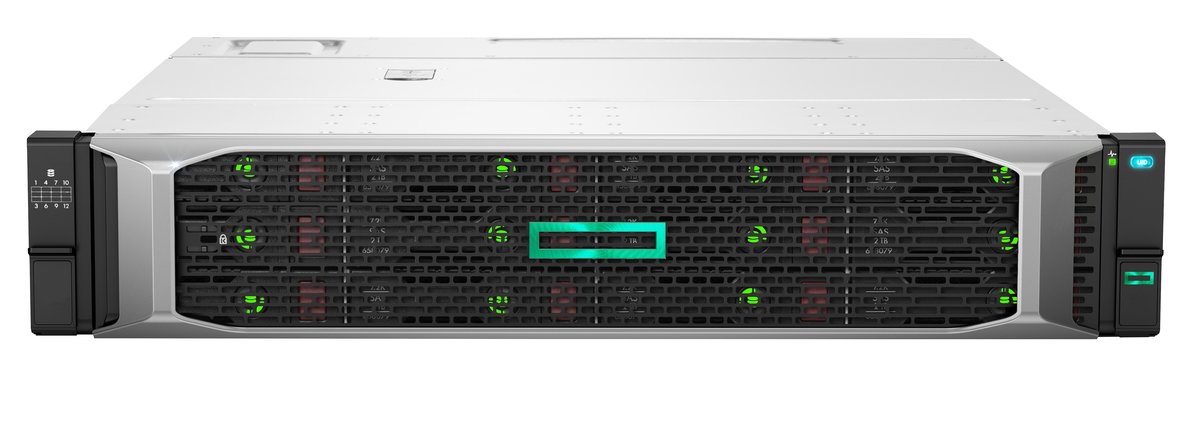

HPE D3610 – Storage enclosure
12 bays (SATA-600 / SAS-3) – HDD 10 TB x 12 – rack-mountable – 2U
HPE D3610 w/12 10TB 12G SAS 7.2K LFF (3.5in) Midline Smart Carrier HDD 120TB Bundle
Affordable Storage for Capacity Demand
- HPE D3000 Enclosures 12 Gb SAS provides a higher level of redundancy and reliability, reducing single-points-of-failure within the storage network.
- The modular platform provides investment protection by allowing purchases based on your current need and future plans without hidden management fees.
- Increase your data speed with enterprise-class, dual-port SAS drives as need and budget dictate.
- The HPE D3610 and HPE D3710 standardizing on Gen10 branding/industrial design to align with HPE ProLiant Gen10/Gen10+ Servers.
Flexible and Scalable with Room to Expand
- The HPE D3000 Enclosures give you the flexibility to mix and match SAS, SATA and Solid State drives in the same enclosure, and extend the benefit of tiered storage to your customers.
- Designed to give you room to expand as your storage demands increase, the HPE D3610 LFF can grow to 96 drives by daisy-chaining up to eight HPE D3610 LFF enclosures from a single controller port.
- With the HPE D3710 SFF you can increase to 200 drives or up to eight HPE D3710 SFF enclosures from a single controller port.
- Smart Array Controllers allow mixing D3600 or the D3610 and the D3700 or the D3710 enclosures for expansion, up to four D3600 or D3610 and four D3700 or D3710 (4x LFF and 4x SFF) allowing for expansion up to 148 drives.
- Solid state drive support for up to 25 drives per Smart Array Controllers on all HPE D3000 models.
Easy to Manage
- The HPE D3000 Enclosures support the HPE SmartDrive Carrier, enabling a single set of common drives for Gen10 and Gen 10+ ProLiant servers and D3000 Enclosures.
- The HPE D3000 Enclosures uses familiar HPE ProLiant management tools including HPE Systems Insight Manager and the HPE Array Configuration Utility (ACU) software.
- The HPE D3000 Enclosures are compatible with selected HPE Smart Array SAS Controllers and HBAs.
- Little IT expertise is required to manage the enclosures.
Software-Defined Storage
- Microsoft Windows 2012 Storage Spaces support Gen9 ProLiant servers and H241 HBA.
Specifications
| TechnicalSpecifications | |
|---|---|
| Capacity | 120 TB |
| Form factor | 2U |
| Storage expansion options | HPE D3000 Enclosures support up to eight enclosures cascading off single x4 SAS port |
| Systems Insight Manager support | Yes |
| Storage mirroring support | Yes |
| SAN backup support | No |
| Host interface | 12 Gb/s SAS |
| Drive description | 12 HPE 10 TB LFF SAS drives in Smart carriers included |
| Storage controller | Smart Array E208e-p Smart Array P408e-p |
| Compatible operating systems | Microsoft Windows Server 2019, Microsoft Windows Server 2016, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 Essentials, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), VMware ESX depending on host connectivity |
| Warranty | 3-year parts, no labor, no onsite support coverage. For more warranty information refer to http://h20564.www2.hpe.com/hpsc/wc/public/home. |
| Product dimensions (metric) | 8.7 x 44.8 x 59.8 cm |
| Weight | 27.2 kg |
Has your business exceeded your storage capacity? Manage your small and midrange business’ growing storage needs by deploying the HPE D3000 Enclosures, the next generation 12 Gb SAS low-cost, high-capacity, tiered external storage system. The HPE D3000 Enclosures are ideal for your small application environments, remote offices and departmental locations. The 12 Gb SAS enclosures – large form factor (LFF) D3600/D3610 with 12 drive bays and small form factor (SFF) D3700/D3710 with 25 drive bays-offer flexible, modular solutions to simplify capacity expansion of HPE ProLiant server and HPE BladeSystem environments to external storage without having to make the full move to SAN or NAS. This allows you to buy what is needed today and purchase additional capacity as data storage needs grow. HPE D3000 enclosures support HPE SmartDrive Carriers. Buy and maintain a common set of HPE ProLiant drives for Gen8 and Gen9 ProLiant Servers. Total support can grow up to 96 LFF or 200 SFF drives.
Affordable storage for capacity demand
HPE D3000 Enclosures 12 Gb SAS provides a higher level of redundancy and reliability, reducing single-points-of-failure within the storage network. The modular platform provides investment protection by allowing purchases based on your current need and future plans without hidden management fees.
Flexible and scalable with room to expand
The HPE D3000 Enclosures give you the flexibility to mix and match SAS, SATA and Solid State drives in the same enclosure, and extend the benefit of tiered storage to your customers.
Easy to manage
The HPE D3000 Enclosures support the HPE SmartDrive carrier, enabling a single set of common drives for Gen8 and Gen9 ProLiant servers and D3000 Enclosures.
| Product Description | HPE D3610 – storage enclosure |
| Device Type | Storage enclosure |
| Enclosure Type | Rack-mountable – 2U |
| Max Supported Capacity | 120 TB |
| Installed Devices / Modules Qty | 12 (installed) / 12 (max) |
| Supported Drives | SATA-600 / SAS-3 |
| Hard Drive | 12 x 10 TB HDD SAS 12Gb/s Midline |
| Power | AC 120/230 V – 50/60 Hz |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 44.8 cm x 59.8 cm x 8.7 cm |
| Weight | 27.2 kg |
| Manufacturer Warranty | 3-year warranty |
| Device Type | Storage enclosure |
| Enclosure Type | Rack-mountable – 2U |
| Installed Devices / Modules Qty | 12 |
| Supported Devices / Modules Qty | 12 |
| Supported Drives | SATA-600 / SAS-3 |
| Max Supported Capacity | 120 TB |
| CPU | No CPU |
| Type | HDD |
| Capacity | 12 x 10 TB |
| Interface Type | SAS 12Gb/s |
| Spindle Speed | 7200 rpm |
| Features | Midline |
| Expansion Bays | 12 (total) / 0 (free) x hot-swap – 3.5″ LFF |
| Features | Redundant fans, firmware upgradable, 92% efficiency power supply |
| Cables Included | 2 x mini SAS HD cable – 0.5 m |
| Included Accessories | Rack mounting kit, 2 x PDU interconnect cords |
| Power Device | 2 x internal power supply – hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V – 50/60 Hz |
| Power Consumption Operational | 403 Watt |
| Power Provided | 460 Watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Width | 44.8 cm |
| Depth | 59.8 cm |
| Height | 8.7 cm |
| Weight | 27.2 kg |
| Service & Support | Limited warranty – parts – 3 years Limited warranty – diagnosis – 3 years |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 – 90% |
| Sound Emission | 53 dBA |
