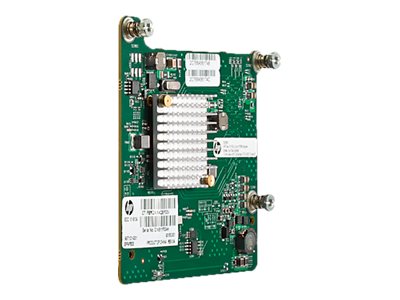

HPE FlexFabric 534M – network adapter – PCIe 2.0 x8 – 10Gb Ethernet x 2

Add to Wishlist

HPE FlexFabric 534M – Network adapter – PCIe 2.0 x8 – 10Gb Ethernet x 2 – remarketed – for ProLiant BL420c Gen8, BL460c Gen10, BL460c Gen8, BL660c Gen8, WS460c Gen9; StoreEasy 3850

AED2,899.00

Add to Wishlist

the HPE FlexFabric 534M is a 2-port 10GbE mezzanine adapter, featuring the next generation of 10Gb Ethrnet offering in a single chip solution on a mezzanine form factor that further reduces power requirements for 2 ports of 10Gb Ethernet.

It provides full duplex high performance Ethernet connectivity with support for HPE Virtual Connect Flex-10 blade interconnect technology, allowing each 10GbE port to be divided into four physical NICs and optimize bandwidth management for virtualized servers. The HPE FlexFlexFabric 534M adapter, has storage I/O functionality making it a full-Converged Network Adapter (CNA).

The HPE 534M supports enterprise class features such as VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), jumbo frames and PXE boot.

SKU: 700748R-B21 1 Category: Tag:
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express 2.0 x8
PCI Specification Revision PCIe 2.0
Networking
Ports 10Gb Ethernet x 2
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet
Data Transfer Rate 10 Gbps
Features TCP/IP offloading, Quality of Service (QoS), Jumbo Frames support, PXE support, Single Root I/O Virtualization (SR-IOV), tagged VLAN, TCP Offload Engine (TOE)
Compliant Standards
IEEE Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.3ap
Processor / Memory
Processor 1 x Broadcom BCM57810S
RAM 900 MB
Expansion / Connectivity
Interfaces 2 x 10Gb Ethernet
Miscellaneous
Compliant Standards FCC Class A certified, UL, BSMI CNS 13438 Class A, EN55022 Class A, WEEE, RoHS, FCC Part 15 A, AS/NZS, VCCI V-3 Class A ITE, EN 61000-3-2:2006, EN 61000-3-3:2008, ICES-003 issue 4 Class A, KN24, KN22 Class A, EN55024:1998 + A1 + A2
Pricing Type Remarketed
Software / System Requirements
OS Required SunSoft Solaris 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, SuSE Linux Enterprise Server 11 SP1, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7, SuSE Linux Enterprise Server 10 SP4, Microsoft Windows Server 2012, VMware vSphere 5.0, VMware vSphere 4.1
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 10 – 90% (non-condensing)
Compatibility Information
Designed For HPE ProLiant BL420c Gen8, BL460c Gen10, BL460c Gen8, BL465c Gen8, BL660c Gen8, BL660c Gen8 Performance, WS460c Gen9 Graphics, WS460c Gen9 Graphics Expansion ¦ HPE StoreEasy 3850 Gateway Storage
