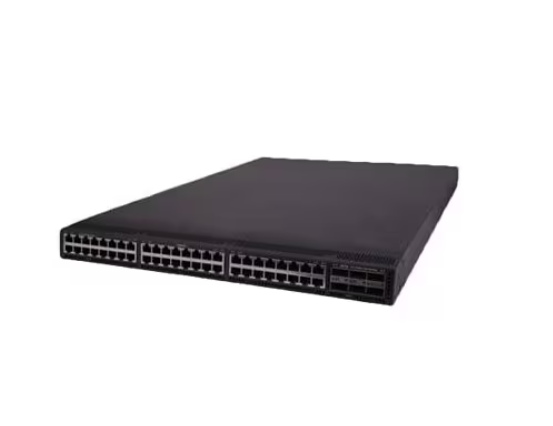

HPE FlexFabric 5940 48XGT 6QSFP28 – switch – 48 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • Switch
  • managed
  • rack-mountable
  • L3
  • 48 x 10/100/1000/10000 + 6 x 100 Gigabit QSFP28

AED197,899.00

Add to Wishlist

Know your gear

The HPE FlexFabric 5940 Switch Series is a family of high-performance and low-latency 10GbE and 40GbE top-of-rack (ToR) data center switches. The 5940 Switch includes 100G uplink technology which is part of the HPE FlexFabric data center solution and is a cornerstone of the FlexNetwork architecture. The 5940 Switch is suited for deployment at the aggregation or server access layer of large enterprise data centers or at the core layer of medium-sized enterprises. It is optimized for high-performance server connectivity, convergence of Ethernet and storage traffic, and virtual environments.
SKU: JH391A Category: Tag:
Category Details
Overview
Brand HPE
Product Line HPE FlexFabric
Model 5940 48XGT 6QSFP28
Manufacturer Aruba
Memory
Flash Memory Installed 1 GB
Memory Technology SDRAM
RAM Installed 4 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ag, IEEE 802.3ah, IEEE 802.3x
Features ACL support, Cut-through, DLDP support, DHCP protection, DHCP support, Edge Virtual Bridging (EVB), ECMP, FCoE support, Flow control, ISSU, IRF, IP source guard, IPv6 support, LLDP support, MSTP support, Port mirroring, QoS, RSTP support, RSCN support, Reverse airflow, SNMP support, Strict Priority (SP), VXLAN VTEP, WFQ
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support Yes
MAC Address Table Size 288K entries
Manageable Yes
Max Units In A Stack 9
Ports 48
Product Type Switch
Remote Management CLI, RMON, SNMP 1, SNMP 2c, SNMP 3, SSH-2, Telnet
Routing Protocol BGP-4, BGP-4+, BFD, IGMP, IS-IS, IS-ISv6, MPLS, OSPF, OSPFv2, OSPFv3, RIP-1, RIP-2, RIPng, Static IPv6 routing, VRRP
Stackable Stackable
Subcategory Network hubs and switches
Switching Type 100 Gigabit Ethernet
Connectivity
Interface Provided 1 x management (LAN) RJ-45, 1 x serial (console) RJ-45, 1 x USB 2.0, 48 x 10/100/1000/10000, 6 x 100Gbit LAN QSFP28
Port Quantity 48
Port Type 10/100/1000/10000
Ports Type (2nd) 100 Gigabit QSFP28
Technical Information
Max Operating Temperature 113 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 10 – 90% (non-condensing)
Product Information
Authentication Method RADIUS, SSH, SSH v.2, TACACS+
Capacity IPv4 routing table entries: 120000, IPv6 routing table entries: 60000
Device Type Internal power supply
Packaged Quantity 1
Performance Latency (10 Gbps): < 1 µs, Routing/switching capacity: 2160 Gbps
Ports (2nd) Quantity 6
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 28.66 lbs
Width 17.3 inch
Depth 26 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards ANATEL, ANSI C63.4-2003, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, EMC 2004/108/EC, EN 1000-3-2:2006, EN 55022 Class A, EN 60825-1, EN 60825-2, EN 60950-1/A11, EN 61000-3-3:1995+A1:2001+A2:2005, FCC CFR47 Part 15 A, FDA 21 CFR, GOST, ICES-003 Class A, IEC 60950-1, NOM, RoHS, UL 60950-1, UL-AR, VCCI Class A
