HPE FlexFabric 650FLB – network adapter – PCIe 3.0 x8 – 20 Gigabit Ethernet x 2

Add to Wishlist

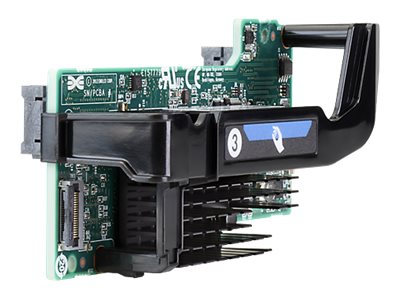

HPE FlexFabric 650FLB – Network adapter – PCIe 3.0 x8 – 20 Gigabit Ethernet x 2 – for ProLiant BL460c Gen9, BL660c Gen9, WS460c Gen9

AED3,599.00

Add to Wishlist

What if you could accelerate IT services, increase data center efficiency and double your bandwidth without doubling your costs and complexity? The HPE FlexFabric 20Gb 2-port 650FLB adapter is installed in the FlexibleLOM socket prior to installing additional Mezzanine adapters. The adapter provides Tunnel Offload for efficient overlay networking to increase VM migration, flexibility and network scale with minimal impact to server performance.

SKU: 701536-001 1 Category: Tag:
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express 3.0 x8
Networking
Ports 20 Gigabit Ethernet x 2
Connectivity Technology Wired
Data Link Protocol 20 Gigabit Ethernet
Data Transfer Rate 20 Gbps
Network / Transport Protocol TCP/IP
Remote Management Protocol SNMP
Features VLAN support, WOL, full duplex mode, Jumbo Frames support, PXE support, LSO, UEFI support, SR-IOV, TSO, QoS tagging, MSI-X, TCP/IP checksum offload, RoCE
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.3ap, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg
Processor / Memory
Processor 1 x Emulex
Expansion / Connectivity
Expansion Slots 1 x FlexibleLOM
Interfaces 2 x 20Gb Ethernet
Miscellaneous
Compliant Standards FCC Class A certified, UL, VCCI, ICES-003, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, RoHS, BSMI CNS 13438, KN22, KN24, EN55022:2010, MSIP, UL 60950-1:2007, EN 55024:2010
Power
Power Consumption Operational 7.6 Watt
Software / System Requirements
Software Included Drivers & Utilities, HP Systems Insight Manager (HP SIM)
OS Required Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2008 R2 SP1 (64-bits), Red Hat Enterprise Linux 6.5, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6.6, Red Hat Enterprise Linux 7.1, SuSE Linux Enterprise Server 11 SP3 x64 Edition, SUSE Linux Enterprise Server 12 x64 Edition, VMware ESXi 5.1 update 3, VMware ESXi 5.5 update 2, Citrix XenServer 6.5
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 15 – 80% (non-condensing)
Compatibility Information Designed For: HPE ProLiant BL460c Gen9, BL460c Gen9 Base, BL460c Gen9 Entry, BL460c Gen9 Performance, BL660c Gen9, WS460c Gen9, WS460c Gen9 Graphics, WS460c Gen9 Graphics Expansion
