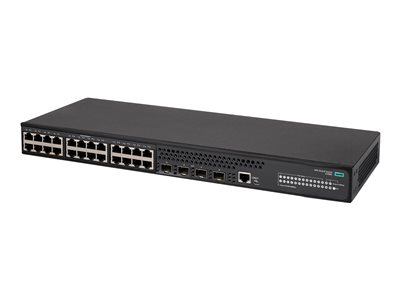

HPE FlexNetwork 5140 24G 4SFP+ EI – switch – 28 ports – smart – rack-mountable

Add to Wishlist
HPE FlexNetwork 5140 24G 4SFP+ EI – Switch – L3 – smart – 24 x 10/100/1000 + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ – rack-mountable

AED20,099.00

Add to Wishlist

The HPE FlexNetwork 5140 EI Switch Series delivers scalability, high availability, and low TCO at the access layer of medium and large enterprise campus networks. The series offers enterprise-class QoS and security, Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF) stacking, static layer 3 routing and RIP, convenient fixed 10GbE uplink ports, PoE+, ACLs, and IPv6, and delivers energy savings with Energy Efficient Ethernet.

The HPE FlexNetwork 5140 EI Switch Series also includes Smart Management Center (SmartMC), an embedded network management tool that can be leveraged at no additional cost by small and medium networks for centralized management and operations. The series can also be managed with HPE Intelligent Management Center (IMC) for a single view of your entire network.

SKU: JL828A#ABA Category: Tag:
Device Type Switch – 28 ports – L3 – smart
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 1000Base-T RJ-45
4 x Gigabit / 10Gbit LAN SFP+
Performance Latency (1000 Mbps): 5 µs
Latency (10 Gbps): 3 µs
Throughput: 96 Mpps
Routing/switching capacity: 128 Gbps
Capacity IPv4 routing table entries: 512
IPv6 routing table entries: 256
VLAN IDs: 4094
MAC Address Table Size 16384 entries
Jumbo Frame Support 9216 bytes
Routing Protocol OSPF, RIP-1, RIP-2, IGMP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, CIDR
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI, NTP, ICMP, RADIUS
Encryption Algorithm SSL
Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS
Features Flow control, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, High Availability, half duplex mode, full duplex mode, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), DHCP server, MLD snooping, Device Link Detection Protocol (DLDP) support, STP Root Guard, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, Energy Efficient Ethernet, dynamic ARP protection, DHCP protection, Multiple VLAN Registration Protocol (MVRP), Strict Priority Queuing (SPQ), port isolation, Generic Attribute Registration Protocol (GARP), OpenFlow support, IP source guard, ICMP Router Discovery Protocol (IRDP), Link Aggregation, VLAN Double Tagging (Q-in-Q), LLDP-MED, Smart Link, Guest VLAN, Ethernet OAM, proxy ARP, Weighted Round Robin (WRR), Intelligent Resilient Fabric Technology (IRF), BPDU protection, UDP support, Multiple Registration Protocol (MRP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r
RAM 512 MB SDRAM
Flash Memory 256 MB
Status Indicators Port status, system
Expansion / Connectivity Interfaces:
24 x 1000Base-T RJ-45
4 x Gigabit / 10Gbit LAN SFP+
1 x console RJ-45 management
1 x micro-USB 5 pin USB header management
Power Power Device: Internal power supply
Power Provided: 24 Watt
Voltage Required: AC 100-240 V (50/60 Hz)
Miscellaneous Rack Mounting Kit: Included
Compliant Standards Plug and Play, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, WEEE, EN 60825-1, FCC Part 15 B Class A, EN 60825-2, IPv6 Ready, EN 300 386, FDA 21 CFR, AS/NZS CISPR 32 Class A, YD/T993, IEC 62368-1, EN 55032, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, ETSI EN 300 386, EN 62368-1:2014/A11:2017, GB/T9254
Localization English / United States
Dimensions & Weight Width: 17.3 in
Depth: 6.3 in
Height: 1.7 in
Weight: 5.51 lbs
