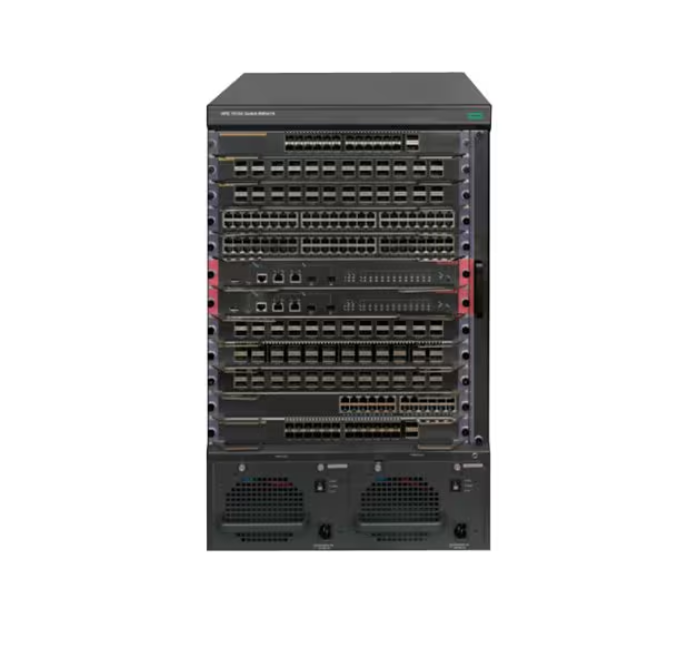

HPE FlexNetwork 7510X Chassis – switch – managed – rack-mountable
Quick tech specs
- Switch
- managed
- PoE
- L3
- rack-mountable
- BTO
AED88,099.00
Know your gear
The HPE FlexNetwork 7500X Switch Series delivers versatile, multi-layered, high performance, modular switches for enterprise LAN edge, aggregation and core layers. It offers 1/10/40/100GbE connectivity with PoE/PoE+ models to meet both existing and future requirements. Higher switching bandwidth (480Gbps/slot) and L2/L3 routing services support mission-critical environments. Virtual Extensible LAN (VXLAN) and Ethernet VPN (BGP EVPN) offer greater scalability and better utilization of available network paths. Application telemetry provides real time switch capacity and utilization. Support for IPv4/IPv6, MPLS/VPLS features provide investment protection and an easy transition from IPv4 to IPv6 networks. HPE Intelligent Resilient Fabric (IRF) enables flatter and more agile networks. HPE Intelligent Management Center (IMC) provides a single view of the entire network. Ease of maintenance is enabled with Graceful Insertion and Removal (GIR) and In Service Software Update (ISSU).
| Category | Attribute | Details |
|---|
| Overview | Brand | HPE |
| Product Line | HPE FlexNetwork |
| Model | 7510X Chassis |
| Manufacturer | Aruba |
| Memory | Flash Memory Installed | 4 GB |
| RAM Installed | 4 GB |
| Network & Communication | Advanced Switching | Layer 3 |
| Compliant Standards | IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1AX, IEEE 802.3, etc. |
| Features | ARP support, BGP, DDoS Protection, EVPN, etc. |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 9216 bytes |
| Manageable | Yes |
| Power Over Ethernet (PoE) | PoE |
| Product Type | Switch |
| Remote Management | CLI, DHCP, RMON, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet |
| Routing Protocol | BGP, OSPFv2, RIP-1, Static IPv6 routing, etc. |
| Stackable | Stackable |
| Subcategory | Network hubs and switches |
| Switching Type | 100 Gigabit Ethernet |
| Expansion Slots | Expansion Slots | 10 (total) / 10 (free) |
| Connectivity | Interface Provided | 1 x management, 1 x modem, 1 x serial (RS-232C) |
| Power | Frequency | 50/60 hertz |
| Power Provided | 1400 watt |
| Power Supplies Supported | 2 |
| Redundant Power Supply | Yes |
| Required Voltage | AC 100-240 volt |
| Technical Information | Encryption | AES, MD5, PEAP, TKIP, TLS, TTLS, WEP |
| Humidity Range Storage | 5 – 95% (non-condensing) |
| Max Operating Temperature | 113°F |
| Max Storage Temperature | 158°F |
| Min Operating Temperature | 32°F |
| Min Storage Temperature | -40°F |
| Operating Humidity | 10 – 95% (non-condensing) |
| Supported Devices | 1 |
| Product Information | Authentication Method | EAP, RADIUS, SSH, TACACS, TACACS+ |
| Device Type | Internal power supply (not installed) |
| Installed Devices/Modules | 1 |
| Packaged Quantity | 1 |
| Rack Mounting Kit | Included |
| Included Items | Included Accessories | Fan tray |
| Dimensions & Weight | Height | 27.9 inch |
| Height (Rack Units) | 16 |
| Width | 17.2 inch |
| Depth | 16.5 inch |
| Physical Characteristics | Color Category | Black |
| Certifications & Listings | Compliant Standards | AS/NZS CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, FCC CFR47 Part 15 A, etc. |
