HPE InfiniBand HDR Auxiliary Card – control processor – PCIe 3.0 x16

Add to Wishlist

HPE InfiniBand HDR Auxiliary Card – Control processor – PCIe 3.0 x16 – for Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10; ProLiant DL380 Gen10

AED4,799.00

Add to Wishlist

HPE InfiniBand HDR PCIe3 Auxiliary Card with 350mm Cable Kit

Are you looking for extremely high-bandwidth and very low latency communications for your HPE Apollo System and HPE ProLiant DL rack mount server families? The HPE HDR InfiniBand and Ethernet adapters are designed for customers who deploy high performance computing (HPC) systems with their HPE ProLiant XL and HPE ProLiant DL Gen10 and Gen10 Plus servers in the data center. The HPE InfiniBand HDR/HDR100 and Ethernet adapters are available as stand up cards or in the OCP 3.0 form factor, equipped with 1 port or 2 ports. Combined with HDR InfiniBand switches, they deliver low latency and up to 200Gbps bandwidth, ideal for performance-driven server and storage clustering applications in HPC and enterprise data centers.

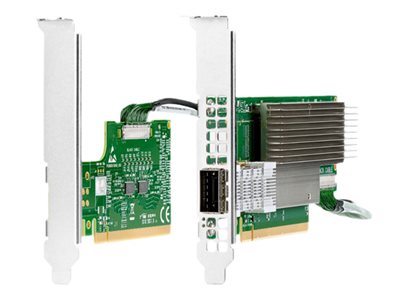

HPE InfiniBand HDR PCIe3 Auxiliary Card with 350mm Cable Kit
slide 1 of 1, show larger image, hpe infiniband hdr pcie3 auxiliary card with 350mm cable kit
The HDR InfiniBand and Ethernet adapters for HPE ProLiant Gen10 Plus servers are based on standard Mellanox ConnectX-6 technology.
The HDR InfiniBand and Ethernet adapters are now available in the OCP 3.0 form factor with support for HPE iLO shared network port in Ethernet mode.

Low-Latency, High-Bandwidth InfiniBand Connectivity

  • HPE HDR InfiniBand adapters deliver up to 200Gbps bandwidth and a sub-microsecond latency for demanding HPC workloads.
  • The HPE InfiniBand HDR100 adapters, combined with HDR switches and HDR cables, are aimed at simplified infrastructure by reducing the number of required switches for a given 100Gbps InfiniBand fabric.
  • HPE HDR InfiniBand adapters are supported on the HPE Apollo XL and HPE ProLiant DL Gen10 and Gen10 Plus servers.

Offloading Mechanisms

  • HPE HDR InfiniBand adapters include multiple offload engines that speed up communications by delivering a low CPU overhead for increasing throughput.
  • HPE HDR InfiniBand adapters support MPI tag matching and rendezvous offloads, along with adaptive routing on reliable transport
SKU: P06154-B23 1 Category: Tag:
General Details
Device Type Control processor
Form Factor Plug-in card
Interface (Bus) Type PCI Express 3.0 x16
PCI Specification Revision PCIe 1.1, PCIe 2.0, PCIe 3.0
Miscellaneous
Cables Included 1 x data cable kit – 1 ft
Dimensions & Weight
Width 2.4 in
Depth 8.6 in
Height 7 in
Weight 4.94 oz
Compatibility Information
Designed For HPE Apollo 4200 Gen10<br>HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10<br>HPE ProLiant DL380 Gen10, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10, XL190r Gen10 for HPE Ezmeral Container Platform
