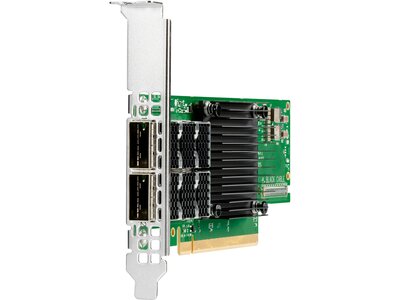

HPE InfiniBand HDR100 MCX653106A-ECAT – network adapter – PCIe 4.0 x16 – 100Gb Ethernet / 100Gb Infiniband QSFP28 x 2

Add to Wishlist

HPE InfiniBand HDR100 MCX653106A-ECAT – Network adapter – PCIe 4.0 x16 low profile – 100Gb Ethernet / 100Gb Infiniband QSFP28 x 2 – for ProLiant DL325 Gen10, DL345 Gen10, DL365 Gen10, DL380 Gen10

AED13,199.00

Add to Wishlist

HPE HDR InfiniBand adapters are designed for customers who need low latency and high bandwidth InfiniBand interconnect in their high performance computing (HPC) systems. The adapters coupled with HDR switches via HDR splitter cables provide simplified fabrics, requiring less equipment while achieving the same performances as the previous InfiniBand generation.

HPE InfiniBand HDR100/Ethernet 100Gb 2-port QSFP56 PCIe4 x16 MCX653106A-ECAT Adapter

Are you looking for extremely high-bandwidth and very low latency communications for your HPE Apollo System and HPE ProLiant DL rack mount server families? The HPE HDR InfiniBand and Ethernet adapters are designed for customers who deploy high performance computing (HPC) systems with their HPE ProLiant XL and HPE ProLiant DL Gen10 and Gen10 Plus servers in the data center. The HPE InfiniBand HDR/HDR100 and Ethernet adapters are available as stand up cards or in the OCP 3.0 form factor, equipped with 1 port or 2 ports. Combined with HDR InfiniBand switches, they deliver low latency and up to 200Gbps bandwidth, ideal for performance-driven server and storage clustering applications in HPC and enterprise data centers.

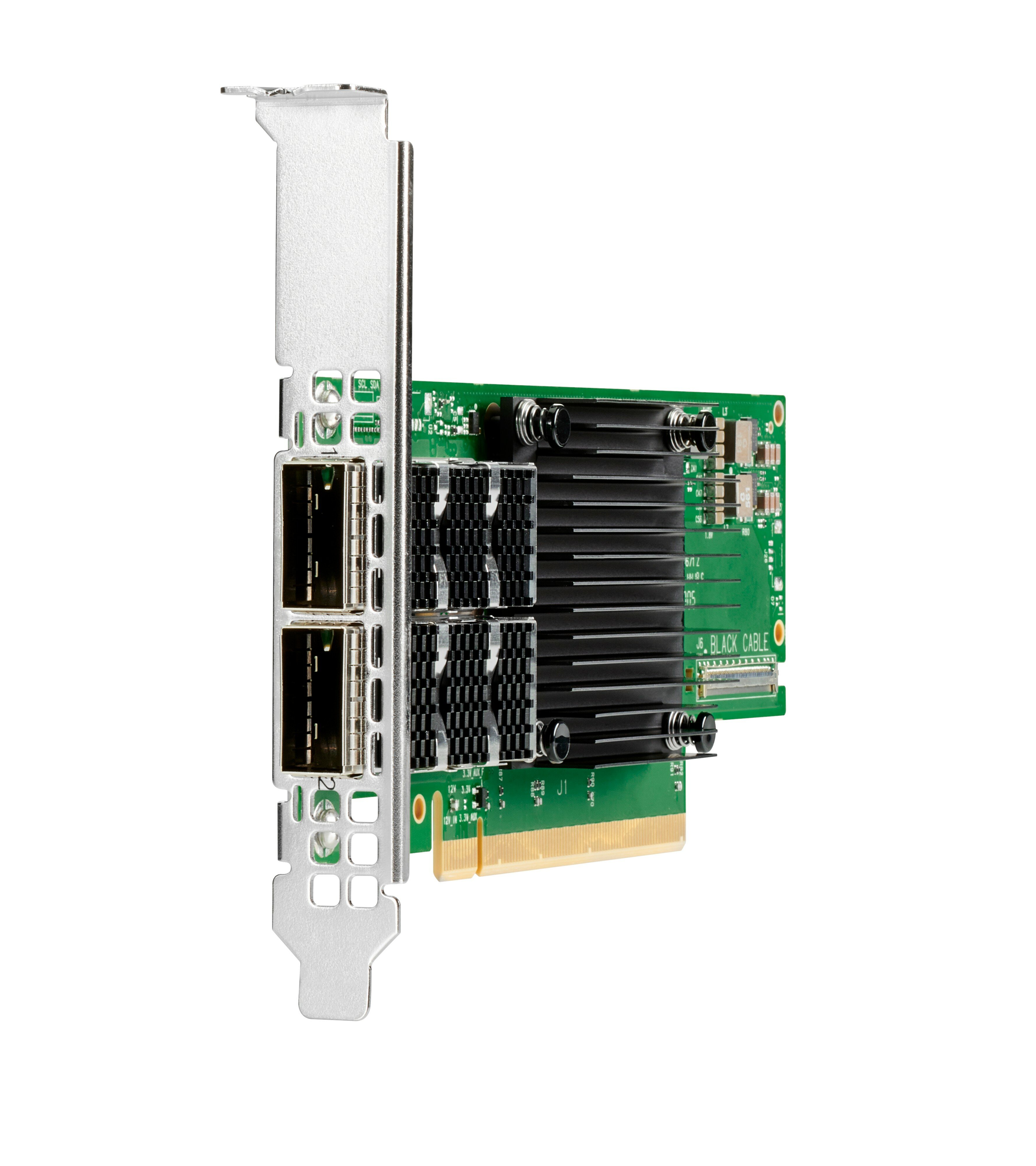

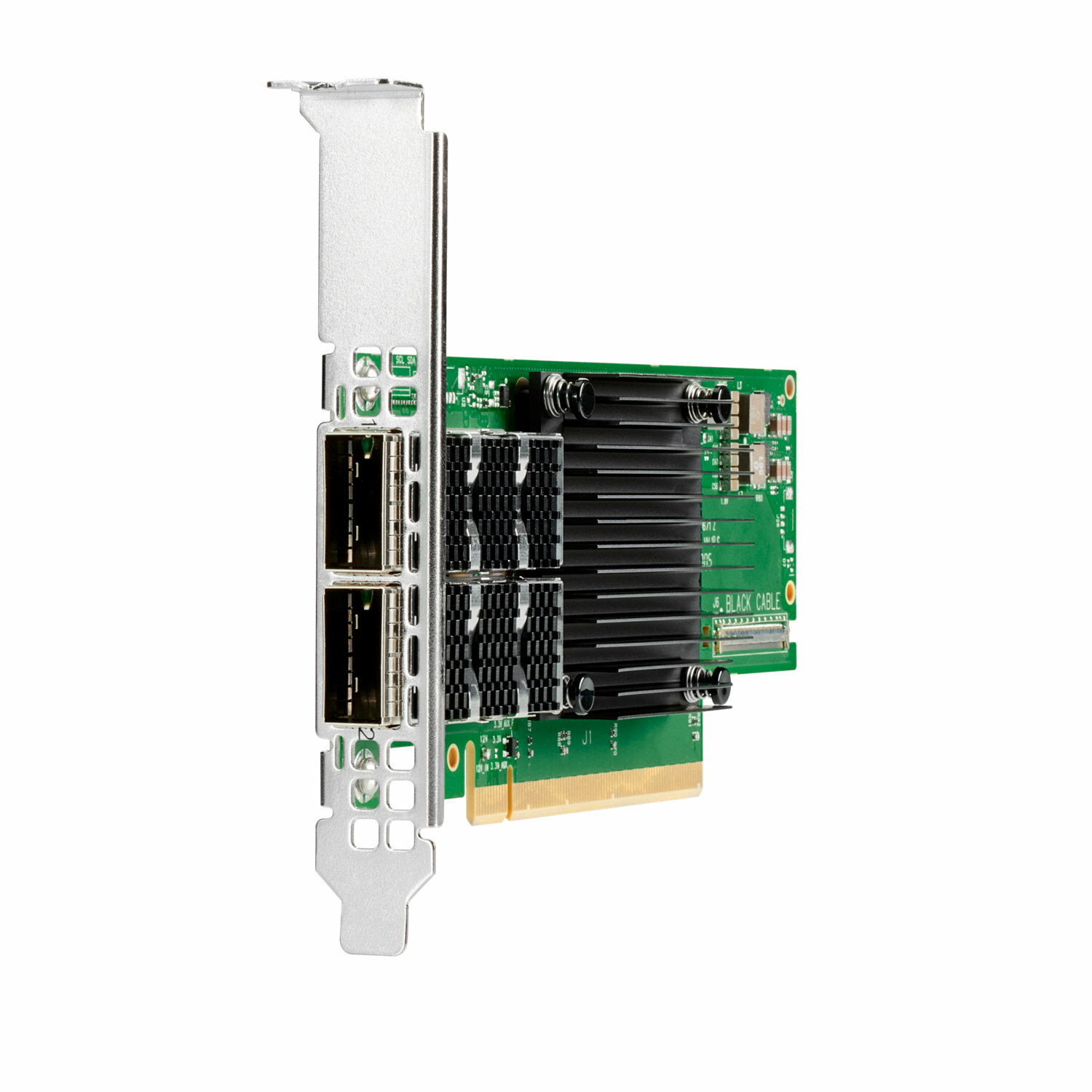

HPE InfiniBand HDR100/Ethernet 100Gb 2-port QSFP56 PCIe4 x16 MCX653106A-ECAT Adapter
slide 1 of 1, show larger image, hpe infiniband hdr100/ethernet 100gb 2-port qsfp56 pcie4 x16 mcx653106a-ecat adapter
The HDR InfiniBand and Ethernet adapters for HPE ProLiant Gen10 Plus servers are based on standard Mellanox ConnectX-6 technology.
The HDR InfiniBand and Ethernet adapters are now available in the OCP 3.0 form factor with support for HPE iLO shared network port in Ethernet mode.
Low-Latency, High-Bandwidth InfiniBand Connectivity

Low-Latency, High-Bandwidth InfiniBand Connectivity

  • HPE HDR InfiniBand adapters deliver up to 200Gbps bandwidth and a sub-microsecond latency for demanding HPC workloads.
  • The HPE InfiniBand HDR100 adapters, combined with HDR switches and HDR cables, are aimed at simplified infrastructure by reducing the number of required switches for a given 100Gbps InfiniBand fabric.
  • HPE HDR InfiniBand adapters are supported on the HPE Apollo XL and HPE ProLiant DL Gen10 and Gen10 Plus servers.
Offloading Mechanisms

Offloading Mechanisms

  • HPE HDR InfiniBand adapters include multiple offload engines that speed up communications by delivering a low CPU overhead for increasing throughput.
  • HPE HDR InfiniBand adapters support MPI tag matching and rendezvous offloads, along with adaptive routing on reliable transport.
SKU: P23666-B21 1 Category: Tag:
General
Device Type Network adapter
Form Factor Plug-in card – low profile
Interface (Bus) Type PCI Express 4.0 x16
PCI Specification Revision PCIe 1.1, PCIe 2.0, PCIe 3.0, PCIe 4.0
Networking
Ports 100Gb Ethernet / 100Gb Infiniband QSFP28 x 2
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand
Data Transfer Rate 100 Gbps
Network / Transport Protocol TCP/IP, UDP/IP, iSCSI
Features Auto-negotiation, MPLS support, VLAN support, InfiniBand QDR Link support, VPI, QoS, InfiniBand DDR Link support, Jumbo Frames support, PXE support, LSO, LRO, RSS, UEFI support, InfiniBand FDR Link support, congestion control, AER, MSI-X, HDS, TSS, RoCE, InfiniBand EDR Link support, TPH, InfiniBand SDR Link support, XRC transport, DCT, UMR, ODP, MSI, InfiniBand HDR100 Link support
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by
Processor / Memory
Processor 1 x Mellanox ConnectX-6
Expansion / Connectivity
Interfaces 2 x 100Gb Ethernet / 100Gb Infiniband – QSFP28
Miscellaneous
Compliant Standards CISPR 22 Class A, EN55024, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-32, RoHS, IEC 60068-2-29, IEC 60068-2-64, KC, VCCI Class A, AS/NZS CISPR 22, EN 55022 Class A, FCC CFR47 Part 15 A, RCM Class A, CAN/CSA-C22.2 No. 60950-1
Power
Power Consumption Operational 17.7 Watt
Software / System Requirements
OS Required FreeBSD, Microsoft Windows, Red Hat Enterprise Linux, CentOS
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 – 95% (non-condensing)
Compatibility Information
Designed For HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus; HPE ProLiant DL325 Gen10 Plus, DL325 Gen10 Plus All-NVMe Flash Node for Qumulo, DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage, DL325 Gen10 Plus for Weka Base Tracking, DL325 Gen10 Plus for Weka Expansion Tracking, DL325 Gen10 Plus V2, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 for Weka Base Tracking, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus Base, DL365 Gen10 Plus, DL380 Gen10 Plus, DL380 Gen10 Plus Network Choice, DL385 Gen10 Plus, DL385 Gen10 Plus Entry
