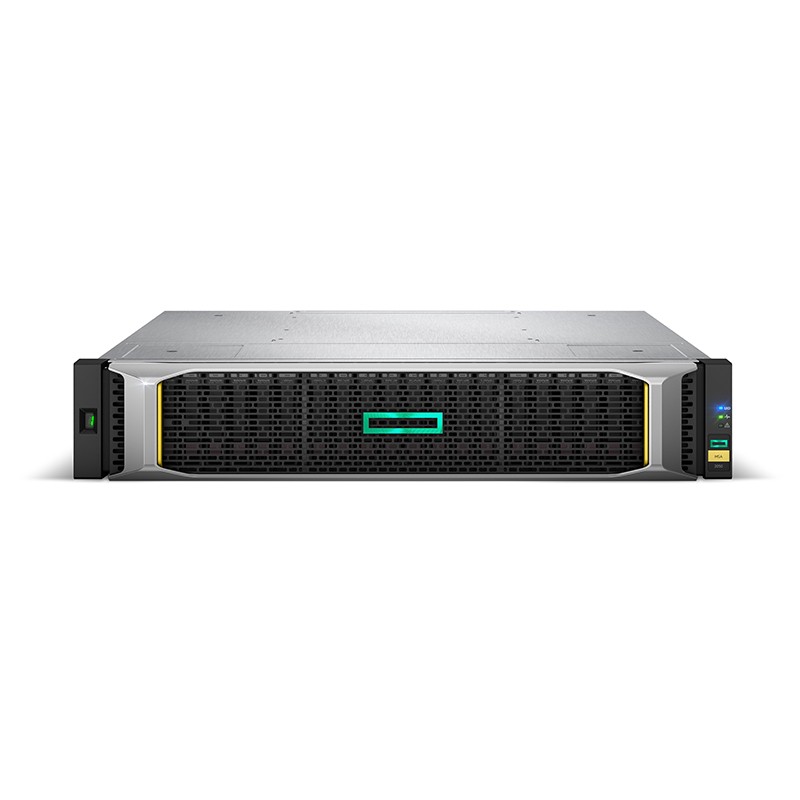

MSA 2050 LFF Disk Enclosure. This 2U enclosure is designed to support twelve HPE Storage LFF drives and accepts MSA dual-ported 12Gb SSD and SAS Midline hard drives. The pre-configured MSA 2050 LFF Disk Enclosure has two I/O modules and supports the MSA 2050 dual controller arrays.
·The MSA 2050 LFF Disk Enclosure can be attached to the MSA 2050 LFF or SFF storage models.
·Each MSA 2050 LFF Disk Enclosure ships standard with two .5m mini-SAS to mini-SAS cables for connection to the MSA 2050 array expansion port or existing disk enclosure cascade port.
·LFF and/or SFF Disk Enclosures can be mixed up to the maximum of 7 total Disk Enclosures
Q1J06A Specification |
|
| Cable Details | |
| Included Qty | 2 |
| Chassis | |
| Installed Devices Modules Qty | 0 |
| Supported Devices Modules Qty | 24 |
| Supported Interface | Serial Attached SCSI 3 |
| Expansion Bays | |
| Form Factor (metric) | 8.9 cm LFF |
| Optical Storage | |
| Type | None |
| Bay Provided | |
| Form Factor | 3.5 LFF |
| Total Qty | 24 |
| Free Qty | 24 |
| Cable | |
| Connectivity Details Type | Mini SAS cable |
| Connectivity Details Length | 1.6 ft |
| Header | |
| Compatibility | PC, Unix |
| Manufacturer | Hewlett-Packard |
| Packaged Quantity | 1 |
| Product Line | HPE Modular Smart Array |
| Model | 2050 SAN LFF Disk Enclosure |
| Brand | HPE |
| Interface Provided | |
| Qty | 1 |
| Interface (Storage) | SAS 12Gb/s |
| Miscellaneous | |
| Height (Rack Units) | 2 |
| Power Device | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V |
| Power Redundancy | Yes |
| Type | Internal power supply |
| Processor | |
| Type | None |
| Storage | |
| Type | Storage enclosure |
| Rack-mountable | Rack-mountable |
| Storage Controller | |
| Type | None |
| Storage Controller (2nd) | |
| Type | None |
