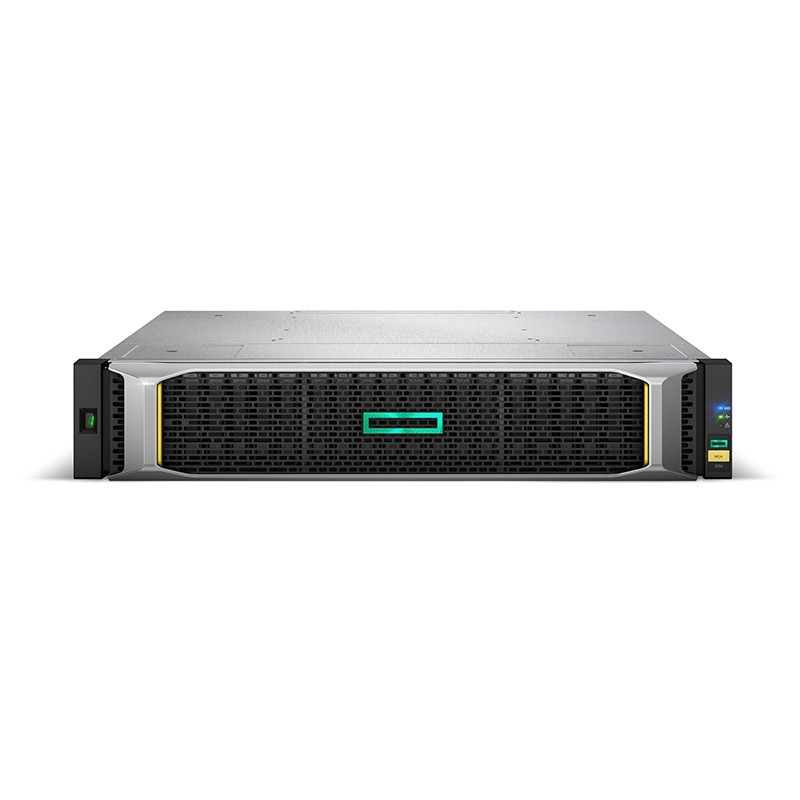

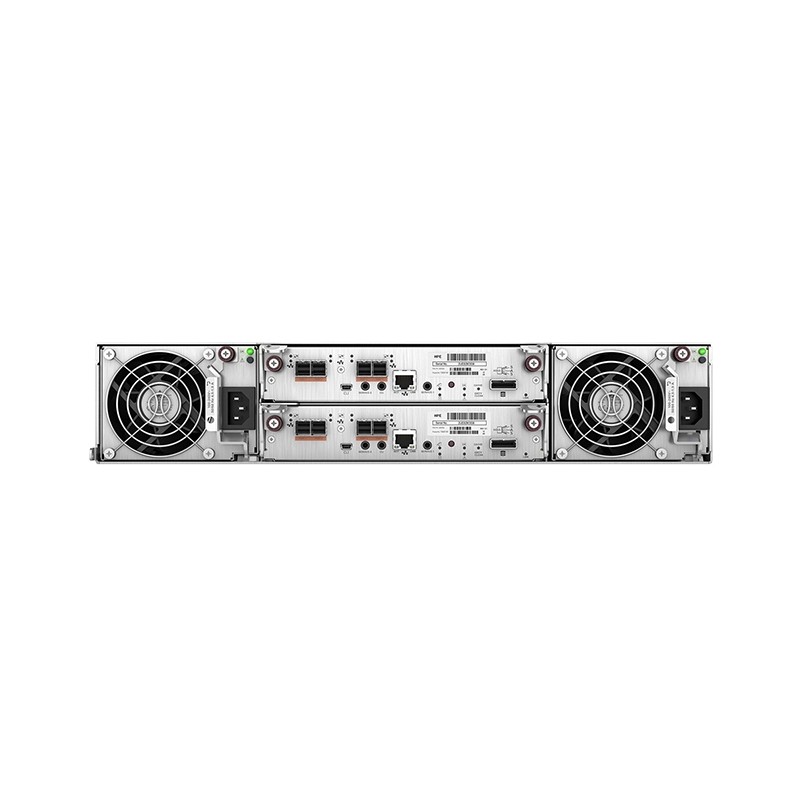

HPE Q1J31A is the HPE MSA 2052 SAS Dual Controller SFF Storage. The MSA 2052 is a pre-configured bundle that includes an MSA 2050-branded LFF array chassis, two AC power supplies, two MSA 2050 SAS controllers, two 800GB Mixed Use SSDs, one Advanced Data Services LTU, two .7m PDU cords (IEC C14), and one rack-mount kit. The two 800GB SSDs are shipped integrated in the MSA 2050 array. The Advanced Data Services LTU is shipped with the MSA 2050 array and requires license activation.
HPE MSA 2052 Storage Specification |
|
| Array | |
| Access Type | Block |
| Form Factor | 2U, SFF or LFF |
| Number of controllers per array | 2 |
| Number of host ports per array | 8 |
| FC host connectivity | 8/16Gb |
| iSCSI host connectivity | 1Gb or 10GbI |
| SAS host connectivity | 6/12Gb |
| Cache, per array | |
| Max Read cache per array | 8TB |
| Data (read/write) cache + system memory per array | 16GB |
| Pool Capacity (with Large Pool Support) | 562 TB (512 TiB) |
| RAID Levels supported: Virtual mode | RAID 1, 5, 6, 10 |
| Enclosures | |
| Expansion Drive Enclosures | 0-7 enclosures |
| LFF/SFF array/enclosure mixing | Supported |
| Maximum number of drives per array enclosure | 24 SFF/12 LFF |
| Maximum number of drives per drive enclosure | 24 SFF/12 LFF |
| Drive enclosure interface type | 6Gb SAS |
| Drives | |
| Maximum total HDDs per array | 192 SFF / 96 LFF |
| Maximum total SSDs per array | 192 SFF / 96 LFF |
| Max raw capacity per array enclosure | 76.8 TB SFF / 144TB LFF |
| Max raw capacity per drive enclosure | 76.8 TB SFF / 144TB LFF |
| Max raw capacity per array | 614.4TB SFF / 1152TB LFF |
| Integrated SSDs | 2x800GB Mixed Use SSDs |
| Drive Capacities | |
| SFF SSDs (Mixed Use) | 400GB, 800GB, 1.6TB, 3.2TB |
| LFF SSDs (Mixed Use) | 400GB, 800GB |
| SFF HDDs | 15K: 300GB, 600GB, 900GB
10K: 300GB, 600GB, 1.2TB, 1.8TB, 2.4TB |
| LFF HDDs | 7.2K: 2TB, 4TB, 6TB, 8TB, 10TB, 12TB |
| SEDs | Encryption not supported |
| Software Features | |
| Thin Technologies | Thin Provisioning, Space Reclamation, Thin Rebuild |
| Tiering | Performance Tier, Standard Tier, Archive Tier |
| Replication | Snapshots (512), Volume Copy, Remote Snaps |
| Quality of Service | Virtual Tier Affinity |
| Bundled/Integrated Licenses | Advanced Data Services LTU standard |
| Additional Features | |
| Maximum number of volumes | 512 |
| Maximum number of snapshots | 512 |
| Maximum number of hosts | 512 |
| Maximum number of initiators | 1024 |
| Customer self-installable | Yes |
| Customer self-repairable | Yes |
| Customer self-upgradeable | Yes |
| File Services | Yes
HPE Storage File Controller |
