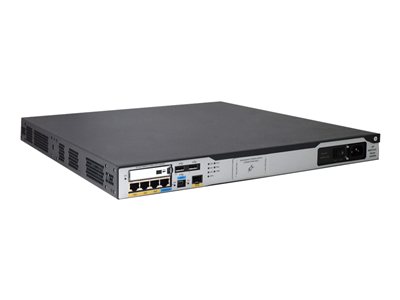

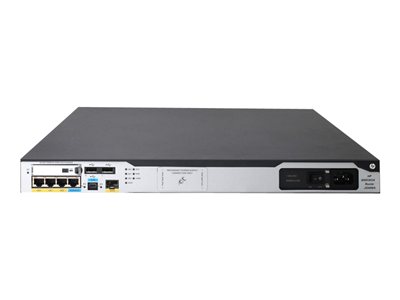

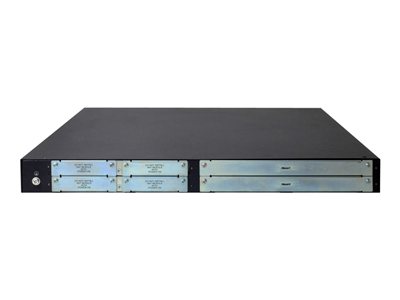

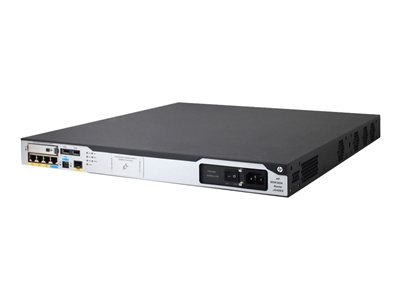

HPE MSR3024 – router – desktop, rack-mountable


Tech overview

HPE MSR3024 – Router – GigE – rack-mountable

AED16,199.00

The HPE MSR3000 Router Series delivers high-performance medium to large branch routing up to 5 Mpps in a cost-optimized form factor. Featuring integrated routing, switching, security, and SIP with no additional licensing, you can boost your service delivery while simplifying management of your corporate WAN. With the Open Application Platform module, the MSR3000 Router Series offers a wide range of virtualized applications. Its distributed architecture and high reliability also strengthen the resiliency of medium to large branches.

SKU: JG406A#ABA Category: Tag:
Specifications
General
Device Type Router
Enclosure Type Desktop, rack-mountable – modular – 1U
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Performance
Throughput Up to 2.6 Mpps
Capacity
Routing table entries 500000
Forwarding table entries 500000
Network / Transport Protocol
TCP/IP, UDP/IP, L2TP, RSVP, NTP, IPSec, ARP, DHCP
Routing Protocol
OSPF, RIP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng, MLDv2, MLD, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI
Encryption Algorithm
MD5, TLS
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features
Firewall protection Yes
DHCP support Yes
NAT support Yes
VPN support Yes
ARP support Yes
MPLS support Yes
IGMP snooping Yes
Syslog support Yes
Port mirroring Yes
IPv6 support Yes
Weighted Fair Queuing (WFQ) Yes
Rapid Spanning Tree Protocol (RSTP) support Yes
Virtual Route Redundancy Protocol (VRRP) support Yes
Multiple Spanning Tree Protocol (MSTP) support Yes
Trivial File Transfer Protocol (TFTP) support Yes
Access Control List (ACL) support Yes
Quality of Service (QoS) Yes
Committed Access Rate (CAR) Yes
MLD snooping Yes
Bidirectional Forwarding Detection (BFD) Yes
Unicast Reverse Path Forwarding (URPF) Yes
DHCP relay Yes
Dynamic Virtual Private Network (DVPN) Yes
Network Quality Analyzer (NQA) Yes
Multicast Source Discovery Protocol (MSDP) Yes
Multicast Border Gateway Protocol (MBGP) Yes
Compliant Standards
IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, CISPR 22 Class A, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 68, EMC, ICES-003 Class A, CS-03, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, EN 60825-1, AS/NZS 60950, ANSI C63.4-2003, EN 60825-2, CAN/CSA C22.2 No. 60950-1-03, EN 61000-3-2:2006, EN 300 386
Processor
1 x 1 GHz
RAM
Installed 2 GB (installed)
Maximum 4 GB (max)
Type DDR3 SDRAM
Flash Memory
Size 256 MB
Expansion / Connectivity
Interfaces
3 x 10Base-T/100Base-TX/1000Base-T – RJ-45
1 x Ethernet 1000 – SFP (mini-GBIC)
USB 2.0 2 x 4 pin USB Type A
Management 1 x auxiliary, 1 x USB
Expansion Slots
Total 1
Free 1
High-performance Multifunction Interface Module (HMIM) 2 (total) / 2 (free)
Smart Interface Card (SIC) 4 (total) / 4 (free)
CompactFlash 1 (total) / 1 (free)
Installed Modules Qty (Max)
Installed 0
Maximum 7
Power
Power Device External power adapter
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Rack Mounting Kit Included
MTBF 49.61 years
Localization English / United States
Dimensions & Weight
Width 17.3 in
Depth 18.9 in
Height 1.7 in
Weight 17.42 lbs
