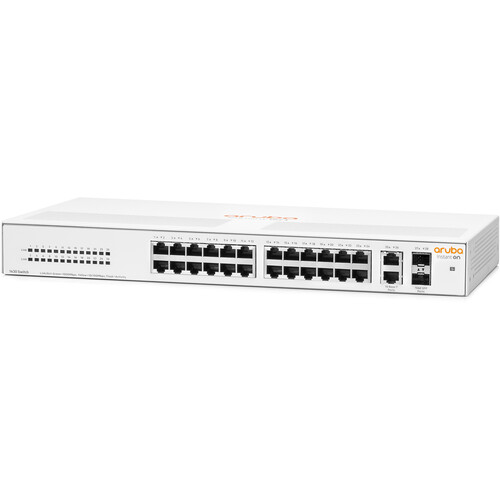

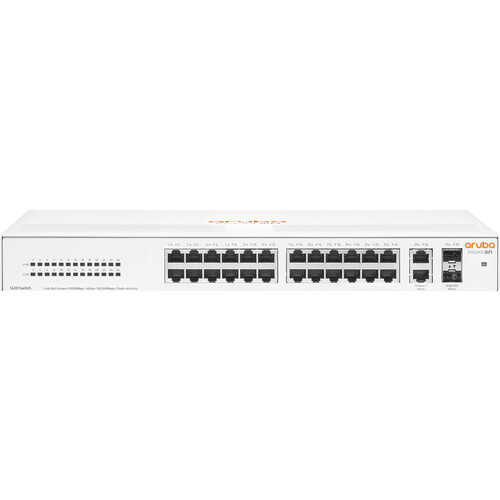

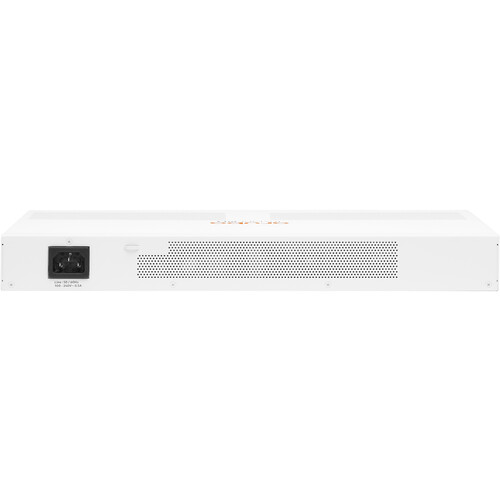

HPE Networking Instant On 1430 26-Port Unmanaged Switch with SFP
Key Features
- 26 x RJ45 Gigabit Ethernet Ports
- 2 x Gigabit SFP Ports
- 56 Gbps Switching Capacity
- 41.68 Mpps Throughput
- 32Mb Flash Memory & 12Mb Packet Buffer
- Unmanaged Design
- Rack Mountable with Included Hardware
AED999.00
HPE Networking Instant On 1430 Overview
Streamline Ethernet traffic for small business applications with the Instant On 1430 26-Port Unmanaged Switch with SFP from HPE Networking. This sports 26 RJ45 Gigabit Ethernet and two Gigabit SFP ports. Providing a 56 Gbps switching capacity and up to 41.68 Mpps of throughput, the Instant On 1430 utilizes 32Mb of flash memory and a 12Mb packet buffer. A rack mountable design allows for easy installation to server racks using the included brackets; this switch also supports tabletop, under-table, and wall mounting. Please note, the switch should not be mounted upside-down.
Unmanaged Ethernet Connectivity for Small Businesses
Boasting 26 RJ45 Gigabit Ethernet ports, the HPE Networking Instant On 1430 provides unmanaged Layer 2 switching for small business applications. Breeze through deployment and setup thanks to 24×7 phone support for the first 90 days and chat support for the entire limited lifetime warranty period. Community support is also included for the life of the product.
Plug-and-Play Operation
The HPE Networking Instant On 1430 Switch Series models are easy to use with zero configuration and no required ongoing administration. Simplified cabling automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports using Auto MDI/MDI-X. Plus, a rack mountable design allows for easy installation to server racks using the included brackets; this switch also supports tabletop, under-table, and wall mounting. Please note, the switch should not be mounted upside-down.
Energy Efficiency and Traffic Optimization
The HPE Networking Instant On 1430 Switch Series supports Energy Efficient Ethernet (EEE) and is compliant with 802.3az standard requirements to save energy during periods of low data activity. A fanless design allows for silent operation in office settings or acoustically sensitive environments and requires less power to operate.
Quality of Service ensures the priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification. Jumbo frame support provides up to 9216 bytes frame size to improve the performance of large data transfers. Flow control provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.
Dedicated SFP Ports
Two dedicated Gigabit SFP fiber ports can be used for uplinks and to support long distance connectivity using fiber transceivers, for a total of 28 Ethernet ports. No configuration is required beyond installation.
Key Specs
| Inputs/Outputs | |
| Stackable | |
| Switching Bandwidth |
| Stackable |
Protocols
| Layer Services Supported | |
| Jumbo Frames Support | |
| MAC Address Table Size |
Performance
| Latency | |
| Forwarding Rate | |
| Switching Bandwidth | |
| Packet Buffer |
Electrical
| Power Draw | |
| Power Supply Type |
General
| Certifications | |
| Operating Conditions | |
| Storage Conditions | |
| Cooling System | |
| Mean Time Between Failures (MTBF) | |
| Indicator Lights | |
| Rack Mountable | |
| Dimensions | |
| Weight |
Packaging Info
| Package Weight | |
| Box Dimensions (LxWxH) |
