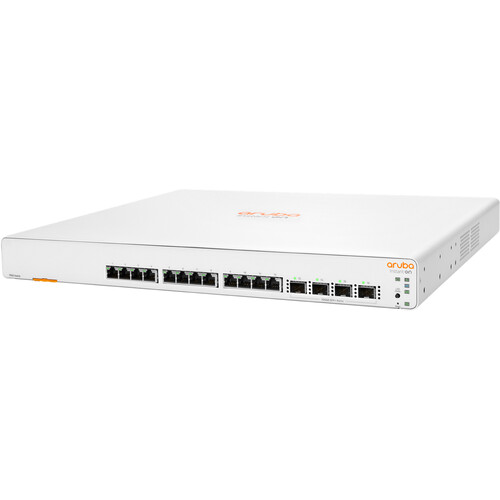

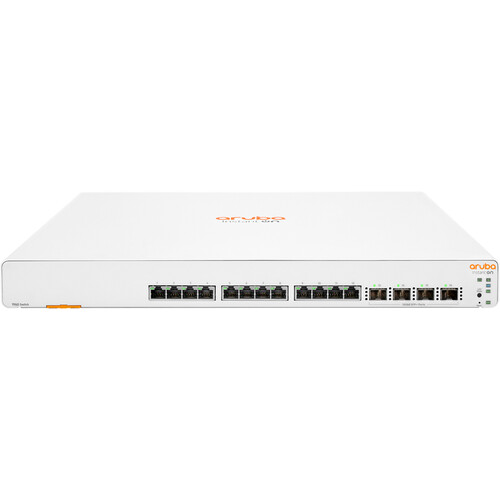

HPE Networking Instant On 1960 12XGT 12-Port 10G Managed Network Switch with SFP+


Key Features
  • 12 x 10G RJ45 Ethernet Ports
  • 4 x 10G SFP+ Ports
  • 320 Gb/s Switching Capacity
  • 238 Mpps Forwarding Rate
  • Rack-Mountable
  • 2 GHz ARM Cortex-A9 Single-Core CPU
  • Local & Cloud-Based Management

AED8,499.00

HPE Networking Instant On 1960Ā Overview

TheĀ HPE Networking Instant On 1960 12XGT 12-Port 10G Managed Network SwitchĀ is an advanced, smart-managed, fixed configuration Gigabit stackable switch designed for small and growing businesses that are easy to deploy. These switches are designed to scale as business grows, making adding more employees, devices and applications simple.

Featuring twelve 10G Ethernet ports while supporting a 320 Gb/s switching capacity and 238 Mpps forwarding rate, the HPE Networking Instant On 1960 switch is designed to handle bandwidth-heavy applications like voice and video conferencing. Four 10G SFP+ fiber slots are available for high-speed uplinks. This switch also lets you choose between the local web GUI management and using the Instant On mobile app and cloud-based web portal from almost anywhere.

High-Level 10GbE Networking
The HPE Networking Instant On 1960 switch includes four 10G SFP+ connections to connect to servers, network storage devices, or to other switches.
Simplify Network Deployment and Management
The HPE Networking Instant On 1960 Switch series offers a complete portfolio of choices for increased small business flexibility. They can be deployed using two management modes – Instant On cloud management (access via mobile app and/or web portal) and the local web GUI.
Cloud-Managed Stacking for Ease of Use
The HPE Networking Instant On mobile app and cloud-based web portal make cloud-managed stacking easy – just follow the recommendations to stack up to four HPE Networking Instant On 1960 switches and manage as a single entity.
Robust Security
The HPE Networking Instant On 1960 Switch Series lets you use VLANs and Access Control Lists to set bounds on what data can be seen by which users. Leverage 802.1x with a RADIUS server to ensure only known and authorized users can access your network. Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
Category: Tag:
Key Specs
Inputs/Outputs
12x RJ45 10 GbE
4x SFP+ 10 GbE WAN
Stackable
No
Switching Bandwidth
320 Gb/s
Stackable
No
Protocols
Layer Services Supported
Layer 2
Supported Protocols
Auto-MDIX/MDI
Auto-VoIP
IGMP Snooping
IPv4
IPv6
Link Aggregation
Port Mirroring
RADIUS
MAC Address Table Size
16K
Security
Security Features
DoS Attack Prevention
RADIUS Authentication
Performance
Latency
1.1 to 7.4 µs
Forwarding Rate
238 Mpps
Switching Bandwidth
320 Gb/s
Computer
CPU
Single-Core:Ā Up to 2 GHz Cortex A9
Electrical
Power Draw
160.00 W (Max)
80.00 W (Idle)
Input Power
100 to 240 VAC, 50 / 60 Hz at 0.4 to 1.3 A
Power Supply Type
Internal
General
Certifications
No
Operating Conditions
32 to 104°F / 0 to 40°C at 15 to 95% Humidity
Storage Conditions
-40 to 158°F / -40 to 70°C at 15 to 90% Humidity
Noise Level
0.0 dB
Cooling System
Passive
Indicator Lights
Yes
Rack Mountable
No
Dimensions
17.42 x 13.8 x 1.7″ / 44.25 x 35.05 x 4.4Ā cm
Weight
9.5Ā lb / 4.3Ā kg
Packaging Info
Package Weight
13.885 lb
Box Dimensions (LxWxH)
22.3 x 19.4 x 4.8″
