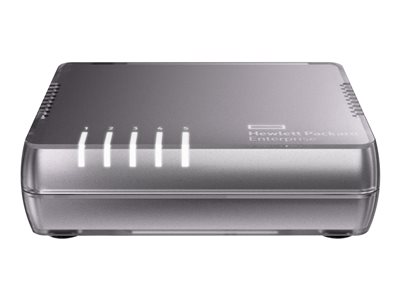

HPE OfficeConnect 1405 5G v3 – switch – 5 ports – unmanaged – remarketed JH407AR
10 in stock
AED299.00
10 in stock
Sabrent 13PORT USB 2.0 Hub with AC Power
Overview
The HPE OfficeConnect 1405 Switch Series consists of Plug-and-Play unmanaged switches designed for small offices, in both Gigabit Ethernet and Fast Ethernet configurations. The 1405 Small Office switches are preconfigured for fast, easy installation, with connections using low-cost Ethernet copper cabling. They support administration-friendly features such as auto-negotiation and automatic cable type detection (MDI/MDIX). The models have energy-saving features such as Energy Efficient Ethernet (EEE) and idle-port power down. All models are fanless for quiet and “green” operation, and are designed for high reliability, long life, low power consumption, and low total cost of ownership.
Traffic prioritization
Allows real-time traffic classification mapped to multiple hardware queues.
Class of Service (CoS)
Prioritizes traffic by honoring Differentiated Services Code Point (DSCP).
Auto-MDIX
Automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 ports.
Flow control
Helps ensure reliable communications during full-duplex operation.
Comprehensive LED display with per-port indicators
Provides an at-a-glance view of status, activity, speed, and full-duplex operation.
Fanless design
Enables quiet operation for deployment in open spaces.
Specifications
| Device Type | Switch – 5 ports – unmanaged |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 |
| Performance | Switching capacity: 10 Gbps Throughput: 7.4 Mpps Latency (100 Mbps): 3 µs Latency (1000Base-T): 2.6 µs |
| MAC Address Table Size | 2048 entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Flow control, full duplex capability, layer 2 switching, auto-uplink (auto MDI/MDI-X), half duplex mode, Quality of Service (QoS), fanless, Energy Efficient Ethernet, 1MB packet buffer, Class of Service (CoS), DiffServ Code Point (DSCP) support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
| Interfaces | 5 x 1000Base-T RJ-45 |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 3 Watt |
| Compliant Standards | Plug and Play, UL 60950, EN55022 Class B, ICES-003 Class B, RoHS, IEC 60950-1, EN 60950-1, WEEE, CAN/CSA C22.2 No. 60950-1-03, AS/NZS CISPR 22 Class B, FCC Part 15 Class B |
| Pricing Type | Remarketed |
| Width | 4.5 in |
| Depth | 3.6 in |
| Height | 1.4 in |
| Weight | 6.35 oz |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 15 – 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 15 – 95% (non-condensing) |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
| Device Type | Switch – 5 ports – unmanaged |
| Enclosure Type | Desktop |
| Features | Flow control, full duplex capability, layer 2 switching, auto-uplink (auto MDI/MDI-X), half duplex mode, Quality of Service (QoS), fanless, Energy Efficient Ethernet, 1MB packet buffer, Class of Service (CoS), DiffServ Code Point (DSCP) support |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 2048 entries |
| Performance | Switching capacity: 10 Gbps ¦ Throughput: 7.4 Mpps ¦ Latency (100 Mbps): 3 µs ¦ Latency (1000Base-T): 2.6 µs |
| Ports | 5 x 10/100/1000 |
| Subtype | Gigabit Ethernet |
| Dimensions & Weight | |
|---|---|
| Depth | 3.6 in |
| Height | 1.4 in |
| Weight | 6.35 oz |
| Width | 4.5 in |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 15 – 95% (non-condensing) |
| Humidity Range Storage | 15 – 95% (non-condensing) |
| Max Operating Temperature | 104 °F |
| Max Storage Temperature | 158 °F |
| Min Operating Temperature | 32 °F |
| Min Storage Temperature | -40 °F |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 5 x 1000Base-T RJ-45 |
| Miscellaneous | |
|---|---|
| Compliant Standards | Plug and Play, UL 60950, EN55022 Class B, ICES-003 Class B, RoHS, IEC 60950-1, EN 60950-1, WEEE, CAN/CSA C22.2 No. 60950-1-03, AS/NZS CISPR 22 Class B, FCC Part 15 Class B |
| Pricing Type | Remarketed |
| Power | |
|---|---|
| Power Consumption Operational | 3 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
