HPE R2H28A – Aruba AP505 Access Point

Add to Wishlist

HPE R2H28A – Aruba AP505 Access Point

AED25,995.00

Add to Wishlist

R2H28A Overview

R2H28A is the Aruba AP-505 (RW) – Campus – wireless access point. These affordable Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of mobile, IoT and mobility requirements. With a maximum aggregate data rate of 1.77 Gbps (1.774 Gbps), they deliver the speed and reliability needed for venues and workplaces such as schools, midsize offices and retailers.

Quick Spec

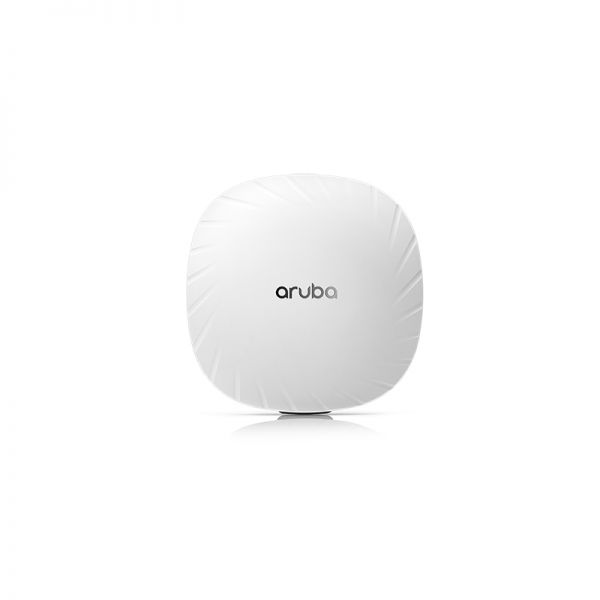

Figure 1 shows the appearance of R2H28A.

R2H28A
Table 1 shows the quick spec.

Model R2H28A
Series Aruba AP-505
AP type Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 2×2 MIMO
5GHz radio Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices
2.4GHz radio Two spatial stream Single User (SU) MIMO for up to 574Mbps (287 Mbps) wireless data rate with 2SS HE40 (HE20) 802.11ax client devices
Antenna 2 Internal Omni-directional 5.7 DBi Antenna
Maximum number of associated

client devices

 Up to 256 associated client devices per radio
Supported data rates (Mbps) • 802.11b: 1, 2, 5.5, 11

• 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

• 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM

• 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM

• 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

• 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)

Product Details

Figure 2 shows the front panel of R2H28A.
R2H28A front

Figure 3 shows the back panel of R2H28A.

R2H28A back
Aruba AP-500 provides these key features:

• 1.49 Gbps maximum real-world speed (HE80/HE20)

• WPA3 and Enhanced Open security

• Built-in technology that resolves sticky client issues

for Wi-Fi 6 and Wi-Fi 5 devices

• OFDMA for enhanced multi-user efficiency

• IoT-ready Bluetooth 5 and Zigbee support

The Accessories

Table 2 shows the accessories of R2H28A.

Mount Kit
R3J18A AP-MNT-D Campus AP mount bracket kit (individual) type D: solid surface
R3J19A AP-MNT-E Campus AP mount bracket kit (individual) type E: wall-box
Power Adaptor
R3K00A AP-AC2-12B 12V/48W AC/DC desktop style power adapter with 2.1/5.5mm connector

Compare to Similar Items

Table 3 shows the comparison.

Model R2H28A JZ336A
Series Aruba AP-505 Aruba AP-535
AP type Indoor, dual radio, 5GHz and 2.4GHz 802.11ax

2×2 MIMO

 Indoor, dual radio, 5GHz and 2.4GHz 802.11ax

4×4 MIMO
5GHz radio Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices Four spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with individual 4SS HE80 (or 2SS HE160) 802.11ax client devices, or with four 1SS or two 2SS HE80 802.11ax MU-MIMO capable client devices simultaneously
2.4GHz radio Two spatial stream Single User (SU) MIMO for up to 574Mbps (287 Mbps) wireless data rate with 2SS HE40 (HE20) 802.11ax client devices Four spatial stream Single User (SU) MIMO for up to 1,147Mbps (574Mbps) wireless data rate with individual 4SS HE40 (HE20) 802.11ax client devices or with two 2SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously
Antenna 2 Internal Omni-directional 5.7 DBi Antenna 4 integrated dual-band downtilt omnidirectional antennas for 4×4 MIMO with peak antenna gain of 3.5dBi in 2.4GHz and 5.4dBi in 5GHz.
Supported data rates (Mbps) • 802.11b: 1, 2, 5.5, 11

• 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

• 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM

• 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM

• 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

• 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)

 – 802.11b: 1, 2, 5.5, 11

– 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

– 802.11n: 6.5 to 600 (MCS0 to MCS31, HT20 to HT40), 800 with 256-QAM

– 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160), 2,166 with 1024-QAM

– 802.11ax (2.4GHz): 3.6 to 1,147 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE40)

– 802.11ax (5GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)
