R4H12A Overview
Weatherproof and temperature-hardened, Aruba 570 Series access points deliver high Wi-Fi 6 performance in outdoor and environmentally challenging locations. The 570 high-performance and high-power series delivers maximum capacity and range. It delivers 4×4:4SS MU-MIMO capability, Aruba’s advanced ClientMatch and integrated Bluetooth to enable Aruba location services.
Quick Specs

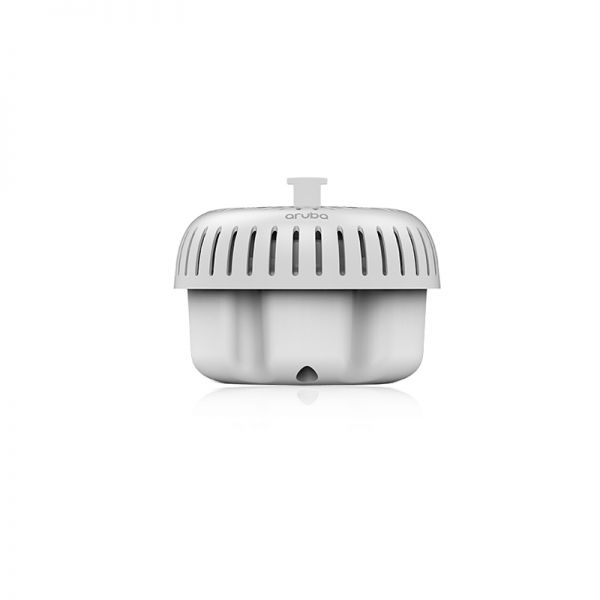

Figure 1 shows the appearance ofĀ R4H12A.
Table 1 shows the Quick Specs.
Product Code | R4H12A |
Power Consumption | 25.6W, max (AP only) |
Input voltage | IEEE 802.3at PoE, or direct DC power (via optional power supply) |
Regulatory | FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 60950 EN 60601-1-1, EN60601-1-2 |
Wi-Fi antenna | Four RP-SMA connectors for external antenna, 5 GHz operation, and two RP-SMA connectors for external antenna, 2.4 GHz operation |
Product Dimensions (imperial) | 7.5 x 9.0 x 9.4 in (H x W x D) |
Product Details
Figure 2 shows the front panel of R4H12A.
Figure 3 shows the back panel of R4H12A.
R4H12A provides these features:
Incredible Efficiency with Wi-Fi 6
- The Aruba 570 Series Outdoor Access Points support the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA), bi-directional Multi-User MIMO (MU-MIMO), and Target Wait Time (TWT).
- Patented RF optimization technologies like ClientMatch have also been enhanced with Wi-Fi 6 awareness to group Wi-Fi 6-capable client devices together for optimized network utilization.
- The Aruba 570 Series also supports Air Slice, a unique capability that enhances OFDMA with SLA-grade application assurance from the access point to the client device.
Infrastructure Designed with Flexibility in Mind
- The Aruba 570 Series Outdoor Access Points are purpose-built to deliver unified connectivity and support flexible deployment options.
- This product can be managed by Aruba Central, as well as with existing on-premises and local management options.
- It is purpose-built to survive in the harshest outdoor environments, withstanding exposure to extreme high and low temperatures, persistent moisture, and is sealed to keep out airbourne contaminants.
IoT Platform Capabilities
- The Aruba 570 Series Outdoor Access Points have the ability to support up to 512 associated clients per Wi-Fi radio ā ideal for organizations deploying Wi-Fi connected IoT devices.
- Supports Bluetooth 5 and ZigbeeĀ® wireless protocols through an integrated IoT radio, and third-party expansion with an integrated USB port.
- Features improved client visibility with integrated device profiling, and the option for advanced insights when integrated with ClearPass Policy Manager or ClearPass Device Insight.
