R4H17A Overview
Weatherproof and temperature hardened, Aruba 570 series access points deliver high Wi-Fi performance in outdoor and environmentally challenging locations. The high-performance and high-power 570 series APs deliver maximum capacity and range.
Quick Specs

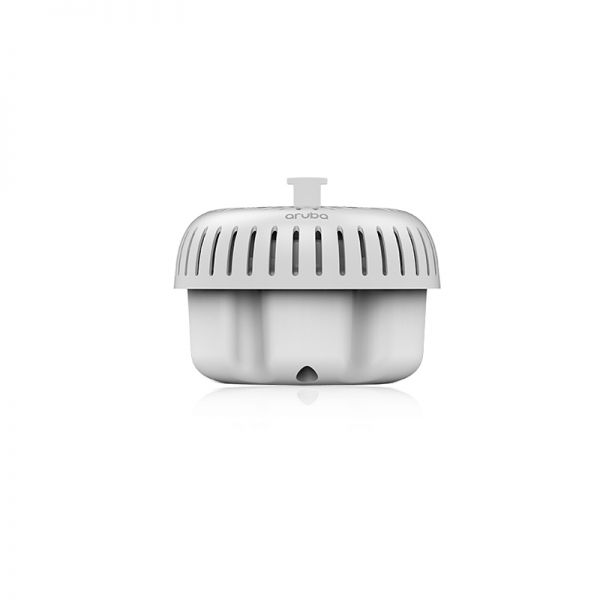

Figure 1 shows the appearance ofĀ R4H17A.
Table 1 shows the Quick Specs.
Product Code | R4H17A |
PortsĀ | (1) HPE SmartRate RJ-45 port, auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX. 2.5 Gbps speed complies with NBASE-T and 802.3bz specifications (1) 10/100/1000BASE-T (RJ-45) port, auto-sensing link speed and MDI/MDX |
Input voltageĀ | IEEE 802.3at PoE, or direct DC power (via optional power supply) |
Power ConsumptionĀ | 25.6W, max (AP only) |
Wi-Fi antennaĀ | Built-in omni-directional antennas: 5 GHz (4.6 dBi), 2.4 GHz (4.0 dBi) |
Radio coverageĀ | Outdoor-hardened, Wi-Fi 6 dual radio, 5 GHz 4×4 MIMO and 2.4 GHz 2×2 MIMO Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1) Maximum data rates of 4.8 Gbps in the 5GHz band and 575 Mbps in the 2.4GHz band |
Product Dimensions (imperial)Ā | 10.6 x 9.0 x 9.4 in (H x W x D) |
Product Details
Figure 2 shows the front panel of R4H17A.
Figure 3 shows the side panel of R4H17A.
R4H17A provides these features:
Incredible Efficiency with Wi-Fi 6
- The Aruba 570 Series Outdoor Access Points support the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA), bi-directional Multi-User MIMO (MU-MIMO), and Target Wait Time (TWT).
- Patented RF optimization technologies like ClientMatch have also been enhanced with Wi-Fi 6 awareness to group Wi-Fi 6-capable client devices together for optimized network utilization.
- The Aruba 570 Series also supports Air Slice, a unique capability that enhances OFDMA with SLA-grade application assurance from the access point to the client device
Infrastructure Designed with Flexibility in Mind
- The Aruba 570 Series Outdoor Access Points are purpose-built to deliver unified connectivity and support flexible deployment options.
- This product can be managed by Aruba Central, as well as with existing on-premises and local management options.
- It is purpose-built to survive in the harshest outdoor environments, withstanding exposure to extreme high and low temperatures, persistent moisture, and is sealed to keep out airbourne contaminants.
IoT Platform Capabilities
- The Aruba 570 Series Outdoor Access Points have the ability to support up to 512 associated clients per Wi-Fi radio ā ideal for organizations deploying Wi-Fi connected IoT devices.
- Supports Bluetooth 5 and ZigbeeĀ® wireless protocols through an integrated IoT radio, and third-party expansion with an integrated USB port.
- Features improved client visibility with integrated device profiling, and the option for advanced insights when integrated with ClearPass Policy Manager or ClearPass Device Insight.
