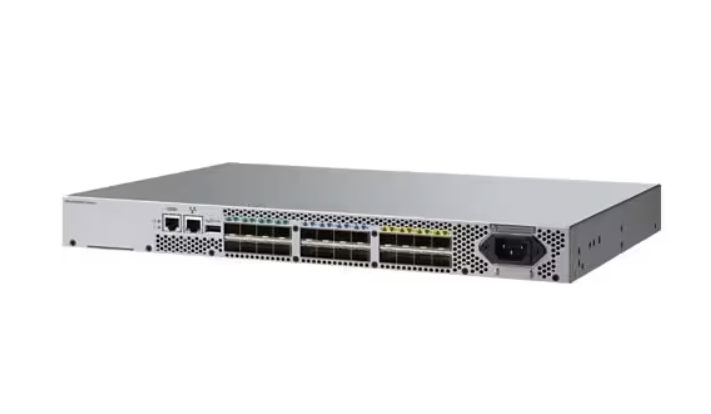

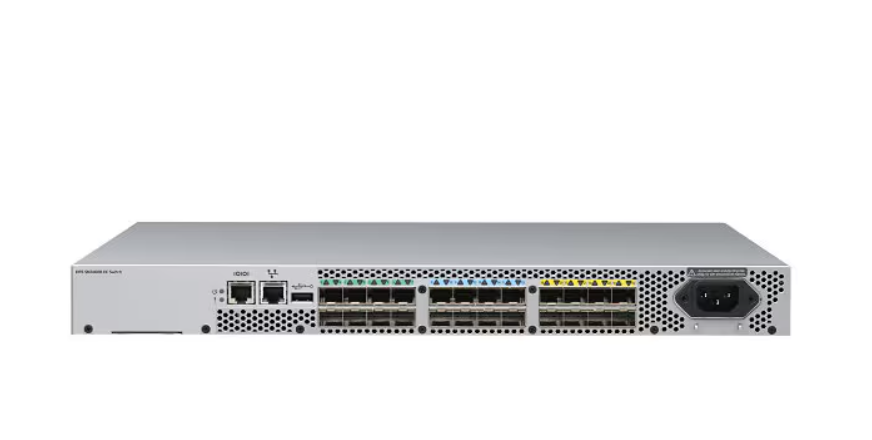

HPE SN3600B 32Gb 24-port/8-port Active Fibre Channel Switch – switch – 8 ports – managed – rack-mountable


Quick tech specs

  • port/8-port Active Fibre Channel Switch
  • managed
  • rack-mountable
  • Switch
  • 8 x 32Gb Fibre Channel SFP28 + 16 x 32Gb Fibre Channel SFP28 Ports on Demand

AED94,099.00

Know your gear

Are you struggling to meet the I/O demands of hyperscale virtualization, cloud, or growing flash-based SANs? HPE Storage Fibre Channel Switch B-series SN3600B provides Gen6 32Gb Fibre Channel (FC) in an ultra-dense 1U format from 8-ports up to 24-ports, and is affordable for limited budgets. It can replace three generations of FC with its backward compatibility with 4, 8, and 16Gb FC for your investment protection. Designed to build a flash-ready infrastructure, it specifically adapts to business application needs. Applications requiring more throughput and lower latency can also take advantage of NVMe over FC ready support. SAN simplicity is achieved with a simple 3-step install process and SAN deployments with HPE 3PAR all-flash storage are automated using HPE Smart SAN for HPE 3PAR software. Data reliability is enhanced with forward error correction (FEC) by automatically detecting and recovering bit error along with HPE Power Pack+ software, which maintains efficient SAN-health.
SKU: R7R97A Category: Tag:
Category Specification
Overview
Brand HPE
Product Line HPE
Model SN3600B 32Gb 24-port/8-port Active Fibre Channel Switch
Manufacturer Hewlett-Packard
Network & Communication
Features IP address filtering, IPv6 support, Role-Based Access Control (RBAC), Secure Copy (SCP), Secure RPC, Syslog support, Trusted Switch
Form Factor (Hubs & Switches) Rack-mountable
Manageable Yes
Ports 8
Product Type Switch
Remote Management CLI, HTTP, HTTPS, LDAP, SFTP, SMI-S, SNMP 1, SNMP 3, SSH, SSH-2
Subcategory Fibre Channel and SAN
Switching Type Fibre Channel
Connectivity
Interface Provided 1 x serial RJ-45, 1 x USB, 16 x 32Gb Fibre Channel SFP28 Ports on Demand, 8 x 32Gb Fibre Channel SFP28 short wave
Port Quantity 8
Port Type 32Gb Fibre Channel SFP28
Ports Type (2nd) 32Gb Fibre Channel SFP28 Ports on Demand
Power
Frequency 50/60 hertz
Hot-Plug Hot-plug
Power Supplies Supported 1
Redundant Power Supply Optional
Required Voltage AC 120/230 volt
Software
Software Type Advanced Fabric OS, Advanced Web Tools, Advanced Zoning
Technical Information
Humidity Range Storage 10 – 90% (non-condensing)
Max Operating Temperature 104 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -13 degree Fahrenheit
Operating Humidity 10 – 85% (non-condensing)
Product Information
Authentication Method DH-CHAP, FCAP, RADIUS, TACACS+
Device Type Internal power supply (not installed)
Packaged Quantity 1
Performance Aggregate switching bandwidth: 768 Gbps
Ports (2nd) Quantity 16
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 12.7 lbs
Width 16.9 inch
Depth 12.1 inch
Physical Characteristics
Color Category Silver
Certifications & Listings
TCO Certified No
