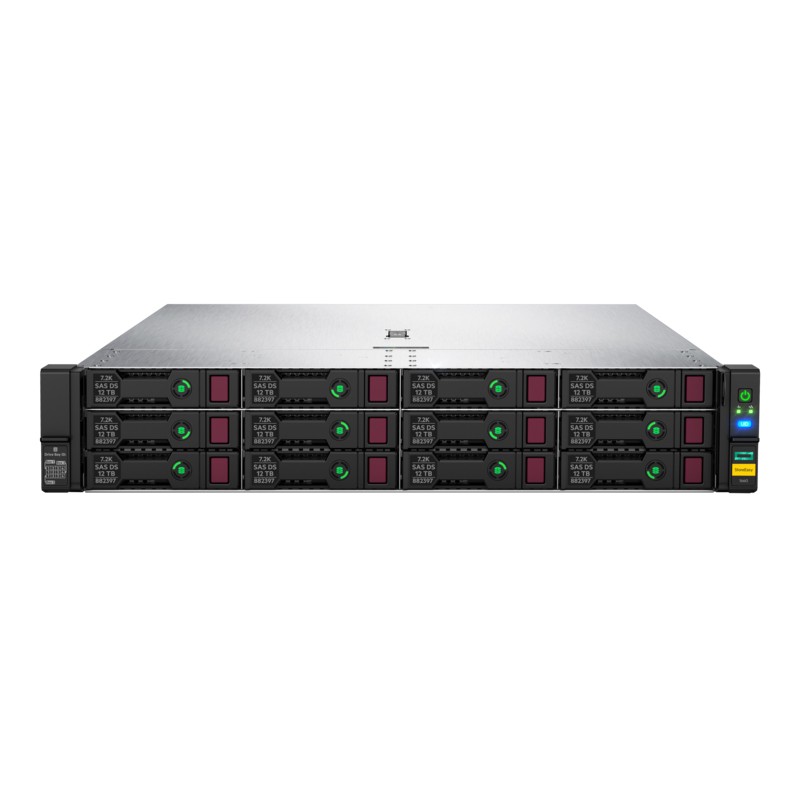

Q2P75A is the HPE StoreEasy 1660 64TB SAS Storage. HPE StoreEasy 1660 Storage products deliver high capacity and drives down your cost per GB. Four or six-core processing (depends on model selected), up to 16 LFF hot-plug drive slots, and ready for external expandability enhance this ultra-dense 2U shared storage solution for small, medium, or large IT environments. HPE StoreEasy 1660 models come with Windows Storage Server 2016 Standard Edition OS pre-installed from the factory on two M.2 Solid State Disks. The HPE StoreEasy 1660 is built on a ProLiant DL380 Gen 10 Server and includes a rail kit.
HPE StoreEasy 1660 Storage Specification |
|
| Processor | 1 x Intel® Xeon-Silver 4112 (2.6GHz/4-core/85W) or Intel® Xeon-Bronze 3104 (1.7GHz/6-core/85W); 2ndprocessor optional
NOTE: The Xeon-Silver 4112 processor is only available on the HPE StoreEasy 1660 Performance Storage model (SKU# Q2P71A). |
| Memory | 16GB (1 x HPE 16GB Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory) |
| Storage Controller | HPE Smart Array P816i-a SR Gen10 (16 Internal Lanes/4GB Cache/SmartCache) 12G SAS Modular Controller for data drives
HPE Smart Array S100i SR Gen10 SW RAID for OS drives only |
| Internal Drive Support | 12 LFF (3.5″) hot-plug drive bays in front, optional 4LFF hot-plug mid-chassis drive cage |
| Network Port(s) | 4 x 1GbE; optional FlexLOM adapter or PCIe NICs |
| Expansion Slots | 3x PCIe; optional 3 slot secondary riser
NOTE: One PCIe slot occupied by M.2 SSD card. |
| Security | Trusted Platform Module 2.0 and 2U Lockable Security Bezel |
| Power | 2 x 800W Platinum |
| Cooling | 6 hot-plug, high-performance redundant fans |
| Form Factor | 2U rack |
| Operating Systems | Microsoft® Windows Storage Server 2016, Standard Edition |
| Licenses | HPE iLO Advanced Premium Security Edition License with 1yr Support on Licensed Features |
| Dimensions | LFF Drives:
8.73 x 44.54 x 73.02 cm 3.44 x 17.54 x 28.75 in |
| Input Requirements
(per power supply) |
Rated Line Voltage: 100 to 120 VAC / 200 to 240 VAC |
| BTU Rating (Maximum) | For 800W Power Supply: 3207 BTU/hr (at 100 VAC), 3071 BTU/hr (at 200 VAC), 3112 BTU/hr (at 240 VAC) for China Only
For 500W Power Supply: 1979 BTU/hr (at 100 VAC), 1911 BTU/hr (at 200 VAC), 1965 BTU/hr (at 240 VAC) for China Only |
