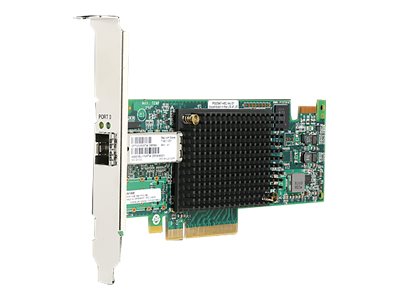

HPE StoreFabric SN1100Q 16Gb Single Port – host bus adapter – PCIe 3.0 – 16Gb Fibre Channel x 1

Add to Wishlist

HPE StoreFabric SN1100Q 16Gb Single Port – Host bus adapter – PCIe 3.0 low profile – 16Gb Fibre Channel x 1 – for ProLiant DL325 Gen10, DL345 Gen10, DL365 Gen10, DX360 Gen10, XL220n Gen10, XL290n Gen10

AED8,199.00

Add to Wishlist

Looking for a high-bandwidth HBA solution to meet the requirements of increasing server virtualization and consolidation? Finding it difficult to realize the full bandwidth potential of your server running I/O intensive applications? The HPE StoreFabric SN1100Q 16Gb Host Bus Adapters deliver twice the I/O performance of 8 Gb HBAs, it takes storage networking performance and efficiency to the next level. They enable rapid storage and retrieval of critical information when using high bandwidth cloud applications and storage intensive applications such as backup, database transactions and rich media. Designed for increased virtual machine density and bandwidth requirements, the SN1100Q 16Gb HBA products enable more applications and virtual machines to run on a single server and port, resulting in reduced cabling. The SN1100Q 16Gb HBAs are backward compatible with 8 Gb and 4 Gb networks and will protect your current and future IT investments.

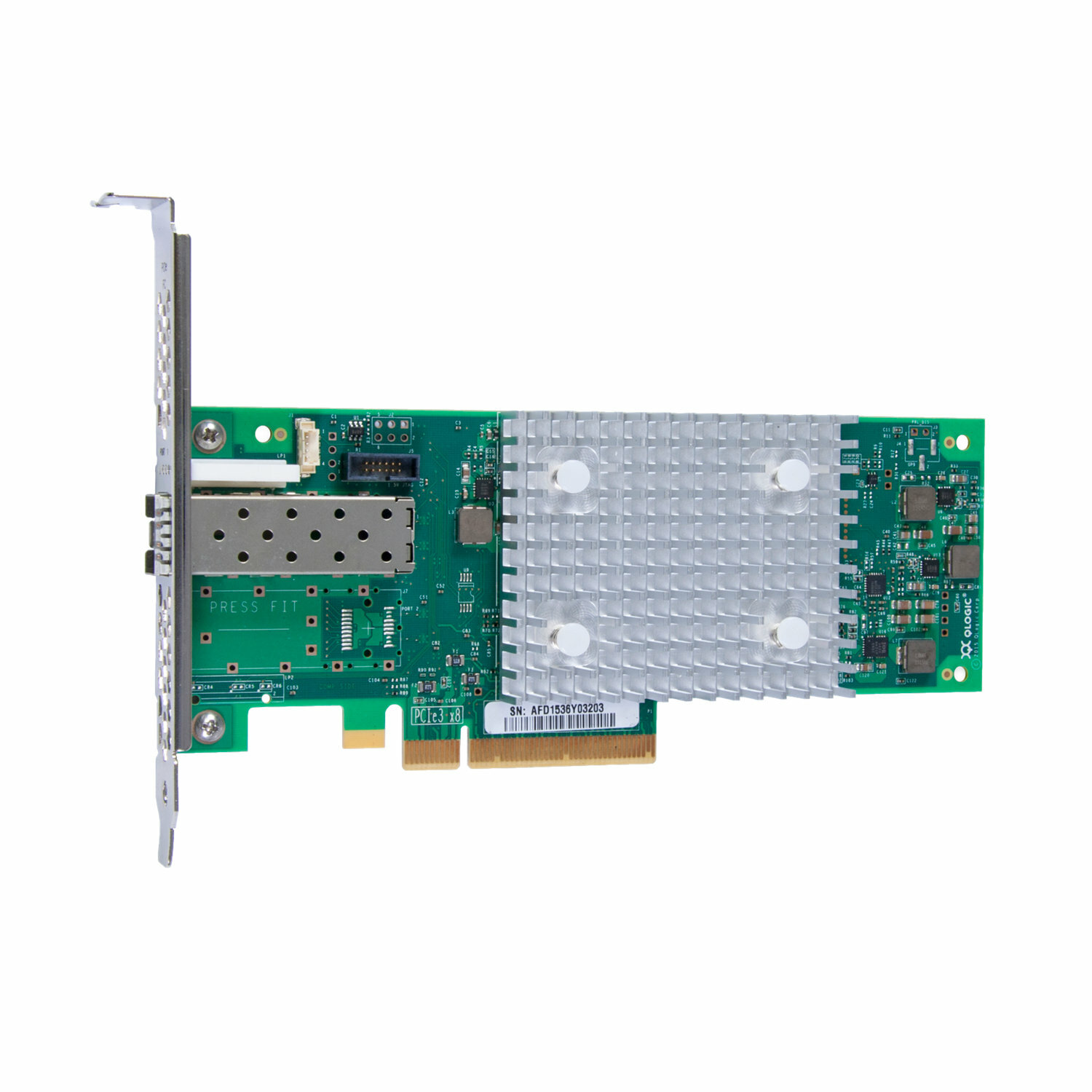

HPE SN1100Q 16Gb Single Port Fibre Channel Host Bus Adapter

Is your remote office, department or company looking to consolidate data spread across multiple HPE ProLiant servers into a highly reliable and affordable SAN? There are many benefits to a consolidated storage strategy. The HPE SN1100Q 16Gb Host Bus Adapters (HBAs) build a Fibre Channel connection when installed into an HPE ProLiant server and cabled to a switch and storage device. Multiple physical HPE ProLiant servers and/or virtual servers can be routed using a Fibre Channel switch to an HPE storage array such as the HPE MSA, HPE Nimble Storage or HPE Alletra storage devices. This level of consolidation concentrates storage management on one storage device and provides an equally powerful and reliable connection for each server and its applications. Additionally, an onsite data protection device such as a disk or tape backup can leverage the same Fibre Channel infrastructure helping eliminate slow over-the-network backups.

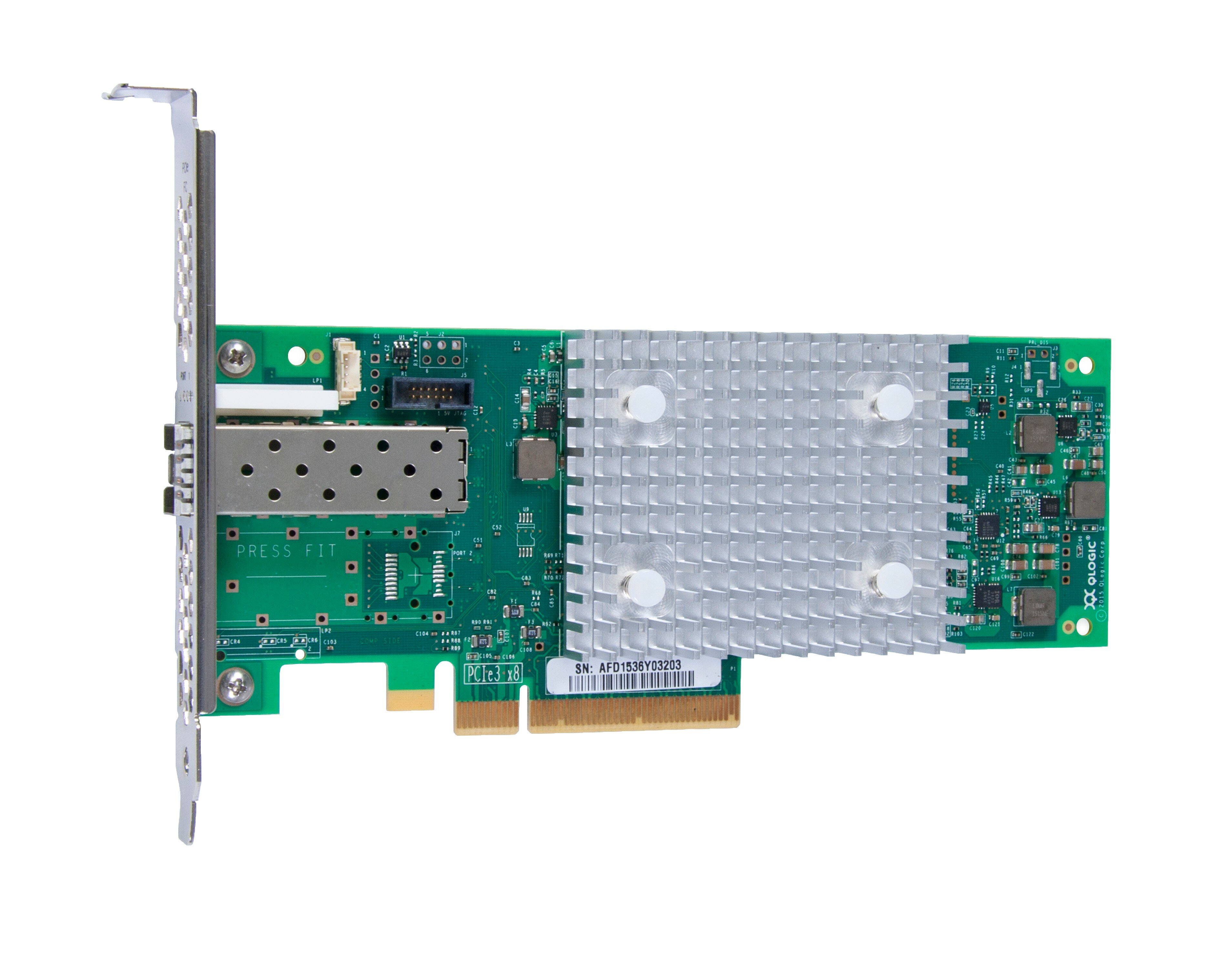

HPE SN1100Q 16Gb Single Port Fibre Channel Host Bus Adapter
slide 1 of 1, show larger image, hpe sn1100q 16gb single port fibre channel host bus adapter
Lowest entry point to any SAN configuration
SAN Delivers a Compounding Set of Application and Storage Benefits

SAN Delivers a Compounding Set of Application and Storage Benefits

  • Implement a high-performance SAN data connection for improving database performance and their applications.
  • If using virtual servers, realize each server will generate their I/O that could overrun an Ethernet network but would be accelerated on a Fibre Channel SAN network.
  • Sharing a high-speed storage array helps maximize HPE ProLiant servers and their associated application performance while allowing storage management tasks to be performed on one storage device — not repetitive storage tasks at each HPE ProLiant.
The Fibre Channel protocol is the most secure method to deliver data

The Fibre Channel protocol is the most secure method to deliver data

  • The SN1100Q 16Gb HBA uses Fibre Channel as the data transport protocol. That protocol has no IP address and requires other devices to use the Fibre Channel protocol. This protocol helps eliminate any outside communications making it impervious to outside attacks.
  • Data delivery is performed with extra features designed to automate error correction to prevent delivery retries.
  • While the Fibre Channel protocol can securely deliver data on a connection, Fibre Channel also allows multiple physical connections from server to storage to reduce potential downtime from issues such as bad or unplugged cables, faulty connectors, faulty switch ports or weak storage controllers.
Expand or Contract the SAN as Needed

Expand or Contract the SAN as Needed

  • A Fibre Channel SAN allows for the introduction of additional HPE ProLiant servers if there are available active Fibre Channel switch ports. Generally, an HPE ProLiant server can be introduced, configured, and booted without disruption to the existing devices.
  • If physical servers are not part of the expansion strategy, virtual servers can be introduced with similar ease with products like VMware vSphere® Storage vMotion® where, for example, you can move multiple virtual machines onto a new server in the SAN.
SKU: P9D93A 1 Category: Tag:
General
Device Type Host bus adapter
Form Factor Plug-in card – low profile
Interface (Bus) Type PCI Express 3.0
Networking
Ports 16Gb Fibre Channel x 1
Connectivity Technology Wired
Cabling Type Fiber optic
Data Link Protocol 4Gb Fibre Channel (Short Wave), 8Gb Fibre Channel (Short Wave), 16Gb Fibre Channel (Short Wave)
Data Transfer Rate 14.025 Gbps
Features Auto-negotiation
Expansion / Connectivity
Expansion Slots 1 (total) / 0 (free) x SFP+
Interfaces 1 x 16Gb Fibre Channel (Short Wave) – LC multi-mode
Software / System Requirements
OS Required SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2008 (32/64-bits), VMware ESXi, VMware ESX
Compatibility Information
Designed For HPE Apollo 4200 Gen10, 4510 Gen10; HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10; HPE ProLiant DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus, DL345 Gen10 Plus Base, DL345 Gen10 Plus Entry, DL360 Gen10, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Base, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL365 Gen10 Plus, DL385 Gen10 Plus, DL385 Gen10 Plus Entry, DX360 Gen10 Plus, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10, XL190r Gen10 for HPE Ezmeral Container Platform, XL220n Gen10 Plus, XL270d Gen10, XL270d Gen10 for HPE Ezmeral Container Platform, XL290n Gen10 Plus, XL645d Gen10 Plus
