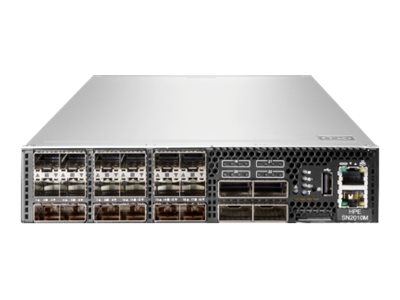

HPE StoreFabric SN2010M – switch – 24 ports – managed – rack-mountable

Add to Wishlist
HPE StoreFabric SN2010M – Switch – L3 – managed – 4 x 100 Gigabit QSFP28 + 18 x 10 Gigabit / 25 Gigabit SFP28 – rack-mountable – for Apollo 4200, 4200 Gen10

AED73,299.00

Add to Wishlist

How can you provide fast, reliable and cost-effective connectivity in the data center with predictable performance and investment protection? The HPE StoreFabric SN2010M Switch is ideal for modern server and storage networks. Supporting port speeds of 1, 10, 25, 40, 50 and 100GbE, they deliver predictable performance and zero packet loss at line-rate. Its unique port counts and half-width form factor allows for up to two HPE StoreFabric SN2010M Switch units to be deployed side-by-side for increased density and high-availability in a single rack unit making it the perfect top-of-rack switch. Storage-specific features combined with an efficient design provides enterprise-level performance with attractive economics and outstanding ROI. Networks built on Hewlett Packard Enterprise M-series switches are fast, reliable, and scalable while also being affordable. This makes these switches ideal for storage, hyperconverged, financial services, Big Data and media and entertainment deployments.

SKU: Q9E63A Category: Tag:
Device Type Switch – 24 ports – L3 – managed
Enclosure Type Rack-mountable 1U
Subtype 100 Gigabit Ethernet
Ports 4 x 100 Gigabit QSFP28 + 18 x 10 Gigabit / 25 Gigabit SFP28
Performance Switching capacity: 1.7 Tbps<br>Processing rate: 2.52 Bpps<br>Cut-through latency: 300 ns
Remote Management Protocol SNMP, Telnet, SSH, CLI
Authentication Method RADIUS, TACACS+, LDAP
Features IGMP snooping, port mirroring, IPv6 support, RSTP support, VRRP support, MSTP support, DCBX support, ACL support, QoS, BFD, IPv4 support, LLDP support, DHCP relay, sFlow v5, 802.1x authentication, 16MB packet buffer, OpenFlow support, Protocol-based VLANs support, Storm Control, RoCE, RED, ECN, PFC, VXLAN, MLAG, OSPF, Root Guard, Loop Guard, Voice VLAN, ToR, STP BPDU Guard, BPDU Filter, PIM
Compliant Standards X.509
RAM 8 GB
Flash Memory 16 MB
Status Indicators System, status
Expansion / Connectivity Interfaces<br>18 x 10/25Gbit LAN SFP28<br>4 x 100Gbit LAN QSFP28<br>1 x USB Type A<br>1 x management RJ-45<br>1 x console RJ-45
Power Power Device<br>Internal power supply – hot-plug<br>Installed Qty<br>2<br>Max Supported Qty<br>2<br>Power Redundancy<br>Yes<br>Power Redundancy Scheme<br>1+1<br>Voltage Required<br>AC 120/230 V (50/60 Hz)<br>Power Consumption Operational<br>57 Watt
Features Power-to-port airflow
Miscellaneous Included Accessories<br>2 power cords (C13 to C14)<br>Cables Included<br>1 x serial cable<br>Rack Mounting Kit<br>Optional<br>Compliant Standards<br>EMC, FIPS 140-2, X.509, EN 61000-4-5:2006, EN 61000-4-11:2004, UL 60950-1:2007, EN 61000-3-3:2013, EN 55024:2010, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-6:2014, EN 61000-3-2:2014, IEC60950-1:2005, Second edition + Am1:2009 + Am2:2013, VCCI V-3/2015.04 Class A, EN 55032:2012 Class A, ICES-003:2016 issue 6 Class A, LV, TR CU 020/2011, TR CU 004/2011, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011+A2:2013, CAN/CSA C22.2 No. 60950-1:2007+A1:2011+A2:2014, DSTU EN 55032:2014, DSTU EN 60950-1:2014, EN 61000-4-2:2002, EN 61000-4-4:2004+A1:2010, FCC CFR47 Part 15 B 2017 Class A, AS/NZS CISPR32:2015 Class A, KN22:2009 Class A, KN24:2009
Dimensions & Weight Width<br>17.3 in<br>Depth<br>20 in<br>Height<br>7.9 in<br>Weight<br>9.99 lbs
