AED127,199.00

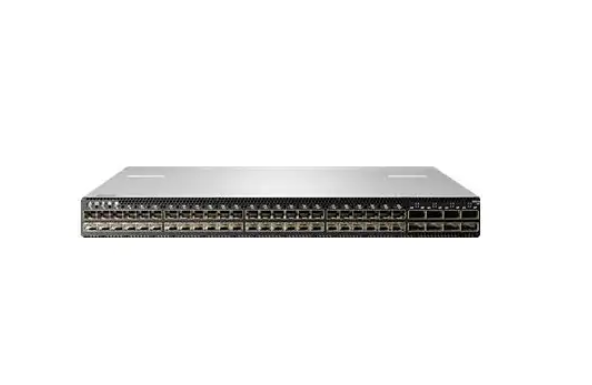

Optimize transfer of data performance in demanding environments using the HPE Sn2410M 25GbE 48SFP28 8QSFP28 Power to Connector Airflow Switch. The ToR data center switch provides two different configurations of one rack unit with 48-port 25 GbE SFP28 and an 8-port 100 GbE QSFP28. You can use the other form factor of a one rack unit with 48-port 10GbE SFP+ and an 8-port 100 GbE QSFP28. The HPE SN2410M switch offers 100Gbe per switch and is able to split into four 25GbE to support up to 40GbE.
The Ethernet 25gbe switch has a variety of ports which allows it to send data at many different speeds. The various types of ports allow users to cut costs and simplify usage. Configuration of the ports improves speed connectivity and allows for blocking ratios. This switch is compatible with flash storage as it has a low latency of under 300ns port to port.
| Category | Details |
|---|
| Overview |
| Brand | HPE |
| Product Line | HPE StoreFabric |
| Model | SN2410M 25GbE 48SFP28 8QSFP28 |
| Manufacturer | Hewlett-Packard |
| Memory |
| Flash Memory Installed | 32 megabyte |
| RAM Installed | 8 GB |
| Network & Communication |
| Advanced Switching | Layer 3 |
| Compliant Standards | X.509 |
| Features | 16MB packet buffer, 802.1x authentication, ACL support, BFD, BPDU Filter, DCBX support, DHCP relay, ECN, Hot swap fan tray, IGMP snooping, IPv4/IPv6 support, LLDP support, Loop Guard, MLAG, MSTP support, OSPF, OpenFlow support, Port mirroring, PFC, PIM, Protocol-based VLANs support, QoS, RED, RSTP support, RoCE, Root Guard, sFlow v5, Store and forward, Storm Control, STP BPDU Guard, ToR, VXLAN, VRRP support, Voice VLAN |
| Form Factor | Rack-mountable |
| Manageable | Yes |
| Ports | 48 |
| Product Type | Switch |
| Remote Management | CLI, SNMP, SSH, Telnet |
| Status Indicators | Fan, Status, System |
| Subcategory | Fibre Channel and SAN |
| Switching Type | 25 Gigabit Ethernet |
| Connectivity |
| Interface Provided | 1 x console RJ-45, 1 x USB Type A, 2 x management, 48 x 25Gbit LAN SFP28, 8 x 100Gbit LAN QSFP28 |
| Port Quantity | 48 |
| Port Type | 25 Gigabit SFP28 |
| Ports Type (2nd) | 100 Gigabit QSFP28 |
| Power |
| Features | Power-to-port airflow |
| Frequency | 50/60 hertz |
| Hot-Plug | Hot-plug |
| Power Consumption Operational | 165 watt |
| Power Provided | 460 watt |
| Power Supplies Installed | 2 |
| Power Supplies Supported | 2 |
| Redundant Power Supply | Yes |
| Redundant Power Supply Supported | 1+1 |
| Technical Information |
| Max Operating Temperature | 104°F (40°C) |
| Min Operating Temperature | 32°F (0°C) |
| Operating Humidity | 10 – 85% (non-condensing) |
| Product Information |
| Authentication Method | LDAP, RADIUS, TACACS+ |
| Device Type | Internal power supply |
| Packaged Quantity | 1 |
| Performance | Cut-through latency: 300 ns, Processing rate: 5.95 Bpps, Switching capacity: 4 Tbps |
| Ports (2nd) Quantity | 8 |
| Rack Mounting Kit | Included |
| Included Items |
| Cables | 1 x serial cable |
| Included Accessories | 2 power cords (C13 to C14), 2 x PSU cable retainer kit, 4 intake fan trays, Fixed rack mount kit |
| Dimensions & Weight |
| Height | 1.7 inch |
| Height (Rack Units) | 1 |
| Weight | 18.78 lbs |
| Width | 17.2 inch |
| Depth | 17.2 inch |
| Physical Characteristics |
| Color Category | Black |
| Certifications & Listings |
| Compliant Standards | AS/NZS CISPR32:2015 Class A, CAN/CSA C22.2 No. 60950-1:2007+A1:2011+A2:2014, DSTU EN 55032:2014, DSTU EN 60950-1:2014, EMC, EN 55024:2010, EN 55032:2012 Class A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011+A2:2013, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-4-11:2004, EN 61000-4-2:2002, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2014, FCC CFR47 Part 15 B 2017 Class A, FIPS 140-2, ICES-003:2016 issue 6 Class A, IEC60950-1:2005, Second edition + Am1:2009 + Am2:2013, KN22:2009 Class A, KN24:2009, LV, TR CU 004/2011, TR CU 020/2011, UL 60950-1:2007, VCCI V-3/2015.04 Class A, X.509 |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
