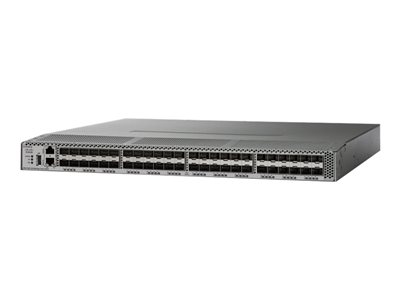

Are you looking for a high-performance Fibre Channel switch for departments, enterprises, or the edge? The HPE StoreFabric SN6010C Fibre Channel Switch is a high-performance, flexible, cost-effective platform providing high-density, 16 Gb/s ports for storage networking deployments in small, medium-sized, and large enterprise environments. This switch offers outstanding value by providing high-availability, security, and ease of use at a cost-effective price in a compact one-rack-unit (1RU) form factor. With the flexibility to expand from 12 to 48 ports in 12-port increments, offering the densities required to scale from an entry-level departmental switch to top-of-the-rack switch to edge connectivity in enterprise SANs. This switch delivers a non-blocking architecture, with all 48 4/8/16-Gb/s ports operating at line rate concurrently. With dual redundant hot-swappable power supplies and fan trays, this switch offers high availability scalable to mission-critical deployments.
switch ports
HPE StoreFabric SN6010C – switch – 12 ports – managed – rack-mountable
HPE StoreFabric SN6010C – Switch – managed – 12 x 16Gb Fibre Channel SFP+ – rack-mountable
AED25,799.00
Device Type | Switch – 12 ports – managed |
Enclosure Type | Rack-mountable 1U |
Subtype | Fibre Channel |
Ports | 12 x 16Gb Fibre Channel SFP+ |
Performance | Aggregate bandwidth: 192 Gbps |
Fibre Channel | FC-AL, FC-AL-2, FC-BB, FC-DA, FC-FLA, FC-FS, FC-GS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5 |
Remote Management Protocol | SNMP, SNMP 3, SMI-S, CLI |
Encryption Algorithm | AES |
Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Features | Trunking, Syslog support, LUN zoning, Quality of Service (QoS), redundant hot swappable fans, MAC and IP-based ACLs support |
Expansion / Connectivity | |
Interfaces | 12 x 16Gb Fibre Channel SFP+ <br> 1 x management (Gigabit LAN) <br> 1 x management (RS-232) |
Power | |
Power Device | Internal power supply – hot-plug |
Installed Qty | 2 |
Max Supported Qty | 2 |
Power Redundancy | Yes |
Power Provided | 300 Watt |
Voltage Required | AC 120/230 V (50/60 Hz) |
Miscellaneous | |
Compliant Standards | ETSI, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, AS/NZS 60950, IEC 60825, VCCI Class A, KN24, AS/NZS CISPR 22, ETSI 300 019, CAN/CSA-C22.2 No. 60950-1 |
Localization | English / United Kingdom |
Software / System Requirements | |
Software Included | Cisco Data Center Network Manager |
OS Required | Cisco MDS 9000 NX-OS 6.2(9) or later |
Dimensions & Weight | |
Width | 17.2 in |
Depth | 18.9 in |
Height | 1.8 in |
Weight | 22.05 lbs |
Environmental Parameters | |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 10 – 85% (non-condensing) |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
