HPE Synergy 6820C – network adapter – PCIe 3.0 x16 Mezzanine – 50 Gigabit Ethernet x 2

Add to Wishlist

HPE Synergy 6820C – Network adapter – PCIe 3.0 x16 Mezzanine – 50 Gigabit Ethernet x 2 – for Synergy 480 Gen10, 660 Gen10; Synergy 12000 Frame

AED7,199.00

Add to Wishlist

Do you want to improve your performance and bandwidth without increasing your hardware complexity?

The HPE Synergy 6820C 25/50Gb Ethernet Adapter provides more than two times the bandwidth compared to 10/20Gb adapters. Therefore, it simplifies hardware implementation by reducing the number of adapters, associated switches and compute modules required to achieve higher bandwidth.

The networking acceleration on this adapter alleviates the CPU utilization, increases the number of virtual machines (VMs) placed on each server, and improves the cloud scale efficiency. Pairing with the HPE Synergy high-density 50G Ethernet switching solution, this adapter provides high throughput and low latency to implement intelligent and flexible networks.

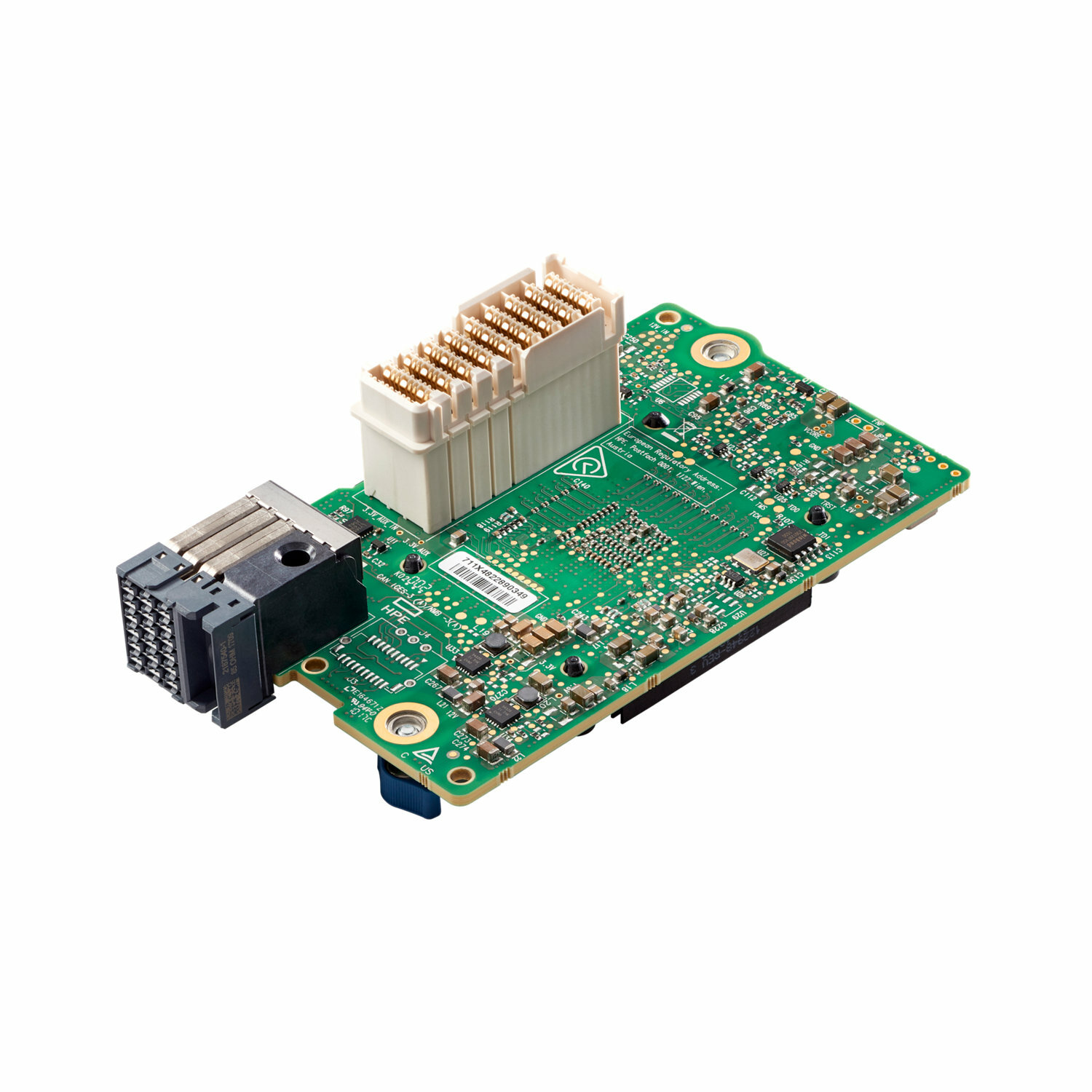

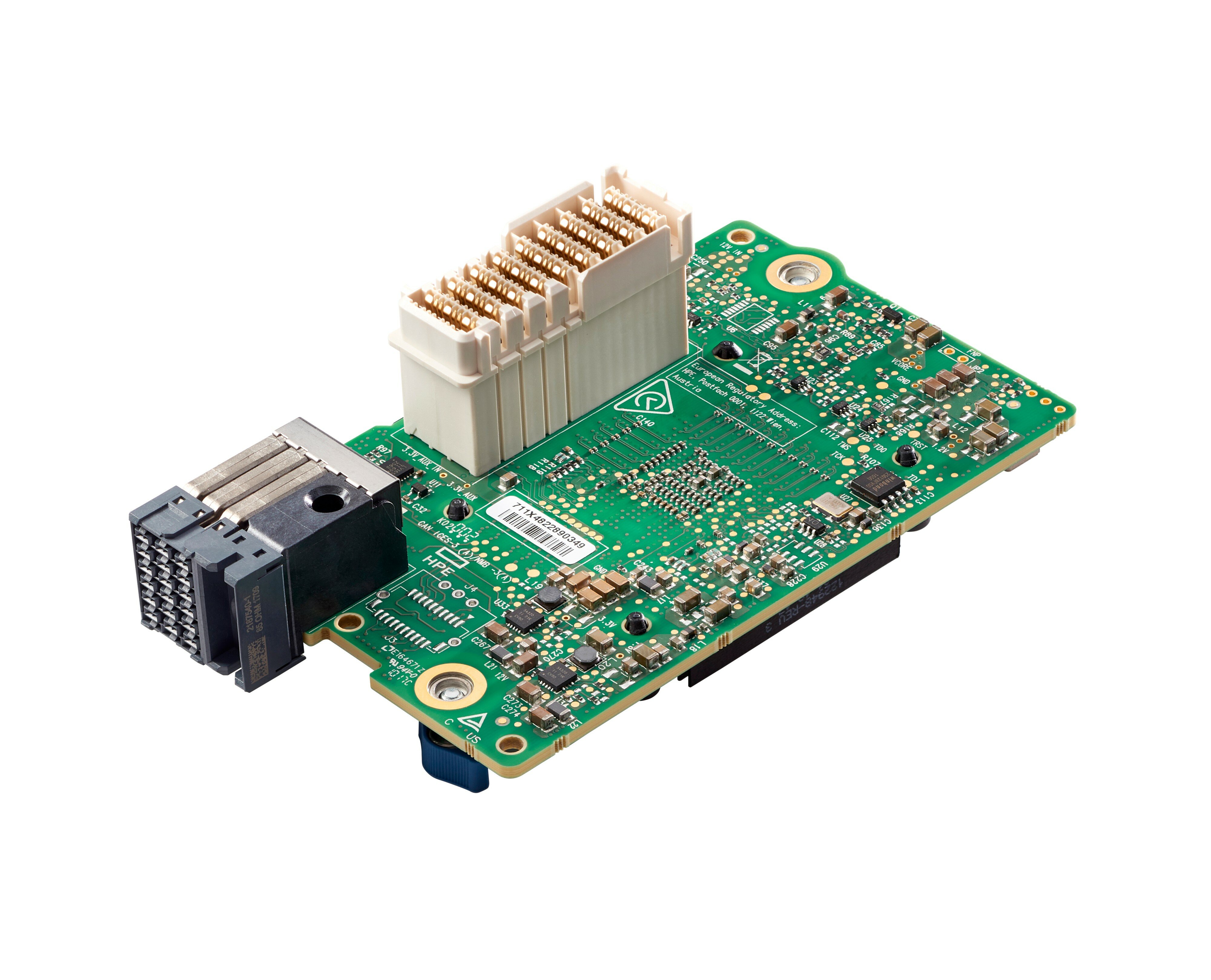

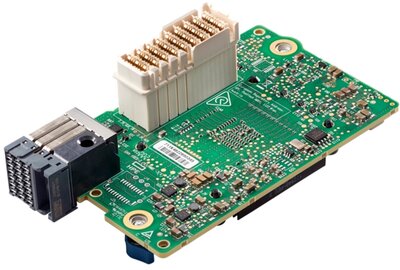

HPE Synergy 6820C 25/50Gb Converged Network Adapter

Do you want to improve your performance and bandwidth without increasing your hardware complexity? The HPE Synergy 6820C 25/50Gb Ethernet Adapter provides more than two times the bandwidth compared to 10/20Gb adapters. Therefore, it simplifies hardware implementation by reducing the number of adapters, associated switches and compute modules required to achieve higher bandwidth. The networking acceleration on this adapter alleviates the CPU utilization, increases the number of virtual machines (VMs) placed on each server, and improves the cloud scale efficiency. Pairing with the HPE Synergy high-density 50G Ethernet switching solution, this adapter provides high throughput and low latency to implement intelligent and flexible networks.
HPE Synergy 6820C 25/50Gb Converged Network Adapter

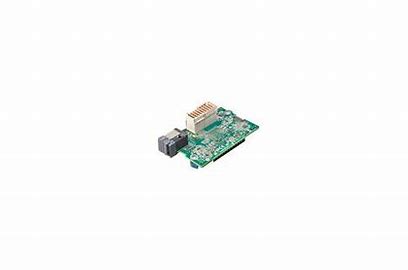

slide 1 of 1, show larger image, hpe synergy 6820c 25/50gb converged network adapter
Provide High Performance and Low Latency

Provide High Performance and Low Latency

  • The HPE Synergy 6820C 25/50Gb Ethernet Adapter delivers single root I/O virtualization (SR-IOV) with the ability to run a large number of VMs per server, which reduces the need for hardware and and the resultant costs for space and power that hardware devices require.
  • Reduces CPU Utilization and helps improve host VM density and server efficiency using remote direct memory access (RDMA) offload with support for iWARP, RDMA over Converged Ethernet (RoCE), and RoCEv2 protocols for Live Migration, Microsoft® SMB Direct environments.
Speed up Network-intensive Applications

Speed up Network-intensive Applications

  • The HPE Synergy 6820C 25/50Gb Ethernet Adapter lessens the total cost of ownership (TCO) and CAPEX by providing 25/50Gb connectivity compared to 10/20Gb connectivity.
  • Offloads packet processing to reduce CPU utilization and lower power with tunnel offloads (VXLAN, GENEVE and NVGRE).
SKU: P02054-B21 1 Category: Tag:
Specification Details
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express 3.0 x16 Mezzanine
PCI Specification Revision PCIe 3.0
Networking
Ports 50 Gigabit Ethernet x 2
Connectivity Technology Wired
Data Link Protocol 25 Gigabit Ethernet, 50 Gigabit Ethernet
Data Transfer Rate 50 Gbps
Capacity Jumbo frame size: up to 9.6 KB
Features
WOL Wake-on-LAN
Jumbo Frames support Yes
RDMA support Yes
PXE support Yes
RSS Receive-Side Scaling
SR-IOV Single Root I/O Virtualization
PTP Precision Time Protocol
RoCE RDMA over Converged Ethernet
VXLAN Virtual Extensible LAN
RoCE v2 RDMA over Converged Ethernet v2
Secure boot Yes
HPE Sea of Sensors 3D Yes
IPv6 acceleration Yes
VMware NetQueue and Microsoft VMQ Yes
DPDK Yes
iSCSI Extensions over RDMA (iSER) Yes
Active Health Systems support Yes
Compliant Standards
IEEE 802.1Q VLAN Tagging
IEEE 802.1p Traffic prioritization (Quality of Service)
IEEE 802.3ad (LACP) Link Aggregation Control Protocol
IEEE 802.1as Timing and Synchronization for Time-Sensitive Applications
IEEE 802.1Qbb Priority-based Flow Control (PFC)
IEEE 802.1Qaz Enhanced Transmission Selection (ETS)
IEEE 802.3by 25 Gigabit Ethernet
IEEE 802.3-2012 IEEE Standard for Ethernet
Processor / Memory
Processor 1 x Cavium QL45604
Expansion / Connectivity
Interfaces 2 x 50Gb Ethernet
Dimensions & Weight
Width 9.7 in
Depth 2.4 in
Height 8.5 in
Weight 9.17 oz
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 158 °F
Humidity Range Operating 10 – 90% (non-condensing)
Compatibility Information
Designed For HPE Synergy 480 Gen10 Base Compute Module, 480 Gen10 Compute Module, 480 Gen10 Entry Compute Module, 480 Gen10 Performance Compute Module, 480 Gen10 Plus Base Compute Module, 480 Gen10 Premium Backplane Compute Module, 480 Gen10 Standard BackPlane Compute Module, 480 Gen10 w/o Drives Compute Module, 660 Gen10 Base Compute Module, 660 Gen10 Compute Block, 660 Gen10 Compute Module, 660 Gen10 Entry Compute Module, 660 Gen10 Performance Compute Module, 660 Gen10 Premium Compute Module, HPE Synergy 12000 Frame
