Huawei S5720S-28P-SI-AC(24 Ethernet 10/100/1000 ports,4 Gig SFP,AC 110/220V)



S5720S-28P-SI-ACĀ Overview

Huawei S5720S-28P-SI-AC switch is next-generation standard gigabit Layer 3 Ethernet switch based on a new generation of high-performance hardware and Huawei Versatile Routing Platform (VRP). It provides large switching capacity and high-density GE and 10 GE uplink interfaces for users. With 24 Ethernet 10/100/1,000 ports and 4 x 10 Gig SFP, the S5720S-28P-SI-AC can be used as access or aggregation switch on campus networks or access switch in data centers. The S5720S-28P-SI-AC integrates many advanced technologies in terms of reliability, security, and energy savings to build next-generation IT networks.

Quick SpecsĀ Ā Ā Ā Ā

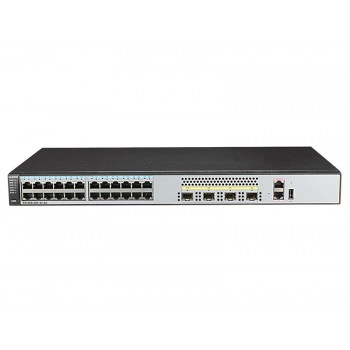

Figure 1 shows the appearance of HuaweiĀ S5720S-28P-SI-ACĀ switch.

S5720S-28P-SI-AC

Table 1 shows the Quick Specs.

Product CodeĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  S5720S-28P-SI-AC
Fixed Ports 24 Ethernet 10/100/1,000 ports

4 x 10 Gig SFP
Extended Slots NA
Memory (RAM) 512 MB
Flash 240 MB
MAC Address Table Size

Forwarding Performance

 16 MAC
Forwarding Performance 42 Mpps
Switching Capacity 336 Gbit/s
Power Supply AC power supply, supporting RPS
Voltage Required AC:
Rated voltage range: 100V to 240V, 50 Hz/60 Hz
Maximum voltage range: 90V to 264V, 50 Hz/60 Hz
Typical Power Consumption 20.2W
Dimensions (W x D x H) 442 mm x 220 mm x 43.6 mm
Weight 4.75 kg

Product Details

Figure 2 shows the front panel of Huawei S5720S-28P-SI-ACĀ switch.

S5720S-28P-SI-AC front

Note:

ā‘  Twenty-four 10/100/1000BASE-T ports ā‘” Four 1000BASE-X ports
ā‘¢ ETH management port ā‘£ One USB port
ā‘¤ One console port

*The console port is used with a console cable. The console cable is not delivered with the switch and needs to be separately purchased if needed.

Figure 3 shows the back panel of Huawei S5720S-28P-SI-ACĀ switch.

S5720S-28P-SI-AC back

Note:

ā‘  Ground screw ā‘” RPS socket
ā‘¢ Jack for AC terminal locking latch ā‘£ AC socket

* The ground screw is used with aĀ ground cable.

* RPS socket is used with anĀ RPS cable, which is not hot swappable.

* The AC terminal locking latch is not delivered with the switch.

* AC socket is used with anĀ AC power cable.

SKU: S5720S-28P-SI-AC Category: Tags: , ,

S5720S-28P-SI-ACĀ Specification

S5720S-28P-SI-AC Specification
Fixed Ā Ports 24 x Ethernet 10/100/1,000 ports

P series: 4 x Gig SFP

X series: 4 x 10 Gig SFP+
Extended Slot N/A
MAC Address Table IEEE 802.1d compliance
16K MAC address entries
MAC address learning and aging
Static, dynamic, and black hole MAC address entries
Packet filtering based on source MAC addresses
VLAN 4K VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN Mapping
Ring Protection RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
SEP
ERPS (G.8032)
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection
IP Routing Static route, RIPv1, RIPv2, RIPng, ECMP, OSPF, OSPFv3, BGP, BGP4+, IS-IS, IS-ISv6, VRRP, and VRRP6
IPv6 Features Neighbor Discovery (ND)
Path MTU (PMTU)
IPv6 ping, IPv6 tracert, and IPv6 Telnet
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
MLD v1/v2 snooping
6to4 tunnel, ISATAP tunnel, and manually configured tunnel
Multicast PIM DM, PIM SM, PIM SSM
IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Port-based multicast traffic statistics
QoS/ACL Rate limiting on packets sent and received by an interface
Packet redirection
Port-based traffic policing and two-rate three-color CAR
Eight queues on each port
WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms
Re-marking of the 802.1p priority and DSCP priority
Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source
MAC address, destination MAC address, source IP address, destination IP address
TCP/UDP port number, protocol type, and VLAN ID
Rate limiting in each queue and traffic shaping on ports
Security User privilege management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface, and VLAN
Port isolation, port security, and sticky MAC
Blackhole MAC address entries
MAC Forced Forwarding (MFF)
Limit on the number of learned MAC addresses
802.1x authentication and limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC
SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense
Blacklist and whitelist
802.1x authentication, MAC address authentication, and combined authenticationĀ on a per port basis
Portal authentication on a per VLANIF interface basis
MACSec
Super Virtual Fabric (SVF) Working as an SVF client that is plug-and-play with zero configuration
Automatically loading the system software package and patches of clients
One-click and automatic delivery of service configurations
Supports independent running client
Management and Maintenance iStack
Virtual cable test
SNMP v1/v2c/v3
RMON
Web-based NMS
System logs and alarms of different levels
sFlow
Interoperability Supports VBST (Compatible with PVST/PVST+/RPVST)

Supports LNP (Similar to DTP)

Supports VCMP (Similar to VTP)
Surge Protection Surge protection capability of service ports: 6 kV
Operating Environment Operating temperature:
Zero to 1,800m altitude: 0Ā°CĀ to 45Ā°C
1,800m to 5,000m altitude: Operating temperature reduces by 1Ā°C for every 220m increase in altitude
Relative humidity: 5% to 95% (non-condensing)
Input Voltage AC:
Rated voltage range: 100V to 240V, 50 Hz/60 Hz
Maximum voltage range: 90V to 264V, 50 Hz/60 Hz
Dimensions (W x D x H) 442 mm x 220 mm x 43.6 mm
Typical Power Consumption 20.2W
