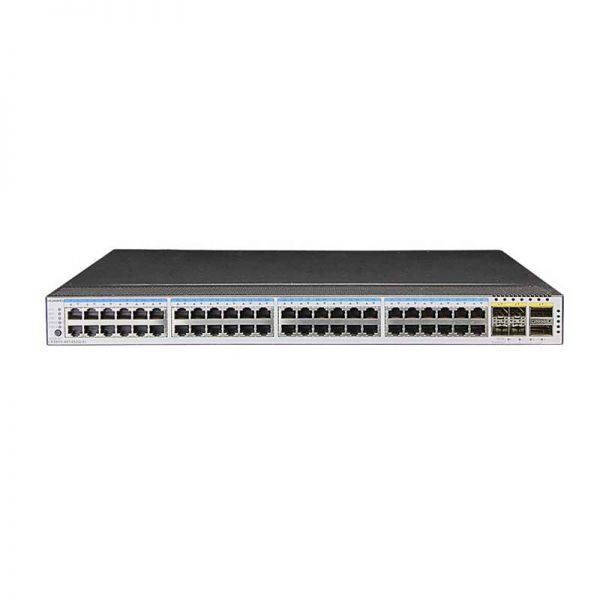

| Model: | Huawei CE5855-48T4S2Q-EI Switch(48-Port GE RJ45,4-Port 10G SFP+,2-Port 40G QSFP+,2*FAN Box,Port-side Intake,Without Power Module) |
| Detail: |
Huawei CE5855-48T4S2Q-EI Switch(48-Port GE RJ45,4-Port 10G SFP+,2-Port 40G QSFP+,2*FAN Box,Port-side Intake,Without
|
AED15,399.00
Huawei CE5855-48T4S2Q-EI-B provides 48 * GE line-speed ports plus 4 * 10 GE and 2 * 40G upstream ports for stacking up to 16 switches. 10 GE and 40G ports enable creation of a non-blocking stack that can extend across geographical distances between data centers. Using the Huawei VRP8 software platform, CE5800 switches support Transparent Interconnection of Lots of Links (TRILL) and have a high stacking capability (up to 16-member switches in a stack system). In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE5800 switches can work with CE12800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers. CE5800 switches provide high-density GE access to help enterprises build a scalable data center network platform for cloud computing. They can also be used as aggregation or access switches for enterprise campus networks.
Table 1 shows the Quick Specs.
| Product Code | CE5855-48T4S2Q-EI-B |
| Software Version | V100R005C10 and later |
| Base-T Ports | Ā 48 |
| SFP+ Ports | 4 |
| QSFP+ Ports | 2 |
| Switching Capacity | 336 Gbit/s |
| Forwarding Rate | 252 Mpps |
| Power module type | Pluggable AC or DC power module, 1+1 backup supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz
-48 V DC to -60 V DC |
| Maximum power consumption | 103W |
| Airflow | Front-to-back or back-to-front, depending on the fan modules and power modules used in the chassis |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Weight (fully loaded) | 8.4 kg (18.5 lb) |
Note:
| ā | Forty-eight 10/100/1000BASE-T Ethernet electrical ports |
| ā” | Four 10GE SFP+ Ethernet optical ports |
| ā¢ | Two 40GE QSFP+ Ethernet optical ports |
Note:
| ā | Power supply slot 1 |
| ā” | Fan slot 1 |
| ā¢ | Console port |
| ā£ | Barcode label |
| ā¤ | Fan slot 2 |
| ā„ | Power supply slot 2 |
| ā¦ | USB port |
| ā§ | ETH management port (RJ45) |
CE5855-48T4S2Q-EI-B Specifications |
|
| Base-T Ports | Ā 48 |
| SFP+ Ports | Ā 4 |
| QSFP+ Ports | Ā 2 |
| Switching Capacity | 336 Gbit/s |
| Forwarding Rates | 252 Mpps |
| Airflow Design | Front-to-back or back-to-front |
| Device Virtualization | iStack |
| Super Virtual Fabric (SVF) | |
| Network Virtualization | M-LAG |
| TRILL (CE5855 & CE5850) | |
| Programmability | Open Programmability System (OPS) |
| Traffic Analysis | NetStream |
| sFlow | |
| VLAN | Adding access, trunk, and hybrid interfaces to VLANs |
| Default VLAN | |
| QinQ | |
| MUX VLAN | |
| GVRP | |
| ACL | ingress: 9k egress: 2k |
| MAC Address Table | maximum: 64k |
| Dynamic learning and aging of MAC addresses | |
| Static, dynamic, and black hole MAC address entries | |
| Packet filtering based on source MAC addresses | |
| MAC address limiting based on ports and VLANs | |
| ARP (maximum) | 54k |
| ND (Maximum) | 16k |
| IPv4 FIB (maximum) | 32k |
| IP Routing | IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
| IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+ | |
| IPv6 FIB (maximum) | 16k |
| IPv6 | IPv6 Neighbor Discovery (ND) |
| Path MTU Discovery (PMTU) | |
| TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6 | |
| Multicast FIB (maximum) | 2k |
| Multicast | IGMP, PIM-SM, PIM-DM, MSDP, and MBGP |
| IGMP snooping | |
| Fast leave of multicast member interfaces | |
| Multicast traffic suppression | |
| Multicast VLAN | |
| Reliability | LACP |
| STP, RSTP, VBST, MSTP | |
| BPDU protection, root protection, and loop protection | |
| Smart Link and multi-instance | |
| DLDP | |
| ERPS (G.8032) | |
| VRRP, VRRP load balancing, and BFD for VRRP | |
| BFD for BGP/IS-IS/OSPF/Static route | |
| QoS | Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority |
| Actions of ACL, CAR, re-marking, and scheduling | |
| Queue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR | |
| Congestion avoidance mechanisms, including WRED and tail drop | |
| Traffic shaping | |
| Configuration and Maintenance | Console, Telnet, and SSH terminals |
| Network management protocols, such as SNMP v1/v2c/v3 | |
| File upload and download through FTP and TFTP | |
| BootROM upgrade and remote upgrade | |
| 802.3az Energy Efficient Ethernet (EEE) | |
| Hot patches | |
| User operation logs | |
| Zero-Touch Provisioning (ZTP) | |
| Security and Management | 802.1x authentication |
| Command line authority control based on user levels, preventing unauthorized users from using commands | |
| DoS, ARP, and ICMP attack defenses | |
| Port isolation, port security, and sticky MAC | |
| Binding of the IP address, MAC address, interface number, and VLAN ID | |
| Authentication methods, including AAA, RADIUS, and HWTACACS | |
| Remote Network Monitoring (RMON) | |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Weight (fully loaded) | 8.4 kg (18.5 lb) |
| Environmental Parameters | Operating temperature: 0Ā°C to 40Ā°C (32Ā°F to 104Ā°F) (0m to 1,800m) |
| Storage temperature: -40Ā°C to 70Ā°C (-40Ā°F to 158Ā°F) | |
| Relative humidity: 5%Ā to 95%, non-condensing | |
| Operating Voltage | AC: 90V to 264V |
| DC: -38.4V to -72V | |
| Maximum Power Consumption | 103W |
